3.10 Wheel
3.10.1 Changingthewheel
3.10.1.1 Wheelwithaxlenuts*
Removing the rear wheel
1. Remove the pedelec battery.
2. Change the gear to the one recommended by the gear manufacturer for
disassembly.
3. Remove the gear shift cable from the rear wheel.
4. Undo the axle nuts using a 15 mm spanner, turning anticlockwise.
5. Take o the chain.
6. Remove the rear wheel.
Replacing the rear wheel
1. Attach the chain.
2. Insert the rear wheel centrally in the drop-outs as far as it will go.
3. Re-attach the gear shift cable.
4. If necessary, fasten the brake anchor.
5. Tighten the axle nuts using a 15 mm spanner, turning clockwise.
6. Reinsert the battery.
3.10.2 Quick-releasewheels
*

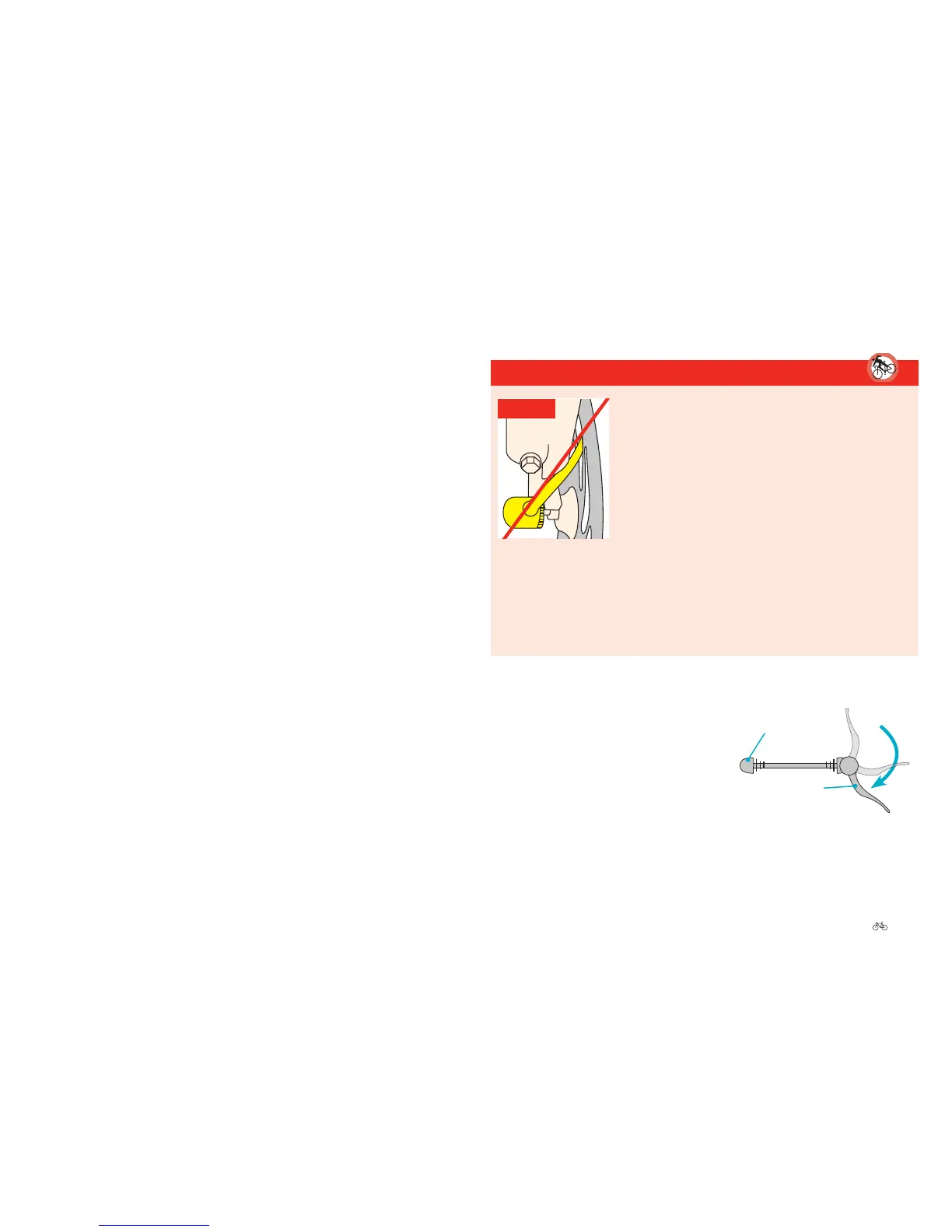

DANGER
Quick-release skewer and
brake disk collide
wrong
Frontwheel:Thequick-releaseskewermustbe
positionedontheoppositesidetothebrakedisc
(wheretted).If the quick-release skewer is on
the same side as the brake disc, there is a risk
that they can clash and lock the front wheel (see
diagram), which can cause a serious accident.
Allquick-releasesystemsmustbecorrectlytightenedbeforeyouseto.
Otherwise the components can loosen – if that happens while riding you
could fall o, resulting in serious injuries.
Removing the front wheel
1. Remove the pedelec battery.
2. Open the axle lever by folding it by
180˚. You will now usually be able to
see the word ‘OPEN’ on the inside of
the lever.
3. Undo the adjustment nut by turning it
slightly anticlockwise.
Quick-release skewer
Adjustment nut
For2. Open the quick-release skewer
*dependent on model
