5.3.1.2Capacity
Capacity indicates the quantity of electric charge that a
battery can deliver or store. It is specied in ampere hours
(Ah). Even when used properly, capacity diminishes over
time due to chemical reactions (ageing). So it reduces with
every charging cycle for example. A battery also ages slightly
when it is not used.
A charging cycle is the complete charging of a battery from 0
to 100% capacity. It follows that not every charging process
equates to a charging cycle. For example, a charge from 50
to 100% capacity is only half a charging cycle.
1. Press the battery button for ve seconds. The maximum available
capacity (state of health) of the battery will be displayed.
Display Description Batterychargelevel
100%

3 – 5 LEDs light up The battery has a capacity
of over 50%.
< 50%

0 – 2 LEDs light up The capacity of the battery
is below 50%.
The battery may need to be replaced when fewer than 3
LEDs light up. Discuss how to proceed with your cycle dealer.

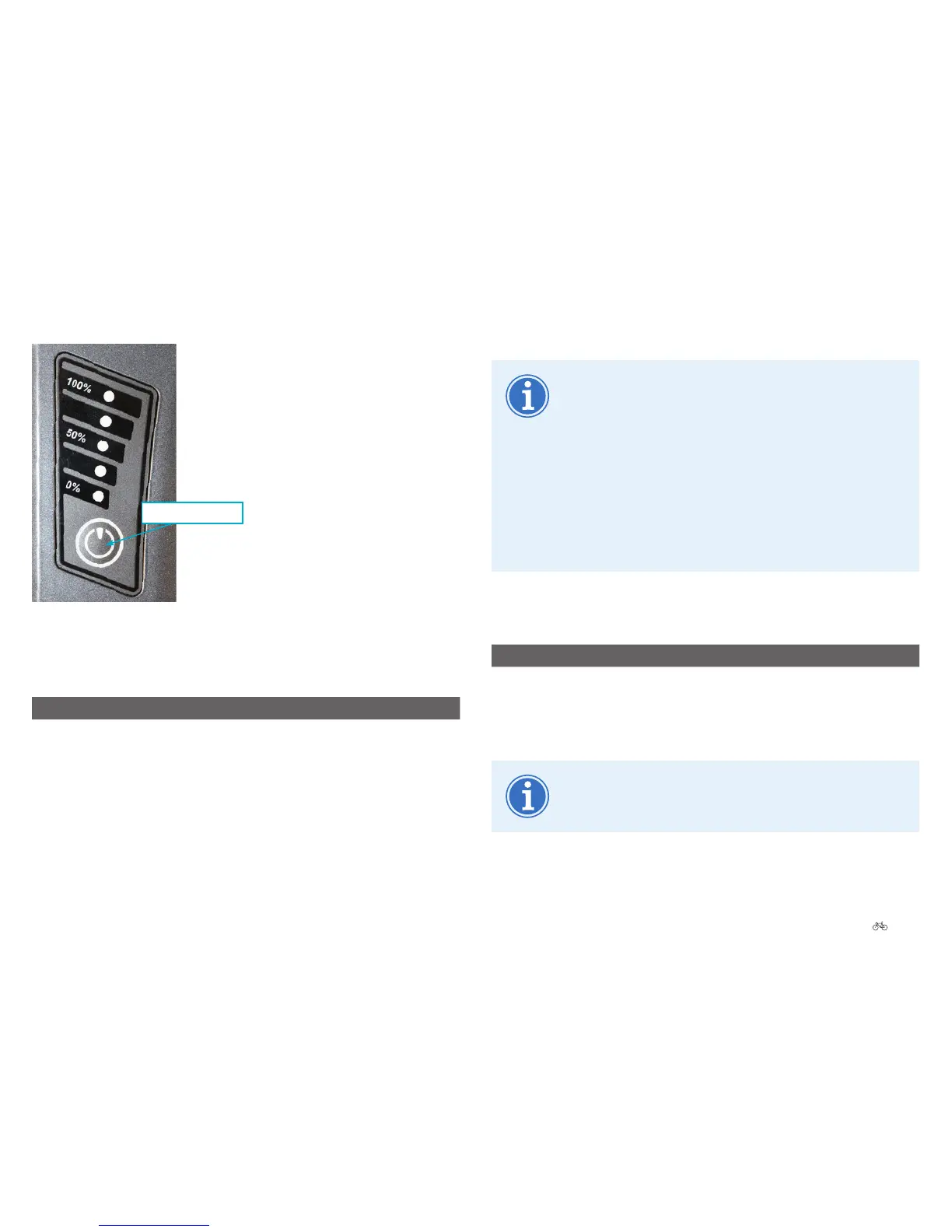

5.3.1 Displaypanel
On the outside of the battery are a button
and a display panel with ve LEDs. Three
LEDs show percentage values. The LEDs
light up when you press the battery button.
The number lighting up, and how, provides
information on the battery.
Battery button
5.3.1.1Batterychargelevel
1. Briey press the battery button in standby mode.
Display Description Batterychargelevel
100%

5 LEDs light up 100 – 84%

4 LEDs light up 83 – 68 %
50 %

3 LEDs light up 67 – 51 %

2 LEDs light up 50 – 34 %
0 %

1 LED lights up 33 – 17 %
0 %

1 LED ashes 17 – 0 %
*dependent on model
