Realtime Technologies Ltd Shimmer User Manual

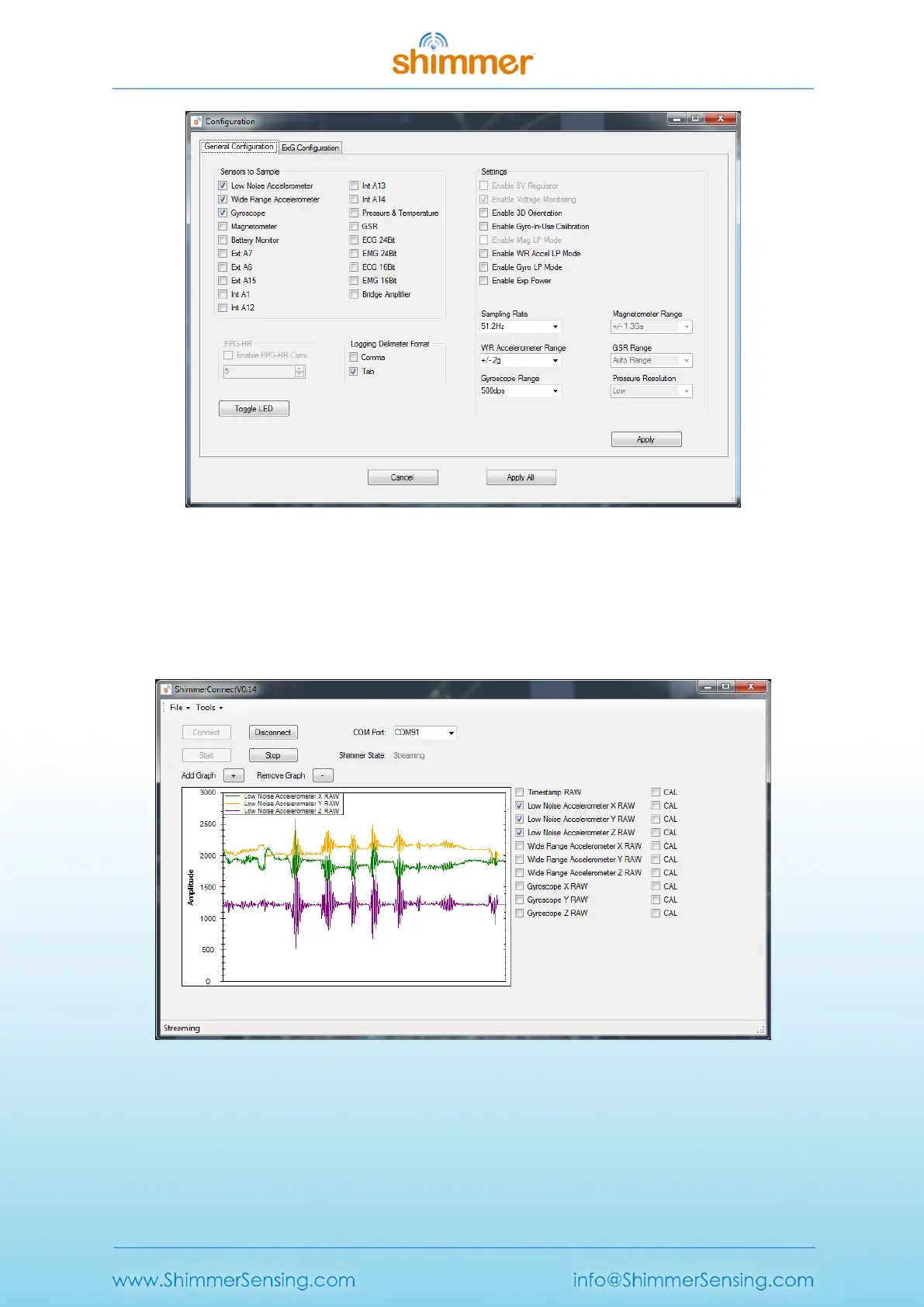

Figure 2-9 Configuring the Shimmer

Stream data from the Shimmer

Press the Start Streaming button to start the Shimmer streaming data to the ShimmerCapture

application. The blue LED on the Shimmer will blink with a 50% duty cycle at a rate of 0.5Hz (1s ON –

1s OFF). The data is displayed on the screen as in Figure 2-10.

Figure 2-10 Shimmer streaming data

Data can be stored to a CSV file by pressing Tools → Save to CSV. To stop transmission, press the

Stop Streaming button. If you press the Disconnect button, it will release the connection to the host

application and remain idle.
