Item
Status / Function
LED Indicator A
Solid Green if a Shimmer is docked
LED Indicator B
Active slot indicator; Solid Blue if SD access, Solid Orange if
UART access
LED Indicator C
Blinks Orange if Base is powered and Consensys software is
running
Power
12V, 5A power supply
USB
USB hub for chained Consensys Bases
Mini USB
For UART communications with the Shimmers in the Base
Table 3-3 Consensys Base features
3.4. Other Accessories and Shimmer Platform Components
3.4.1. Shimmer3 Variations
Shimmer provides sensing units other than the standard Shimmer3 kinematics module including the
Shimmer3 ECG, Shimmer3 EMG, Shimmer3 GSR+, Shimmer3 Bridge Amplifier+ and the Shimmer3
PROTO3 Series. Each sensing unit has a corresponding user guide which details the specifications of
the board, as well as providing information on appropriate use of the board. A copy of each user
guide can be obtained from the folder \Documentation\Hardware User Guides in the Shimmer User
Resources distribution or by downloading it from the Shimmer website.
Power
Mini USB
USB
LED Indicator B
LED Indicator C
LED Indicator A

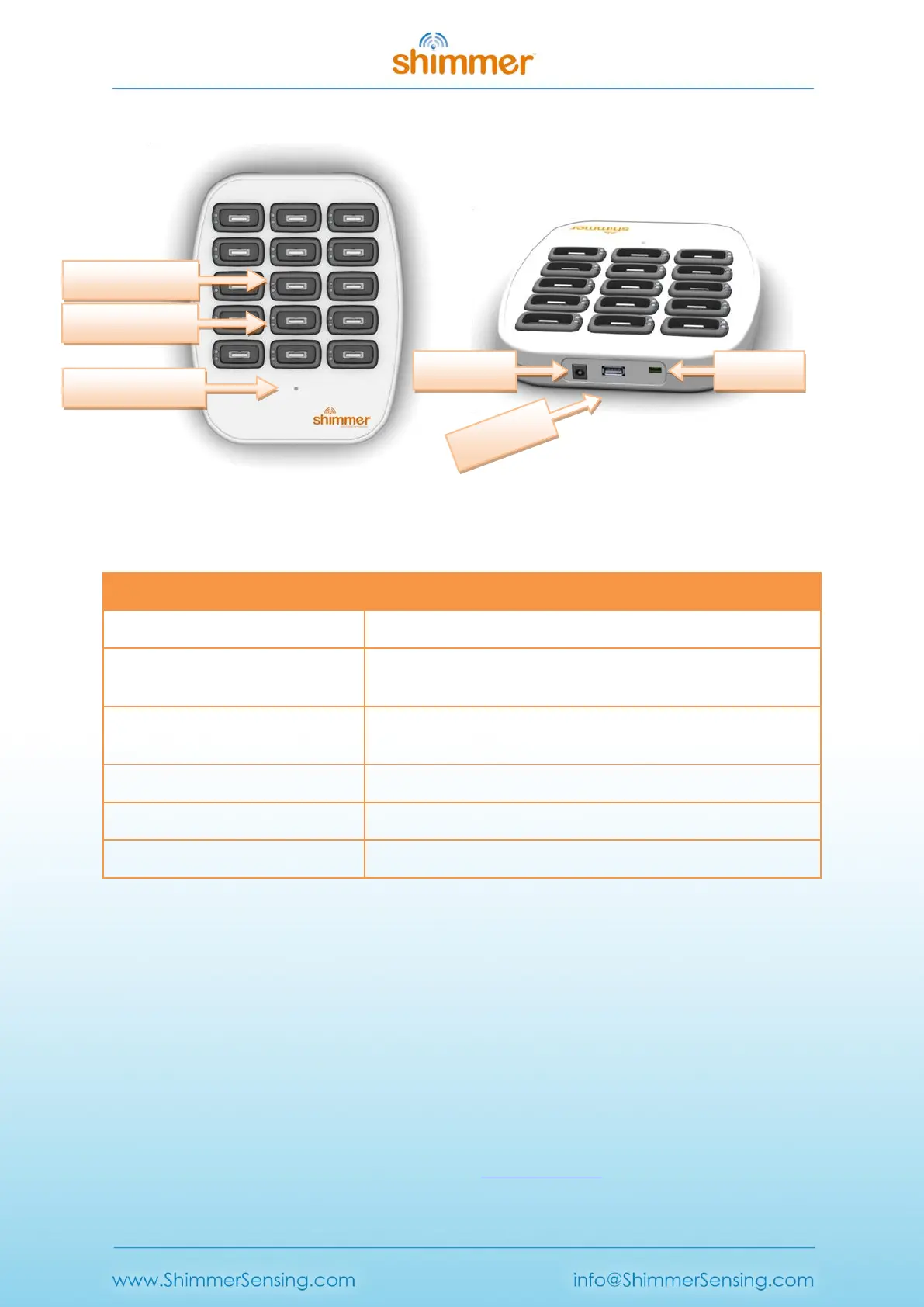

Figure 3-10 Consensys Base – enclosure view
