Copyright © Shimmer 2017
Realtime Technologies Ltd Shimmer User Manual
All rights reserved Rev3p
27
JTAG breakout
connectors
Breakout
connectors

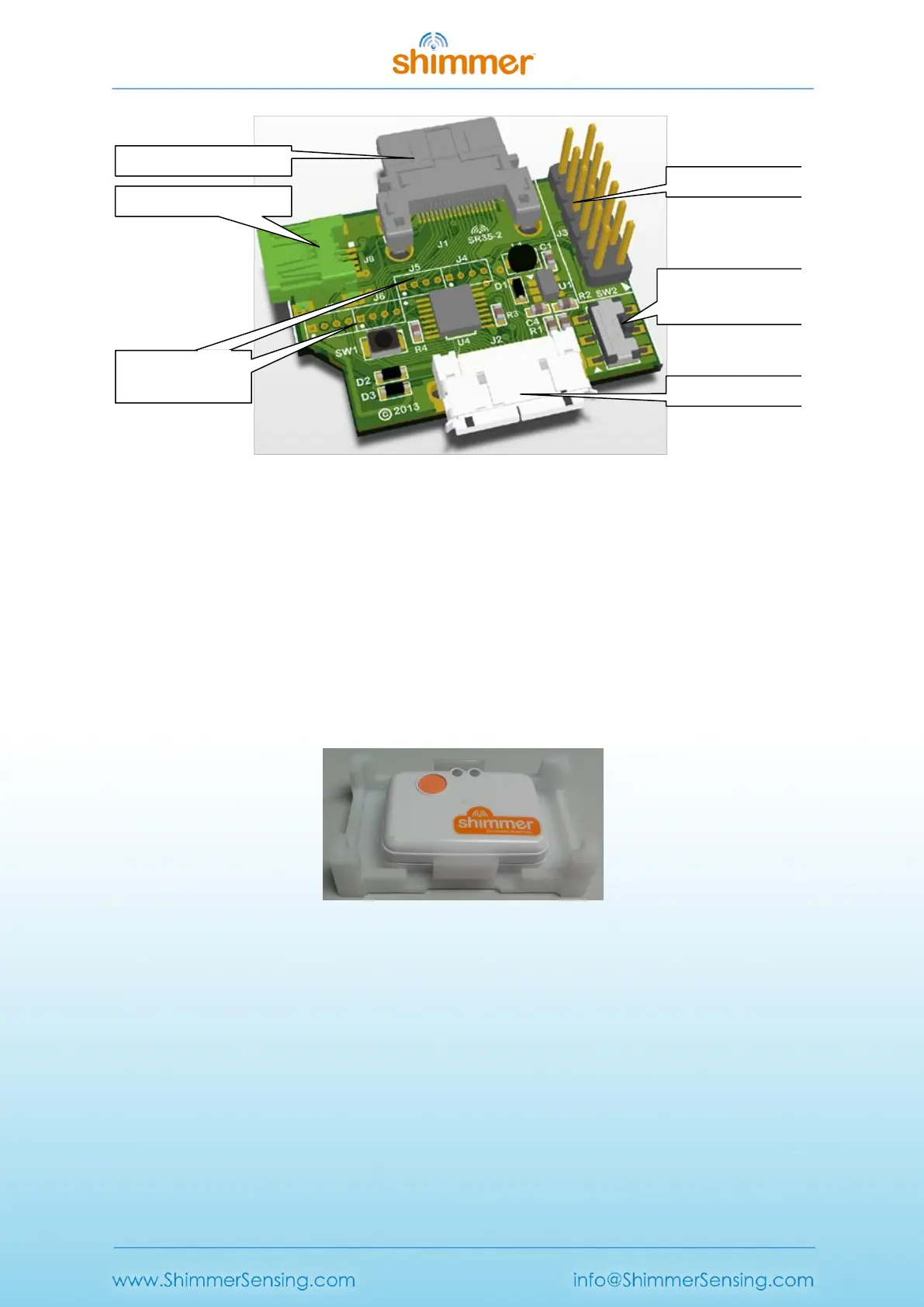

Figure 3-12 Shimmer3 Programming Adapter
When the mode-selection slide switch is down, JTAG is disabled (normal dock operation). When the
switch is up, only power is provided by the dock and various signals are reconfigured to provide a
JTAG port. For more information and pin-out details, please refer to the Shimmer3 JTAG Developer
Board User Guide.
3.4.4. Shimmer3 Calibration Stand
The Shimmer3 Calibration Stand should be used for stabilization of the Shimmer3 during calibration.
Due to the rounded design of the Shimmer3 enclosure, calibration should not be carried out without
the calibration stand, as this will significantly affect the accuracy.
Figure 3-13 Shimmer3 Calibration Stand
To use the Shimmer3 Calibration Stand, simply remove the strap clips from the Shimmer3 and insert
the device into the stand using the clip slots, as shown in Figure 3-13. Ensure that the plastic clip
inserts on the stand are securely inserted into the Shimmer3 clip slots and that that user button is
facing upwards, as illustrated.
3.5. Maintenance
3.5.1. Cleaning
Warning: The Shimmer3 enclosure is not waterproof and should never be submerged or saturated
with fluids during operation or cleaning.
