Shimmer 3 - 5.1.2. SDLog

Copyright © Shimmer 2017
Realtime Technologies Ltd Shimmer User Manual
All rights reserved Rev3p
41
LED Pattern
Description
Docked or Undocked
Standby
Blue 0.1s ON/2s OFF
Bluetooth
Connected
Blue Solid ON
Streaming only
Blue 1s ON / 1s OFF
RTC not set
0.1s Blue/0.1s Green
Undocked only
Configuring
Green 0.1s ON/ 0.1s OFF
SD error
0.1s Red/0.1s Yellow
Logging only
Green 1s ON / 1s OFF
Streaming and
Logging
1s Blue/1s Green

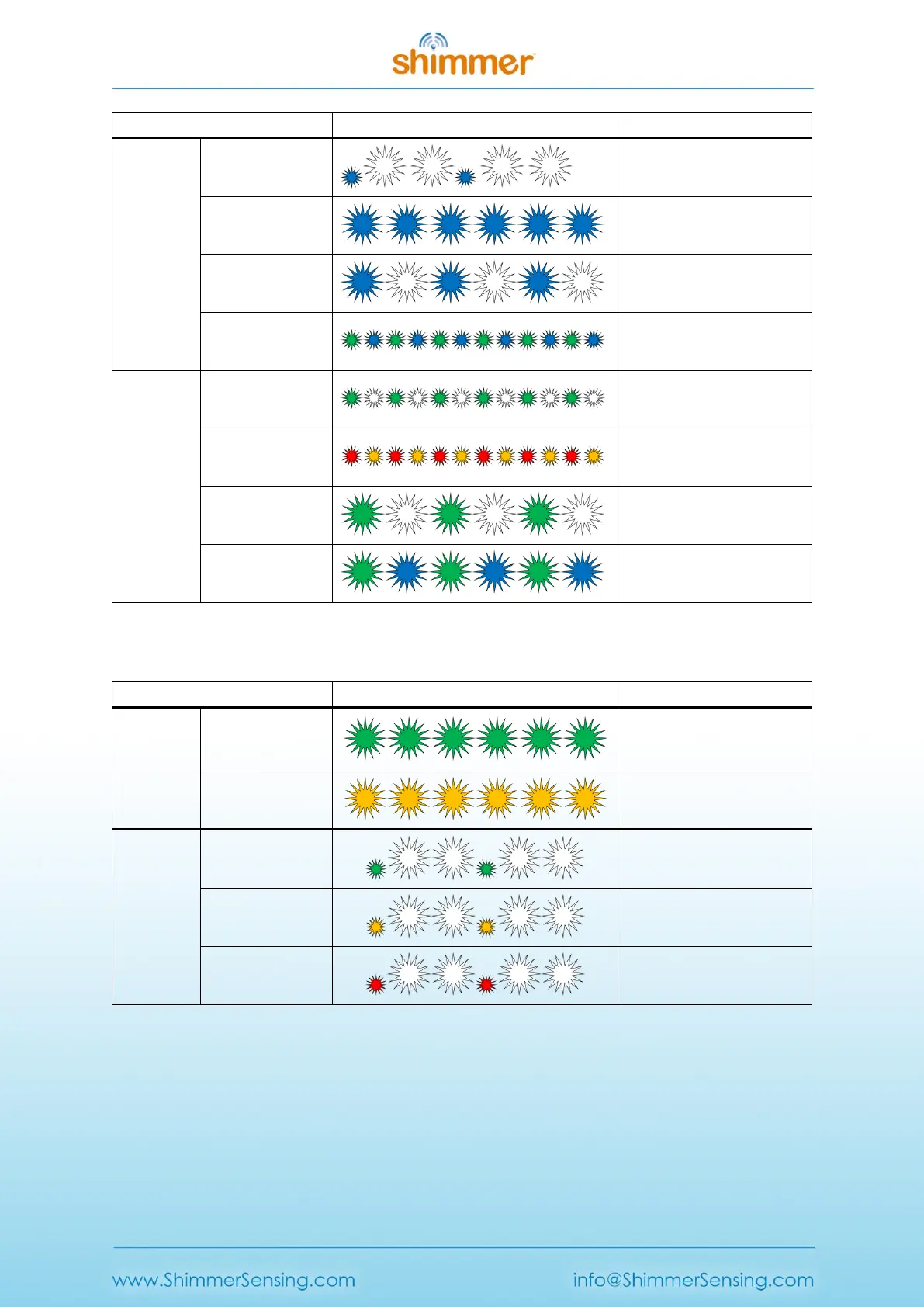

Table 5-1 LED indicators specific to LogAndStream firmware (undocked and docked).
LED Pattern
Description
Docked or in
Multi Charger
Full Charge
Green Solid ON
Charging
Yellow Solid ON
Undocked
Full Charge
Green 0.1s ON/5s OFF
Medium Charge
Yellow 0.1s ON/5s OFF
Low Charge
Red 0.1s ON/5s OFF
Table 5-2 Power status LED indicators for Shimmer3 firmware (undocked and docked).
Note: The SD error LED sequence is present in LogAndStream_v0.8.0 and later. Older versions of
LogAndStream combine both SD and RTC errors into a 0.1s Blue/0.1s Green LED flashing sequence.
