o Note: it is very important to hold the boss ends together while running in the screw.
Do not let the screws draw the parts together as this could damage the enclosure.
o Note: do not over-tighten the screws as they may damage the top of the enclosure;
when the top of the screw is flush with the plastic, stop tightening.

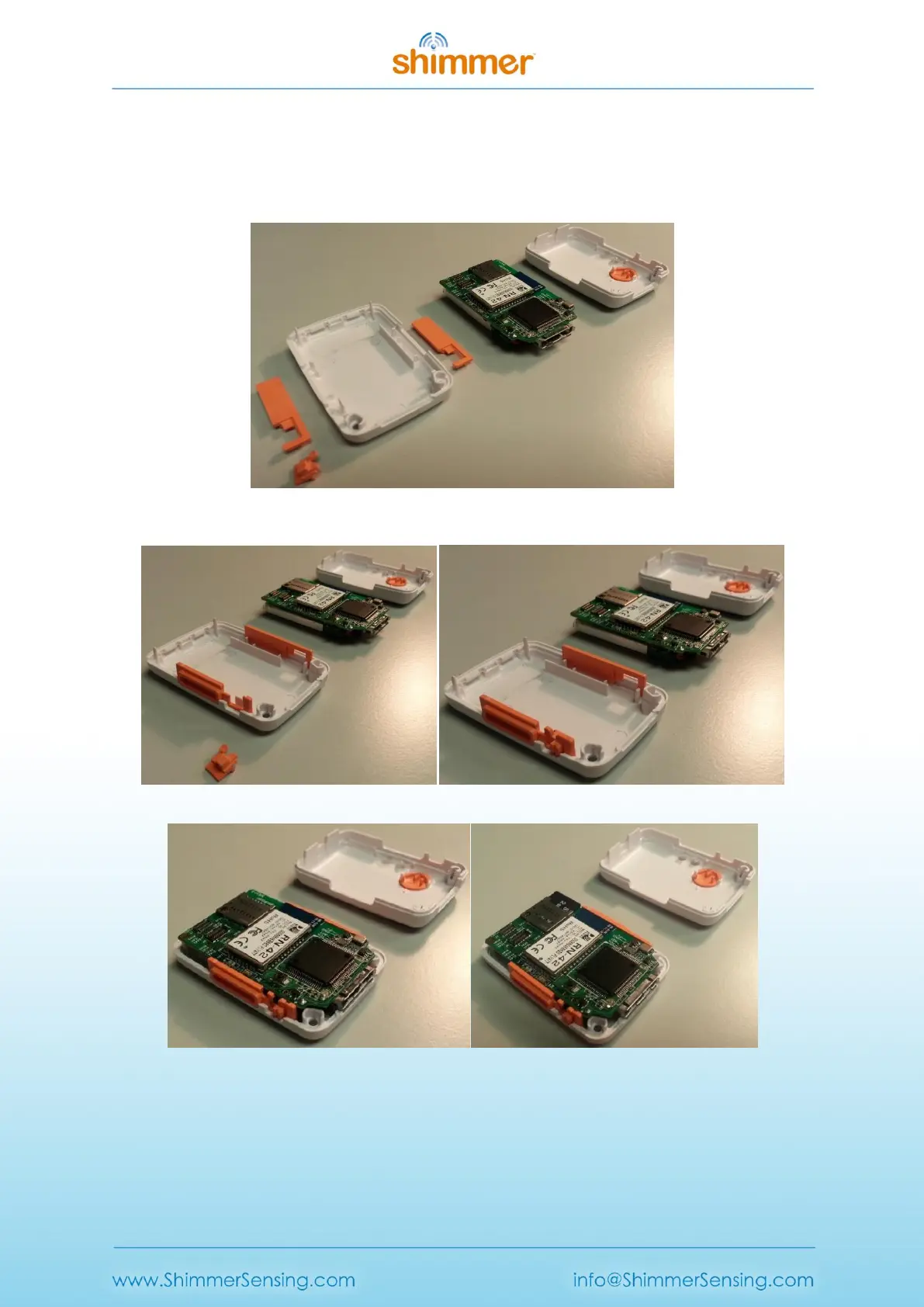

Figure 9-5 Plastic enclosure parts
Figure 9-6 Assembling clip fittings and power switch cap
Figure 9-7 Installed circuit board and SD card insertion
