SICK LD-LRS - Page 15

1400
Size
[
m
m]
Distance [m]
Beam diameter
80
Beam diameter
Measuring point distance
0
0
10
20
30
40
50
60
70
1000
100
500
1,0°
0,5°
0,25°
0,125°
2
4
1
2
3

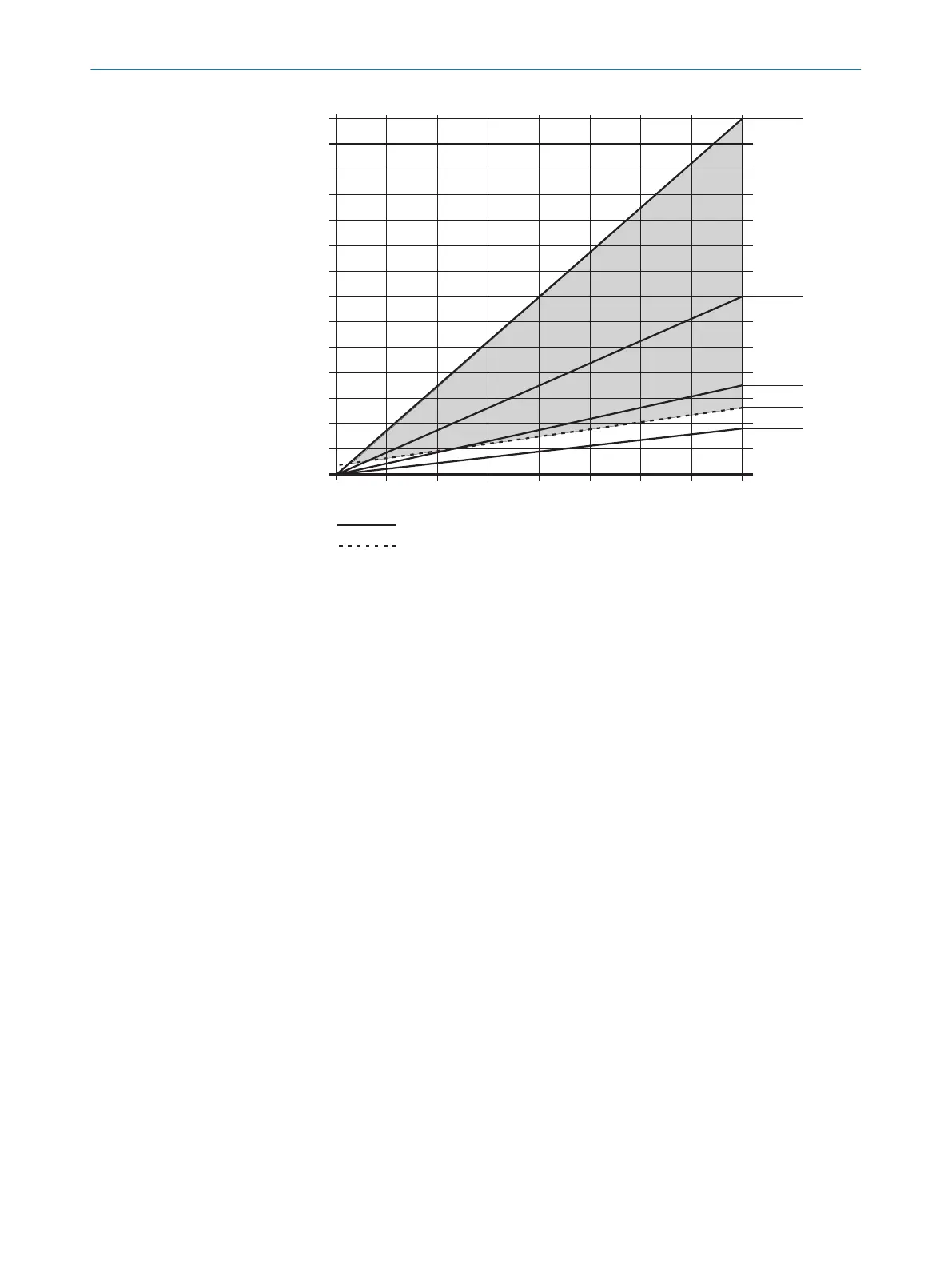

Figure 9: Beam diameter and measuring point distance at 0 to 80m
1
Size [mm]
2
Beam diameter
3
Distance [m]
4
Measuring point distance
Reading example for an angular resolution of 0.125° in figure 9
•
60m distance
•
A distance intersection point of 60m results in a measuring point distance of
approx. 130mm
•
For a distance intersection point at 60m and based on the characteristic curve for
beam diameter, the beam expansion is approx. 200mm
•
Result: No gaps in the scan
PRODUCT DESCRIPTION
3
