SICK SLG-2 User Manual

1 2

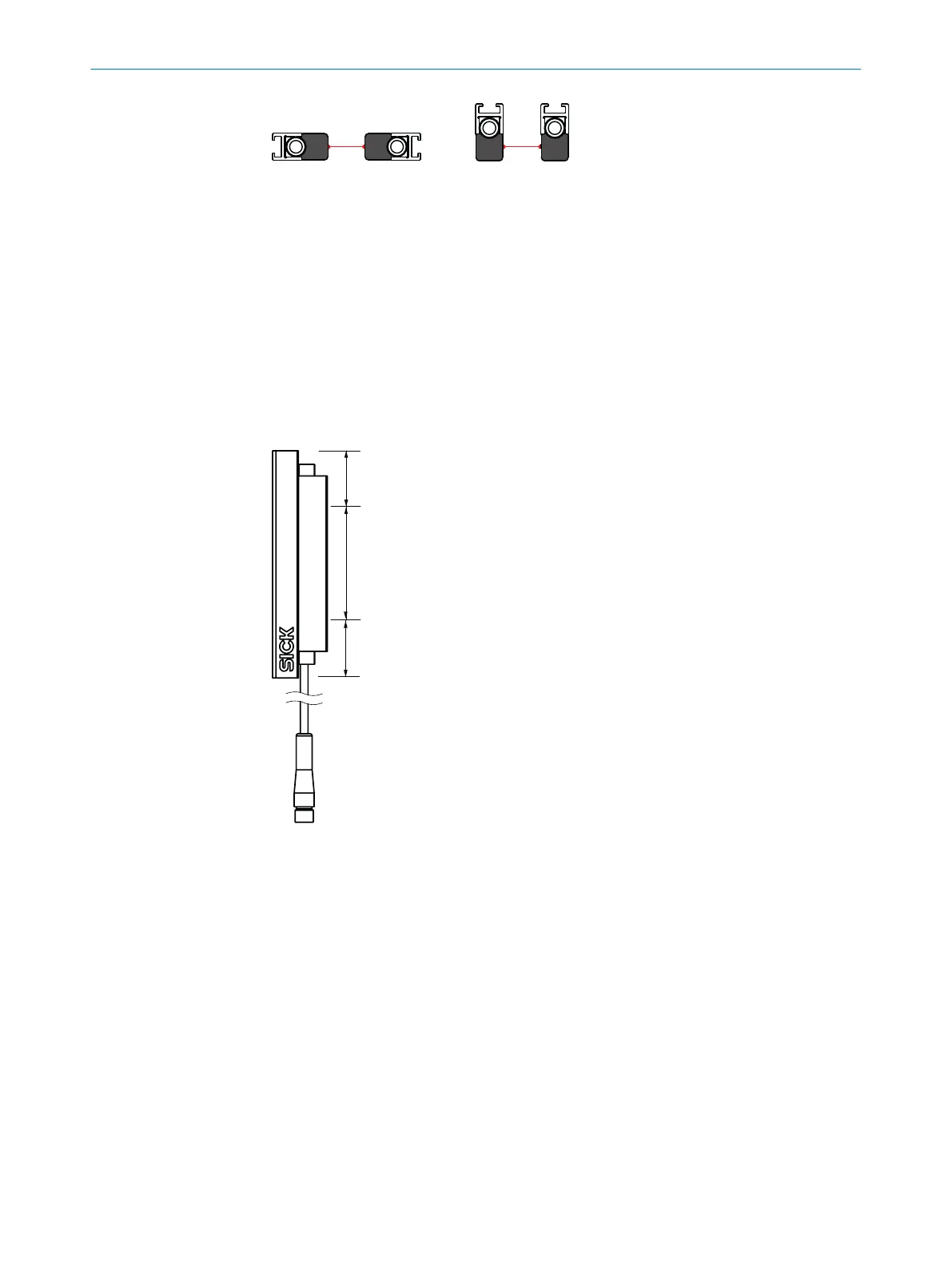

Figure 13: Slim vs. flat
1
Slim model: Light emission on the thin side
2
Flat model: Light emission on the wide side
The light grids are to be mounted with the mounting accessories listed below, taking
into account the distances listed below.
If large light grids or light grids in applications with high vibration and impact loads are
used, the use of 2 mounting sets per light grid is recommended.
Accessories available for mounting:
•
Mounting bracket BEF-SLG2-SET1 (2111623)
•
Mounting slot BEF-NUT-SLG2 (2111624)
1
2
1
Figure 14: Mounting
Recommended holder spacing:
1
Distance housing edge – mounting bracket ≤ 10 cm
2
Distance mounting bracket – mounting bracket ≤ 75 cm
1)
Observe maximum torque for both fastening types of 2 Nm.
2)
1)
Applications with high mechanical load ≤ 40 cm
2)
For mounting brackets with part number 2111623, the use of a washer under the screw head is recommended.
4 MOUNTING
20
O P E R A T I N G I N S T R U C T I O N S | SLG-2 8026014/2021-06-10 | SICK
Subject to change without notice
