Technical data
11 Technical data
NOTE!
You can download, save, and print the relevant online
data sheet for your ultrasonic sensor, including technical
data, dimensions, and connection diagrams,
from "www.sick.com/UM18".
11.1 Dimensions
25.5 (1.00)
40.5 (1.59)
4
(0.16)
M18 x 1
2
3
4
All dimensions in mm (inch)
1
56.5 (2.22)
41.5 (1.63)
16
(0.63)
4
(0.16)
M18 x 1
3.4
(0.13)
2
3
4
1
68.5 (2.70)

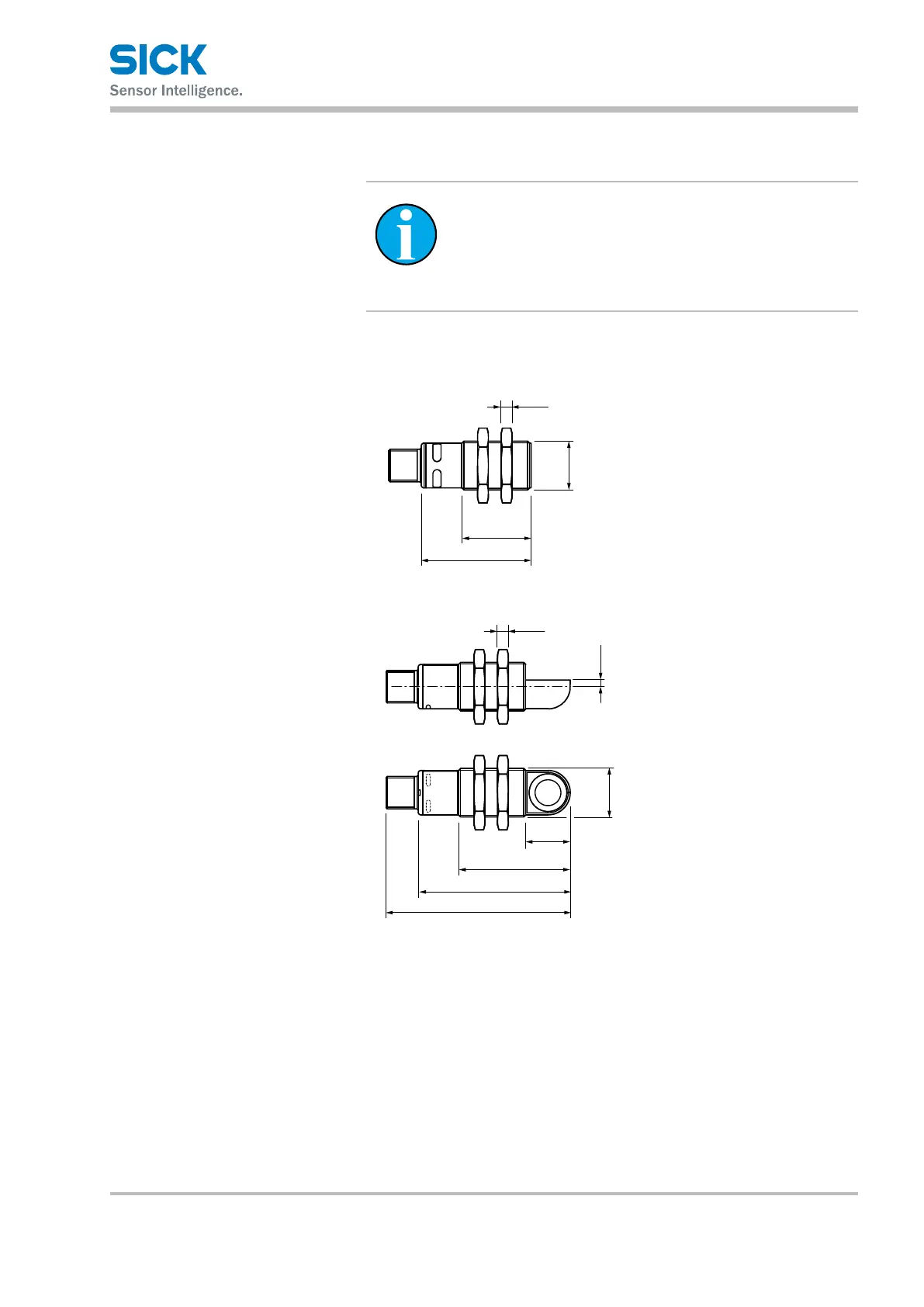

Fig. 13: Structure: top "UM18-2xxxxxxx1 ultrasonic sensor"
bottom "UM18-2xxxxxxx2 ultrasonic sensor"
1 Connection
2 Mounting nuts, width across 24 mm
3 Supply voltage active LED status indicator (green)
4 Switching/analog output LED status indicator (orange)
