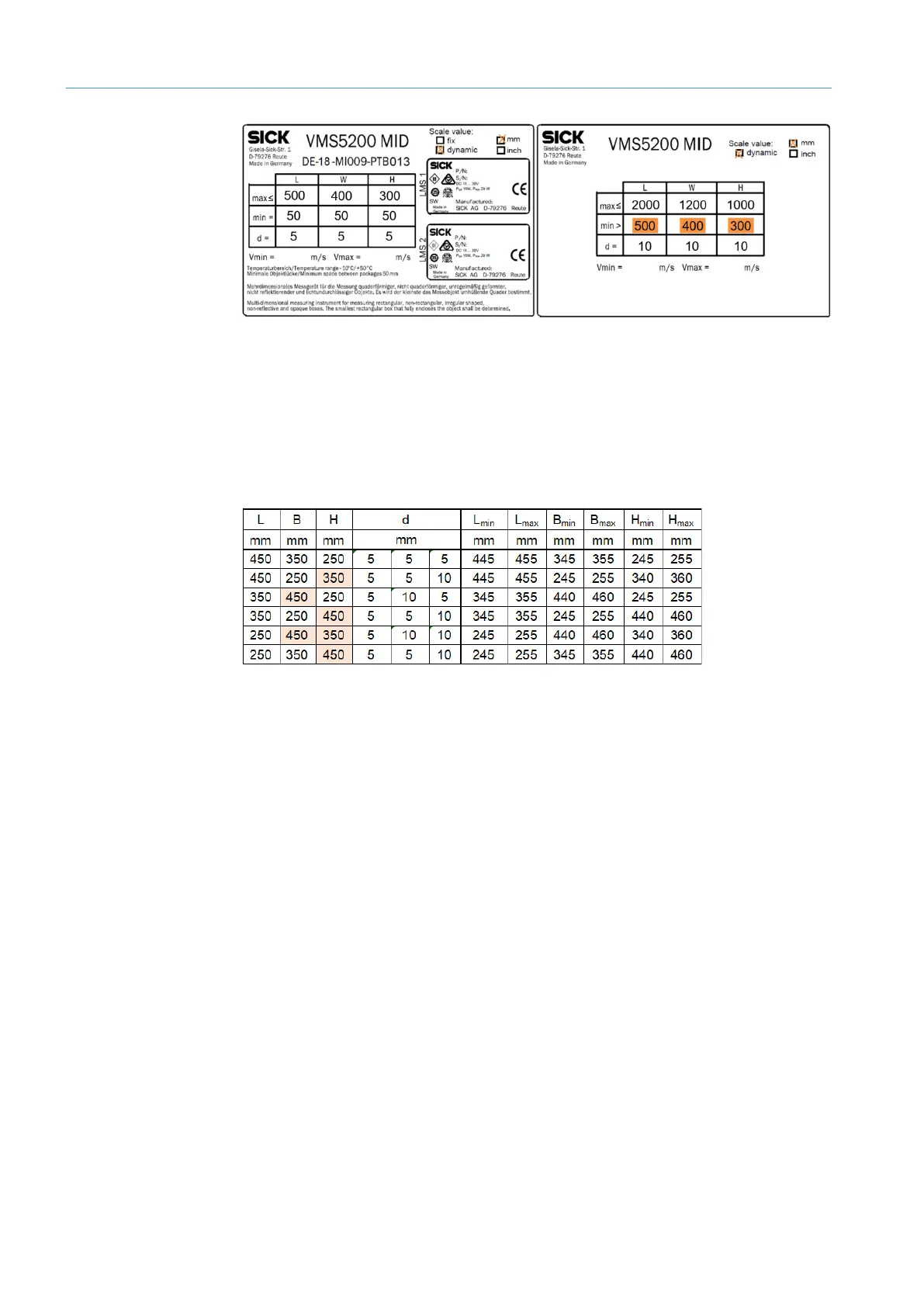

Fig. 19: Dynamic scale value switchover (switching point for length, width and height)
In example 2, the multi-dimensional measurement system is working with the two scale
interval values 5 mm x 5 mm x 5 mm and 10 mm x 10 mm x 10 mm. The change of scale
interval values occurs for all three dimensions. The switching points are 500 mm for the
length, 400 mm for the width, and 300 mm for the height.
The following table shows the scale interval values based on each respective measured
object dimension.
Example 2
