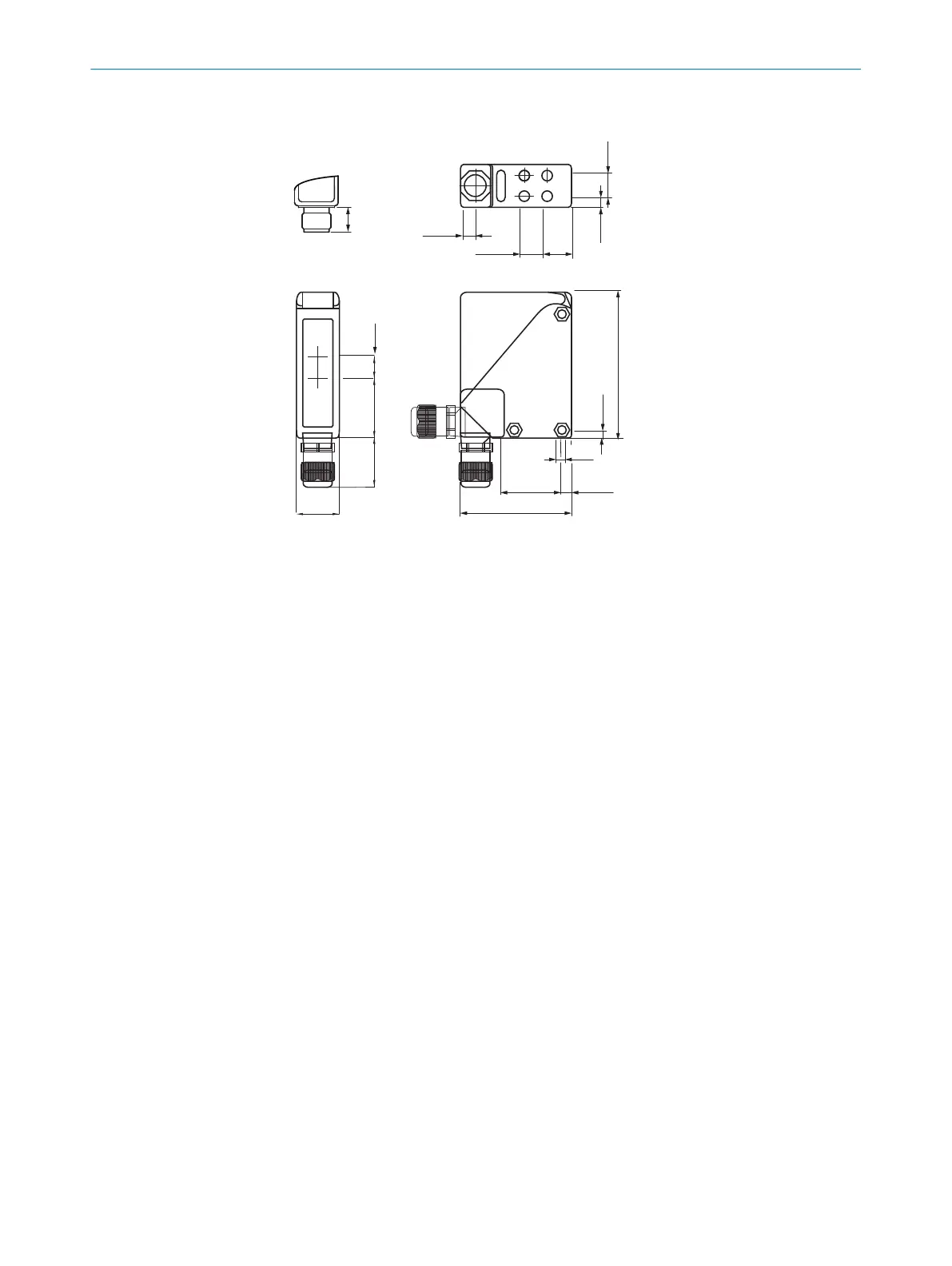

13.1 Dimensional drawing
6
1
14,4
(0.57)
6
2
3
4
5
6
27
(1.06)
37
(1.46)
max. 32
(1.26)
14
(0.55)
14
(0.55)
6.5
(0.26)
10.5
(0.41)
14
(0.55)
15.5
(0.61)
70 (2.76)
M5
6.2
(0.24)
30 (1.18)
92 (3.62)
5
(0.20)
Figure 7: Dimensional drawing
1
Alignment sight
2
LED indicator yellow
3
Center of optical axis / Sender
4
Center of optical axis / Receiver
5
Mounting hole ø 5.5 mm, both sides for hexagon nut M5
6
M16 fitting or male connector can be rotated by 90°
