SICK WTB4S - Page 36

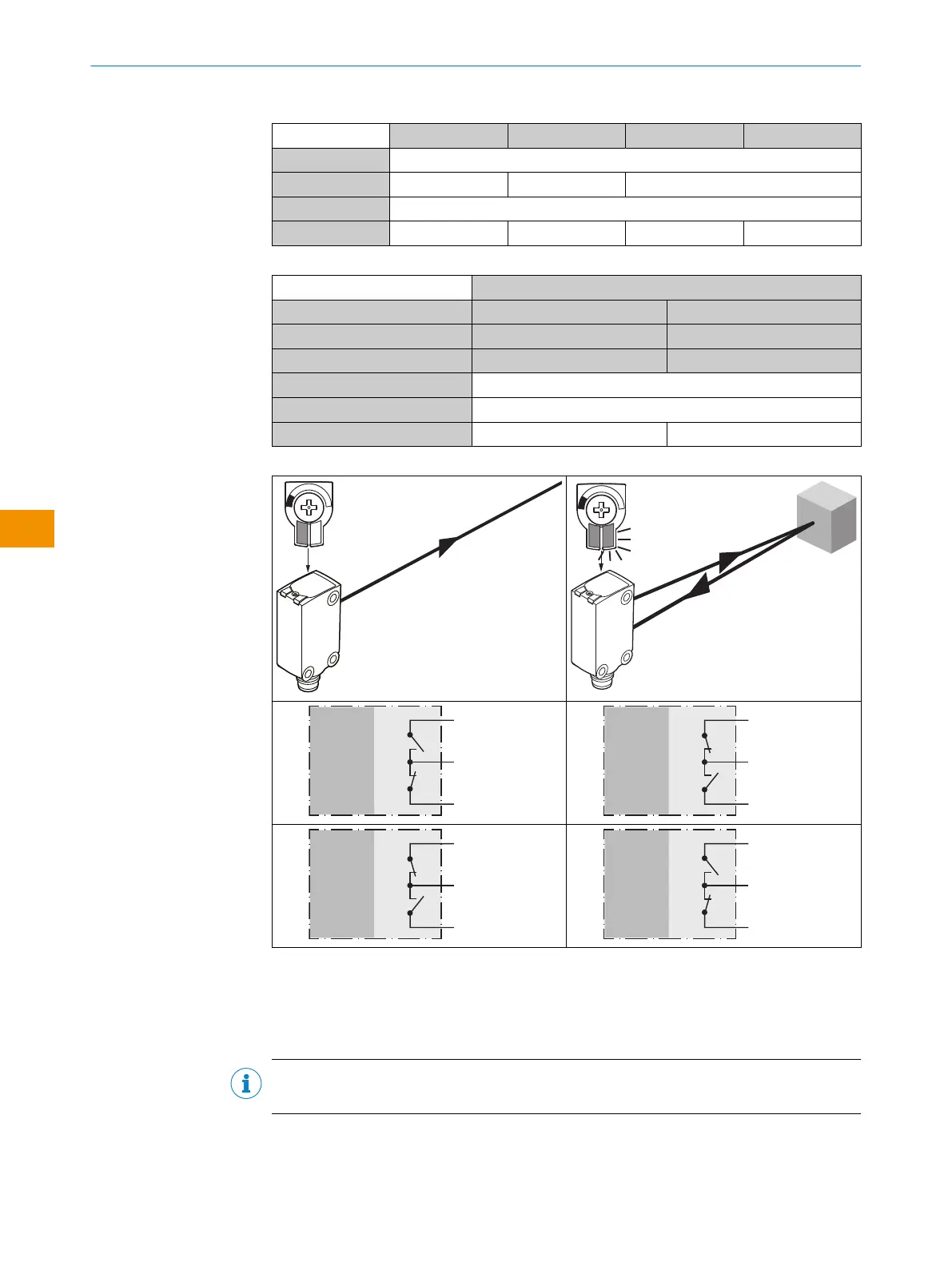

Table 4: DC
WTB4Sx- xx112xx0Zxx xx111xx0Zxx xx312xx0Zxx xx311xx0Zxx
1 = BN + (L+)
2 = WH Q
Q
No function
3 = BU - (M)
4 = BK
Q
Q
Q
Q
Table 5: DC
WTB4Sx- xxXXXxx0Zxx
Push-pull 311 312
PNP A11 A12
NPN E11 E12
1 = BN + (L+)
3 = BU - (M)
4 = BK Q
Q
Table 6: Push-pull, PNP, NPN
Push-pull
PNP
NPN
+ (L+)
Q ≤ 100 mA
‒ (M)
Push-pull
PNP
NPN
+ (L+)
Q ≤ 100 mA
‒ (M)
Push-pull
PNP
NPN
+ (L+)
Q ≤ 100 mA
‒ (M)
Push-pull
PNP
NPN
+ (L+)
Q ≤ 100 mA
‒ (M)
5.4 Integration of the sensor in IO-Link mode
To operate the product in IO-Link mode, it must be connected to a suitable IO-Link
Master. This is used for further integration into the control system.
NOTE
The cable length between the IO-Link Master and IO-Link device: maximum 20m.
Details on integration can be found in the detailed IO-Link description: Technical Infor‐
mation: Photoelectric sensors, SICK Smart Sensors / IO-Link.
