11.5 Dimension drawings
3RW44 soft starters
286 Manual, 03/2017, NEB535219502000/RS-AB/008

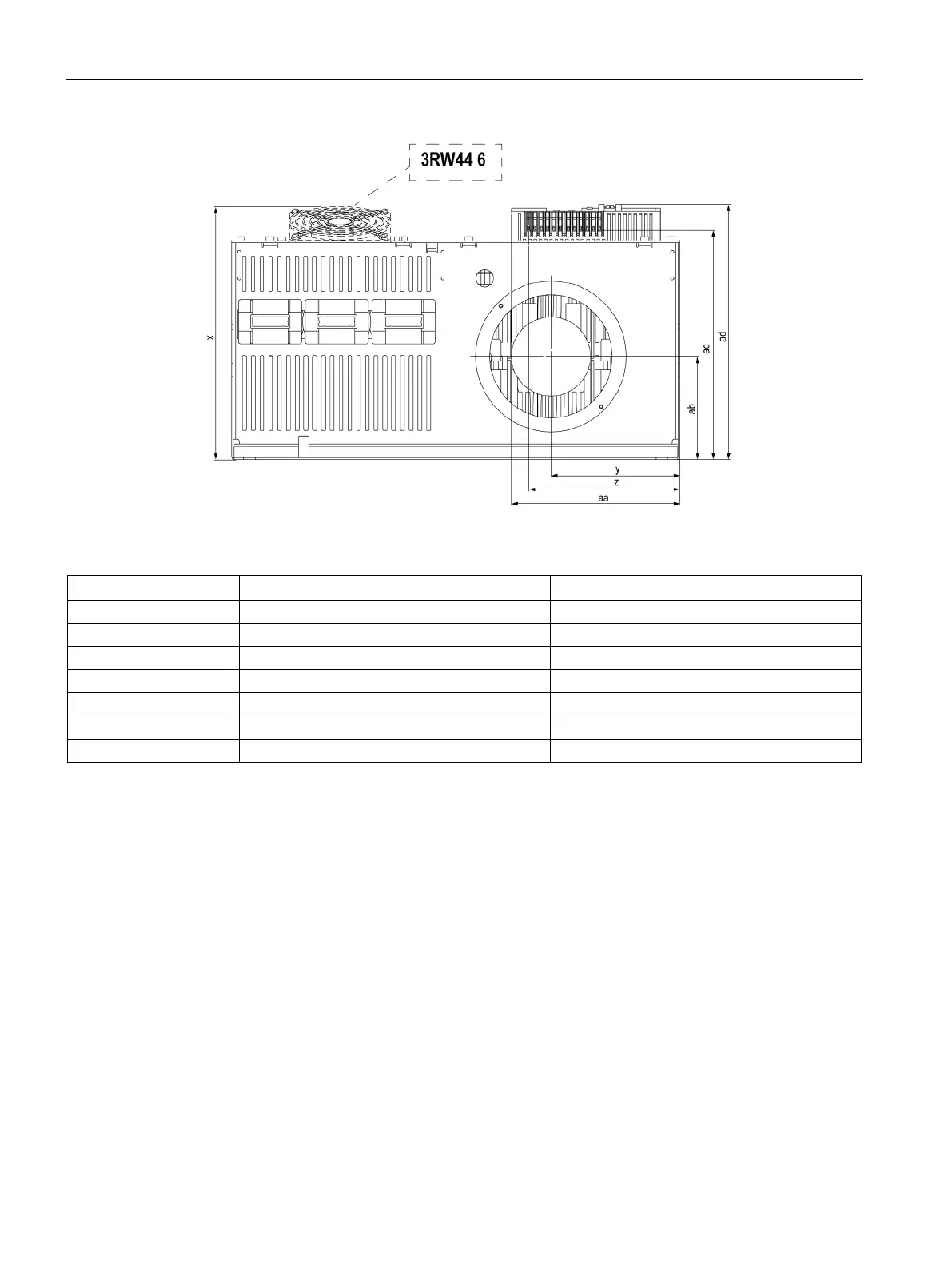

Figure 11-3 3RW44 6
3RW44 5
3RW44 6
x 290 mm (11.4 in) 289.5 mm (11.4 in)
y
147 mm (5.7 in)
175 mm (6.9 in)
z
173 mm (6.9 in)
173 mm (6.8 in)
aa
195 mm (7.7 in)
-
ab
118 mm (4.6 in)
118 mm (4.65 in)
ac
261 mm (10.2 in)
261 mm (10.28 in)
ad
290 mm (11.5 in)
290 mm (11.42 in)
