Configuring
4-110 Application Module FM 458-1 DP - User Manual
A5E01078222-02 Edition 03.2009
4.9.1.2 Configuring the CFC, marking the function block connections and
creating the address book
The block connections, which must be handled and monitored using
WinCC must, initially, be marked in the CFC charts as OCM-capable. To
do this, you must proceed in the following steps:

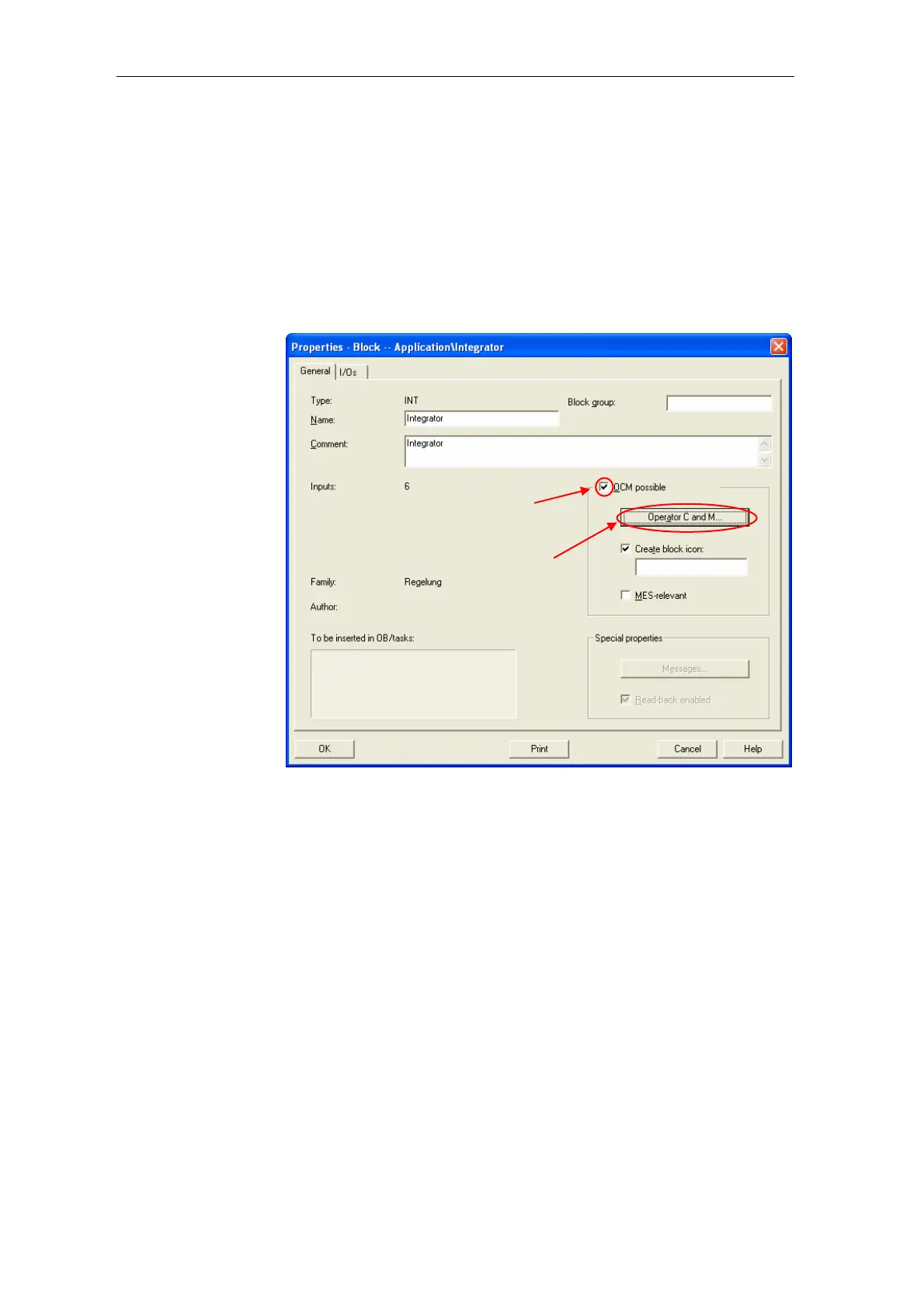

1. Open the Properties dialog box of the block, set the checkmark for
"OCM possible" and then press the "Operator C and M" button (refer
to the following diagram).
2. Click
1. Activate
