Product description
Application Module FM 458-1 DP - User Manual 2-33
A5E01078222-02 Edition 03.2009
2.3 Communications expansion module EXM 448
Designation Order No.
Communications expansion module EXM 448 6DD1607-0EA0
NOTE
The EXM448 only can be installed in closed switch cabinets.
2.3.1 Application and design
The EXM 448 expansion module is used as communications module for
PROFIBUS-DP in the master- or slave function.
PROFIBUS DPX1
2 x LED
SIMATIC P BUS
LE BUS
yellow green
MASTERDRIVES-
option module

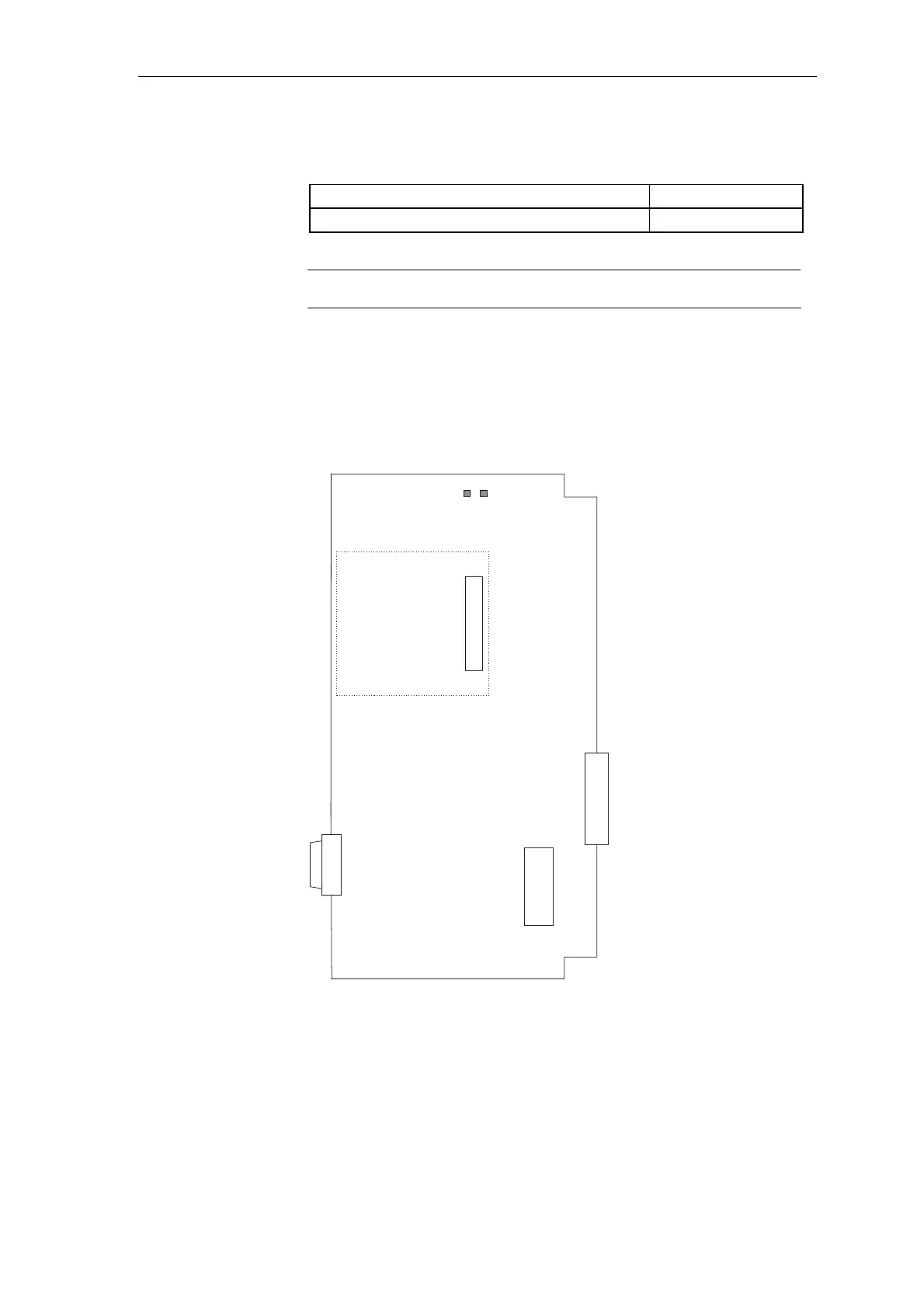

Fig. 2-6 Mechanical design of the communications expansion module
EXM 448
Application
Design
