4.9.4 Configuring using the D7-SYS-OS engineering tool "Mapper"
The "D7-SYS engineering tool" - also called "Mapper" in the following text
- sets-up tags for the selected connectors of the CFC function blocks.
These tags can then be further processed by WinCC.
The following chapter describes how to use this tool.

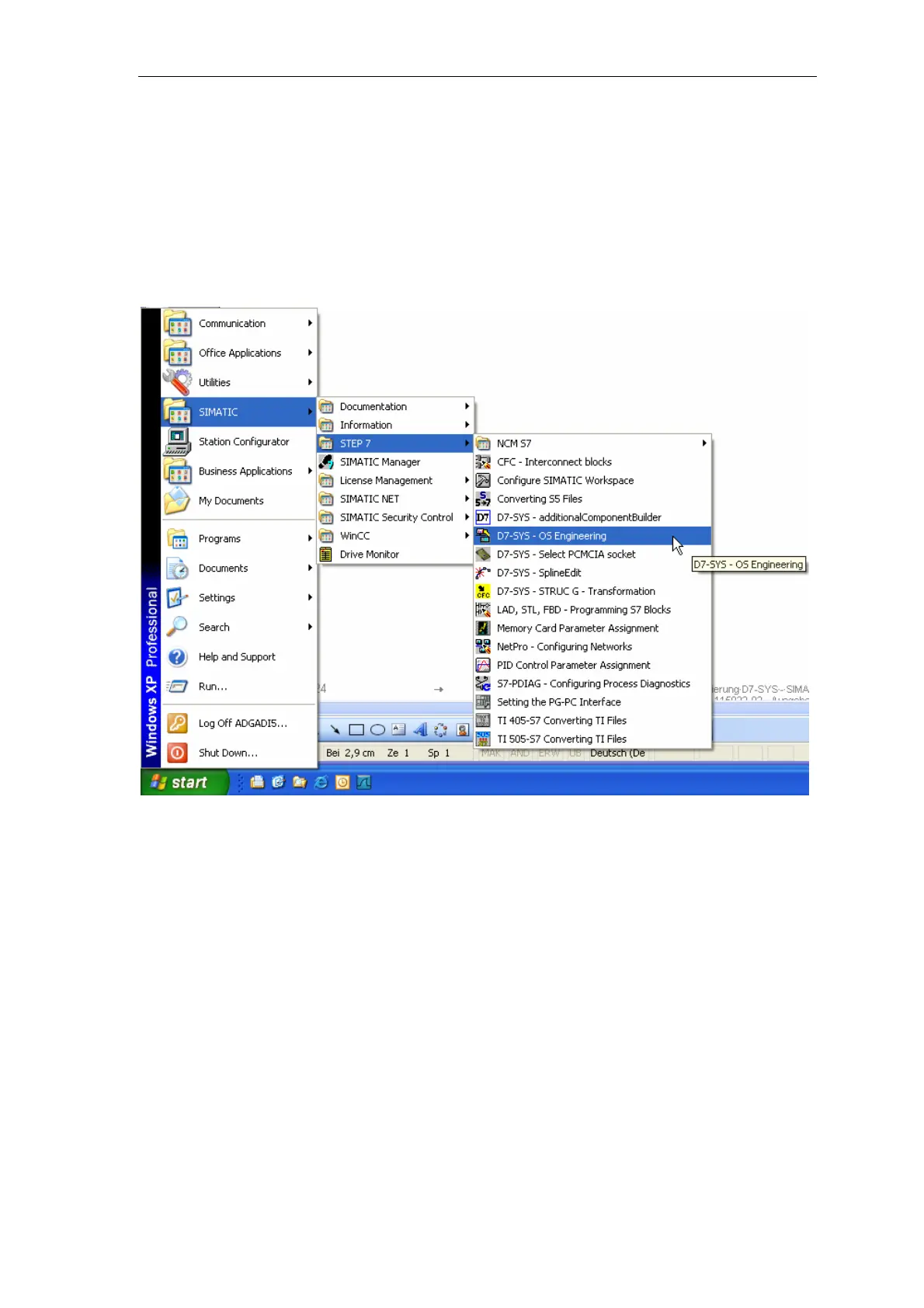

Calling the mapper:
Prerequisites for mapping operation:
Select the CFC function block connectors and then compile with the
"Create address book" option activated, as described in the previous
chapter.
Inserted PC station with communication module and WinCC
application.
The "NetPro" configuration should be checked as to whether all
stations are connected with one another via the required coupling
types; for example, in this case, via TCP/IP.
The same procedure should be used for MPI or DP couplings.
