Product description
Application Module FM 458-1 DP - User Manual 2-41
A5E01078222-02 Edition 03.2009
2.4.3 Connection possibilities
Note:
For connection possibilities,
connector assignments and
cables, please refer to the
documentation provided with
the option module!
EXM 448-2
LE-BUS
SIMATIC P-BUS
SIMOLINK
interface 1
SIMOLINK
interface 2
X2/X3
X4/X5
MASTERDRIVES-
option module

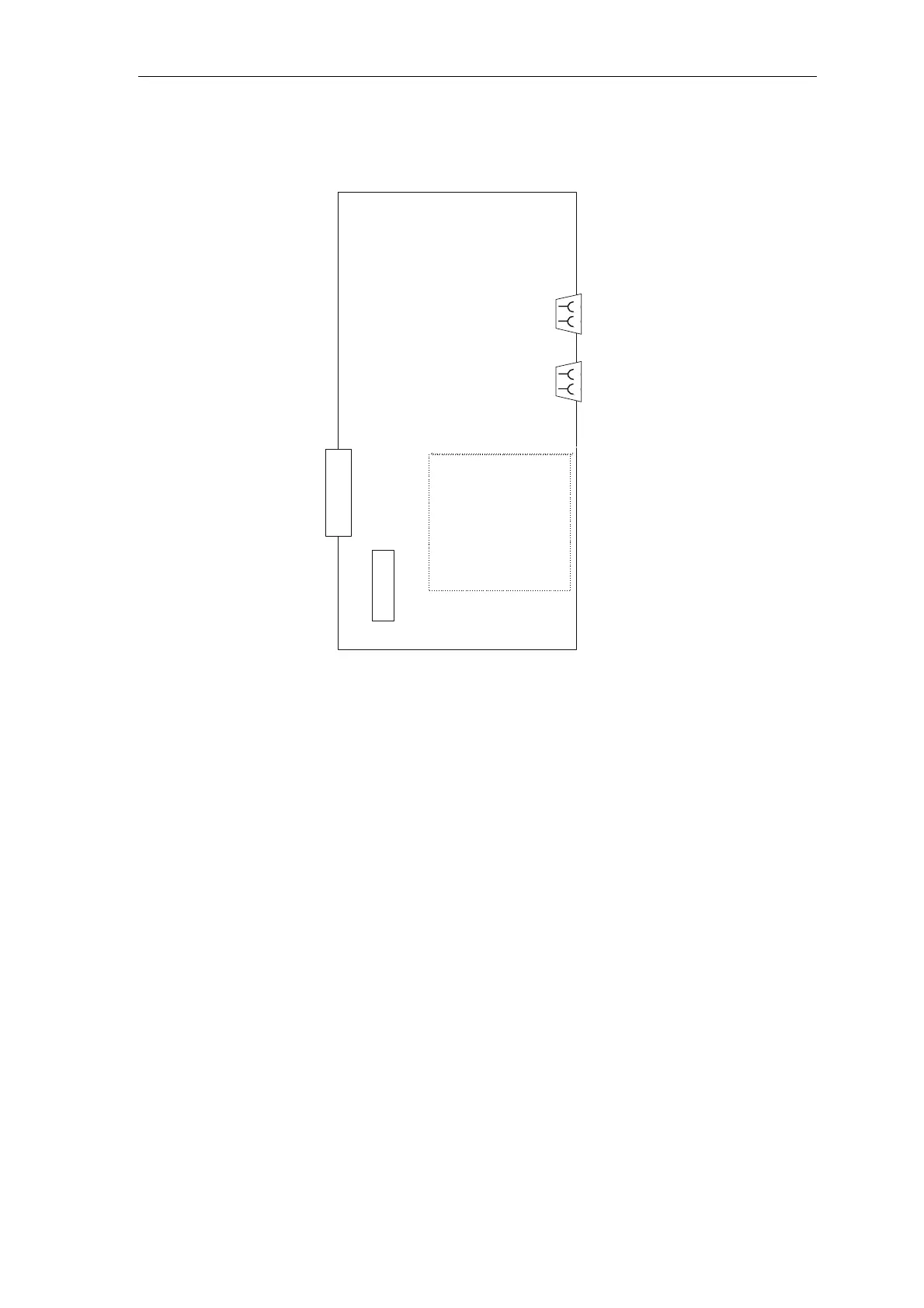

Fig. 2-9 Possibilities of connecting-up the communications expansion module
EXM 448-2
An additional expansion module (EXM 438-1 or EXM 448/EXM448-2)
can be inserted at this 5 x 24 pin socket connector.
The 5 x 17 pin socket connectors is used to connect to the SIMATIC S7
backplane (only power supply).
Connecting
diagram
LE-bus connection
P-bus connection
