Configuring
Application Module FM 458-1 DP - User Manual 4-113
A5E01078222-02 Edition 03.2009

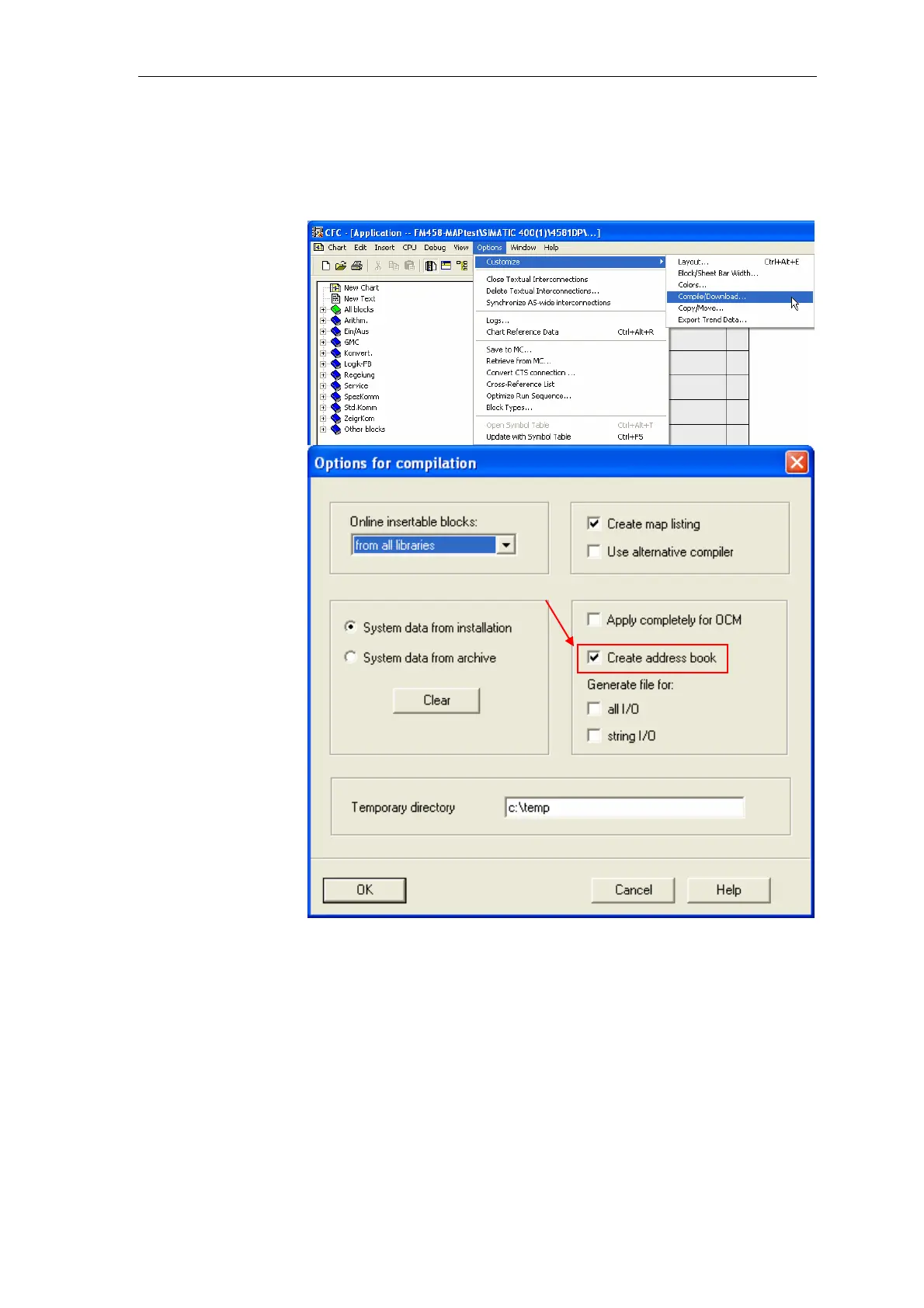

5. Select the address book creation in the option dialog box to compile
from CFC (Options Customize Compile/download) (refer to
the next screenshot), in order to obtain the address information for the
WinCC configuration.
The address book is created when compiling. This then completes all of
the activities necessary in the CFC charts. Access using WinCC is
possible after it has been downloaded into the target system.
A "D7-SYS-OS engineering tool" – called "Mapper" in the following – is
supplied with D7-SYS version 7.1. When run (executed), the tool sets-up
a tag (WinCC variable) for each of the function block connectors that was
marked.
If this mapper is used, then the workflow can be exited at this point
and the work continued in Section 4.9.4.
