Product description
2-36 Application Module FM 458-1 DP - User Manual
A5E01078222-02 Edition 03.2009

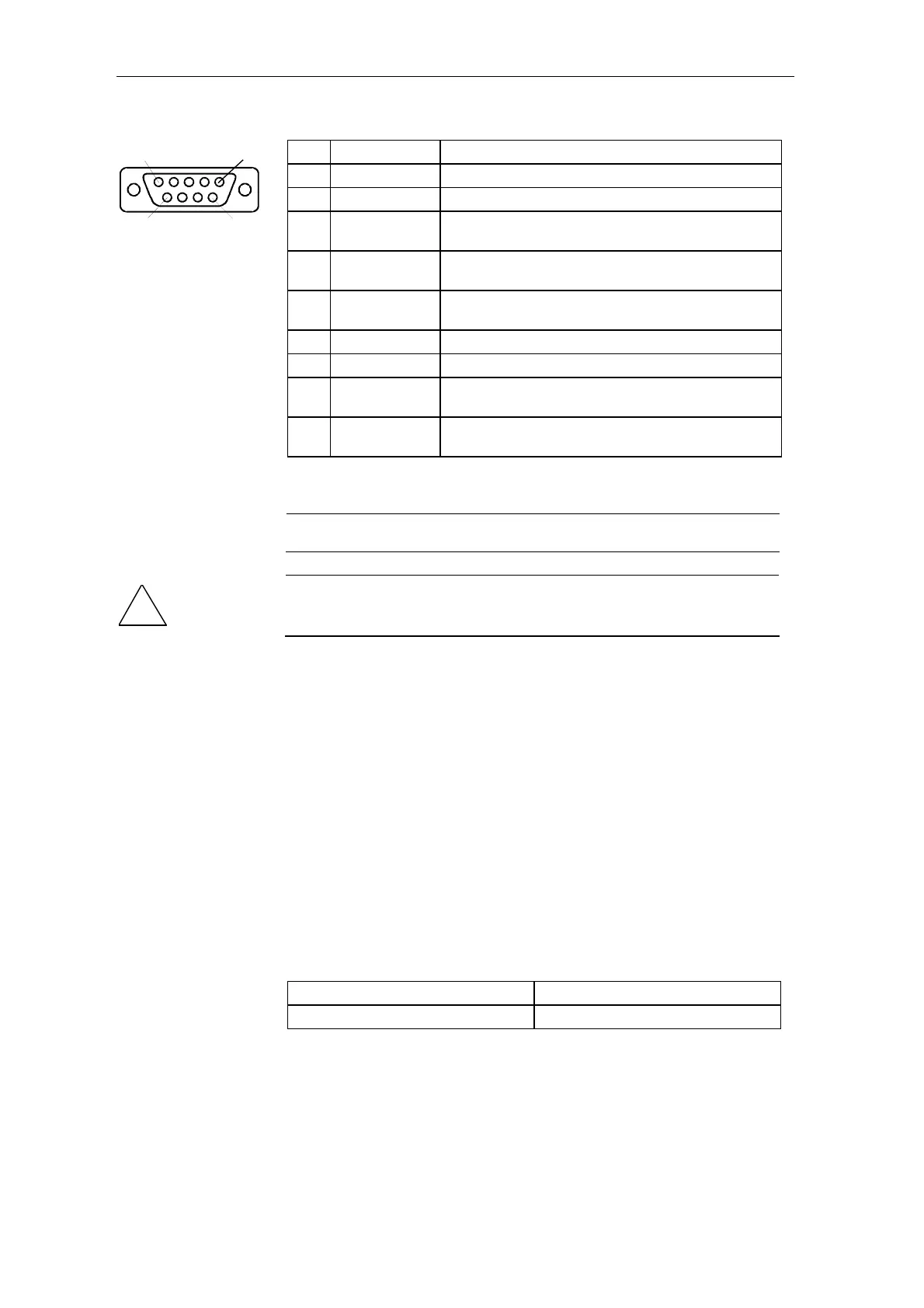

Pin Designation Explanation
1 RS 232: ground for "SS52load“
2 RS 232: TxD for "SS52load“: Receive signal
3 RS 485: +TxRx PROFIBUS: Receive- and send signal +
(corresponds to data B)
4 RTS Request to send
(for OLM control; "1“ when sending; as for pin 9)
5 Ground
5Vexternal
External ground; to supply OLMs
6 5Vexternal P5 external; to supply OLMs
7 RS 232: RxD for "SS52load“: Send signal
8 RS 485: -Tx/Rx PROFIBUS: receive- and send signal -
(corresponds to data A)
9 RTS Request to send
(for OLM control; "1“ when sending; as for pin 4)
Table 2-20 Connection assignment of X1 (RS232 and RS485)
NOTE
Maximal permissible load for 5Vexternal: 90 mA
!
Caution
5Vexternal is not short-circuit proof.
The "COM PROFIBUS" program is required to use the FM 458-1 DP
application module with the communications expansion module
EXM 448 as master. It runs on a PC under Windows and generates a
COM database.
The generated database can also be loaded via
PROFIBUS (with PC PROFIBUS card CP5411, CP5511 card)
or
COM1/2 interface of the PC and RS-232 parameterizing/diagnostics
interface with the "SS52load" driver program
in the EXM 448.
COM PROFIBUS must be additionally ordered, if EXM 448 is to be
configured as master.
Designation Order No.
COM PROFIBUS 6ES5 895-6SE12 (German)
The "SS52 load“ driver program is included in COM PROFIBUS from
V3.1, or it can be requested at no charge via the Siemens Intranet under
the following address:
ftp://www.erlf80.asi.siemens.de/ SIMADYN_D/html/treiber.htm
15
69
Parameterizing
