Siemens AVS75.390 - Dimensions and Drilling Plan

29/221
Siemens Switzerland Ltd User manual RVS61.843 CE1U2355en_02
HVAC Products 3 Mounting and installation 23. November 2007

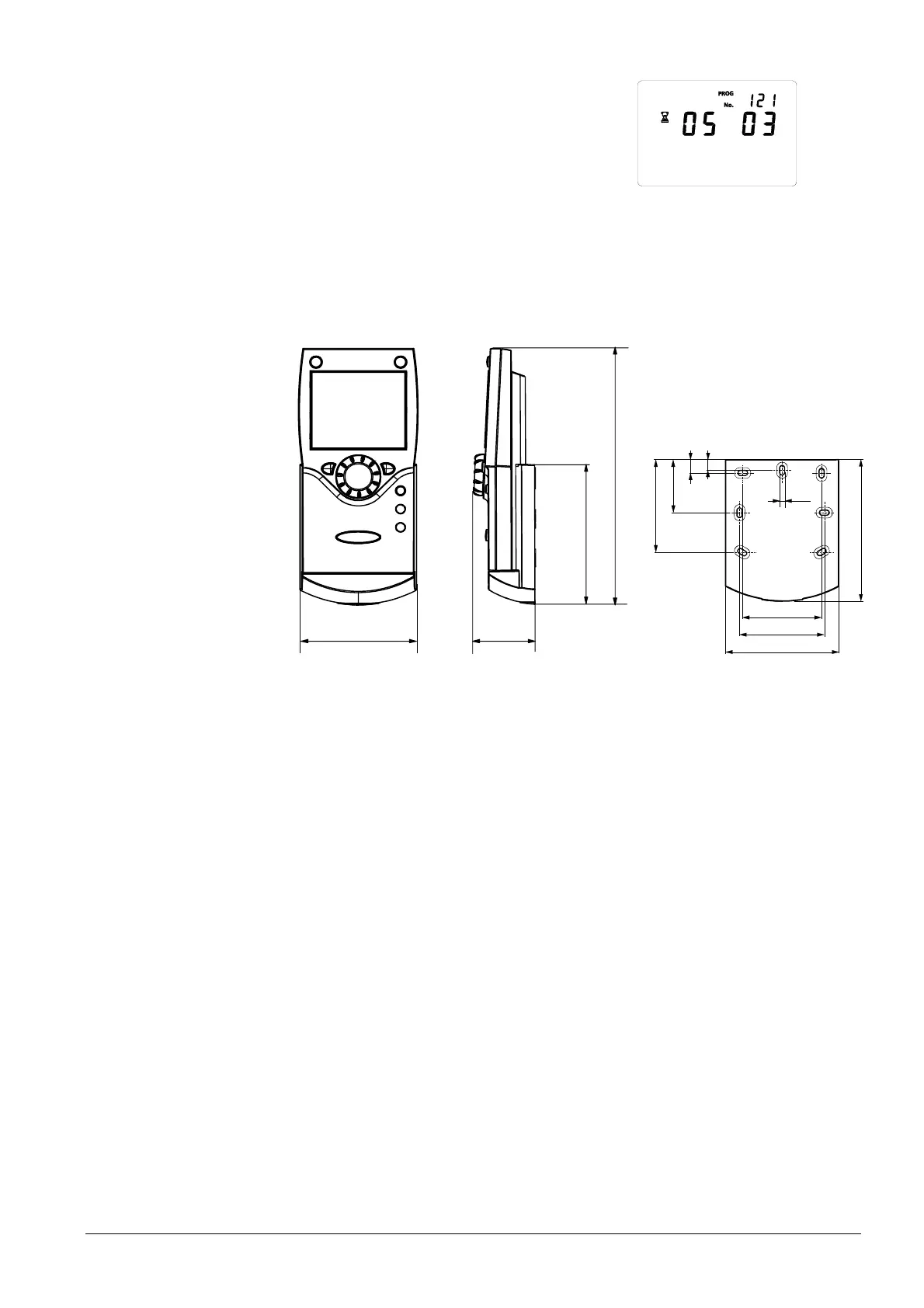

Example of a display during the test:
The digits on the left show telegrams that have
been sent, the digits on the right telegrams that
have been received. The test will be ended
after 24 telegrams. The test is considered
successful when at least 50% of the telegrams
sent have been received.
If the test was not successful, some other mounting location should be chosen, or the
AVS14.390 RF repeater should be used.
Dimensions and
drilling plan
42
185
2359Z12
100
82
2359Z50
4,2
9
56
60
100
80
11
39
67
Bedieneinheit
Testmode
