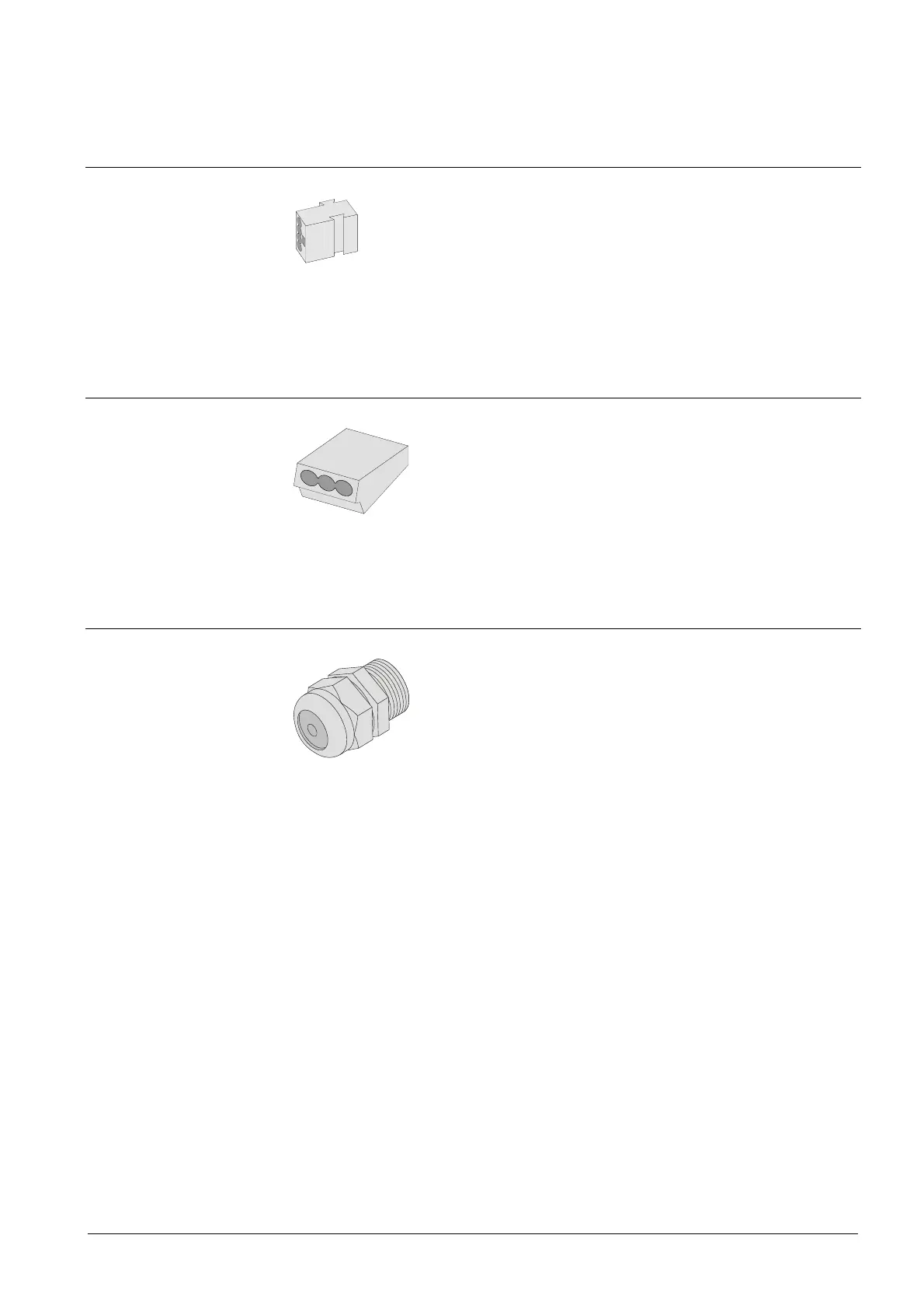

3.6.14 Micro terminal DBZ1190-AA
 Auxiliary terminal for connecting cables
 For T-branches of additional cabling for detector
heating units, sounder base, external alarm
indicators, etc.
 For wire diameters of 0.28 … 0.5 mm
2
 4-pin
 Order no.: BPZ:4677080001
3.6.15 Connection terminal DBZ1190-AB
 Auxiliary terminal for connecting cables
 For T-branches of additional cabling for cable
shielding, detector heating units, sounder base,
external alarm indicators, etc.
 For wire diameters of 1 … 2.5 mm
2
 3-pin
 Order no.: BPZ:4942340001
3.6.16 M20 x 1.5 metal cable gland
 For introducing a cable into a housing
 Compatible with:
– M20 x 1.5 metal counter nut
 Order no.: A5Q00004478
