5.10.1 Installation of the protective cages
The protective cages can only be installed on the base attachment humid FDB293.

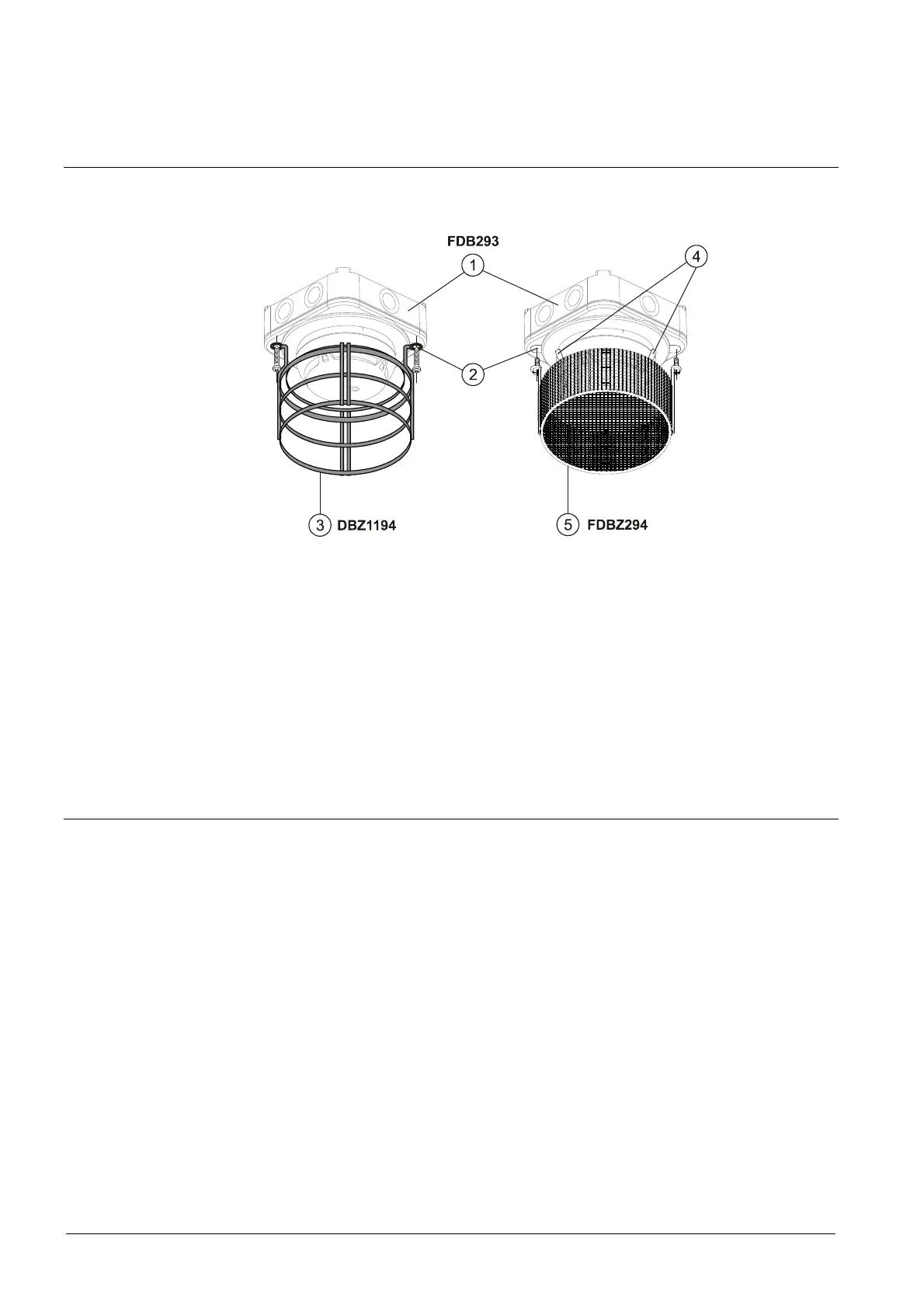

Installation of the protective cages
1 Base attachment humid 4 Flat plug 6.3 x 0.8 mm
2 Break out and screw protective cage
on firmly
5 EMC-protective cage
3 Protective cage
See also
 Base attachment humid FDB293 [ 35]
5.10.2 Grounding of the EMC-protective cage FDBZ294
The EMC-protective cage must be connected to the shielding of the detector line
cable at the flat plug.
If the detector line cable is not shielded then the EMC-protective cage must be
grounded using a separate cable.
For optimum grounding in the presence of powerful electromagnetic fields, the
ground line must be shorter than 10 m and have a cross section of at least
1.5 mm
2
.
See also
 Installation of the protective cages [ 66]
