5.2 Addressable detector base FDB221
 The cables are routed surface-mounted (up to cable diameter 6 mm) or recess-
mounted through detector base FDB221 or FDB221-AA.
 The cables must be placed flat on the bottom of the detector base so that they
do not hamper detector insertion.
FDB221
FDB221-AA
max. 4mm
Ø
max. 6mmØ
min. 46
max. 79
1

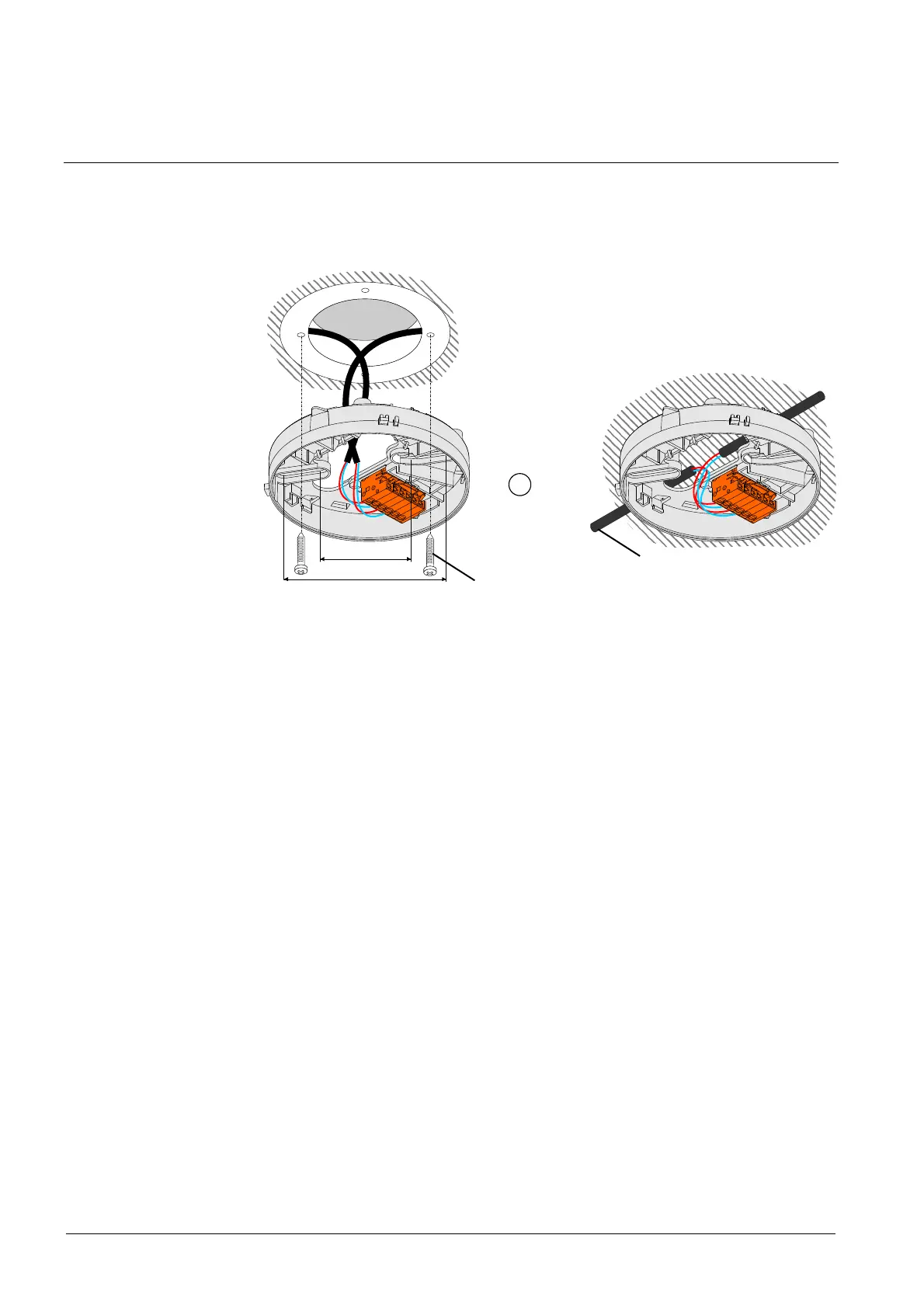

Installation of detector base FDB221/FDB221-AA
1 Detector base
