4.2 Components
Below you will find all the information you need to know about the SINAMICS
G120P variable speed drive and its components, together with a description of
potential applications.
Overview of main components (examples)

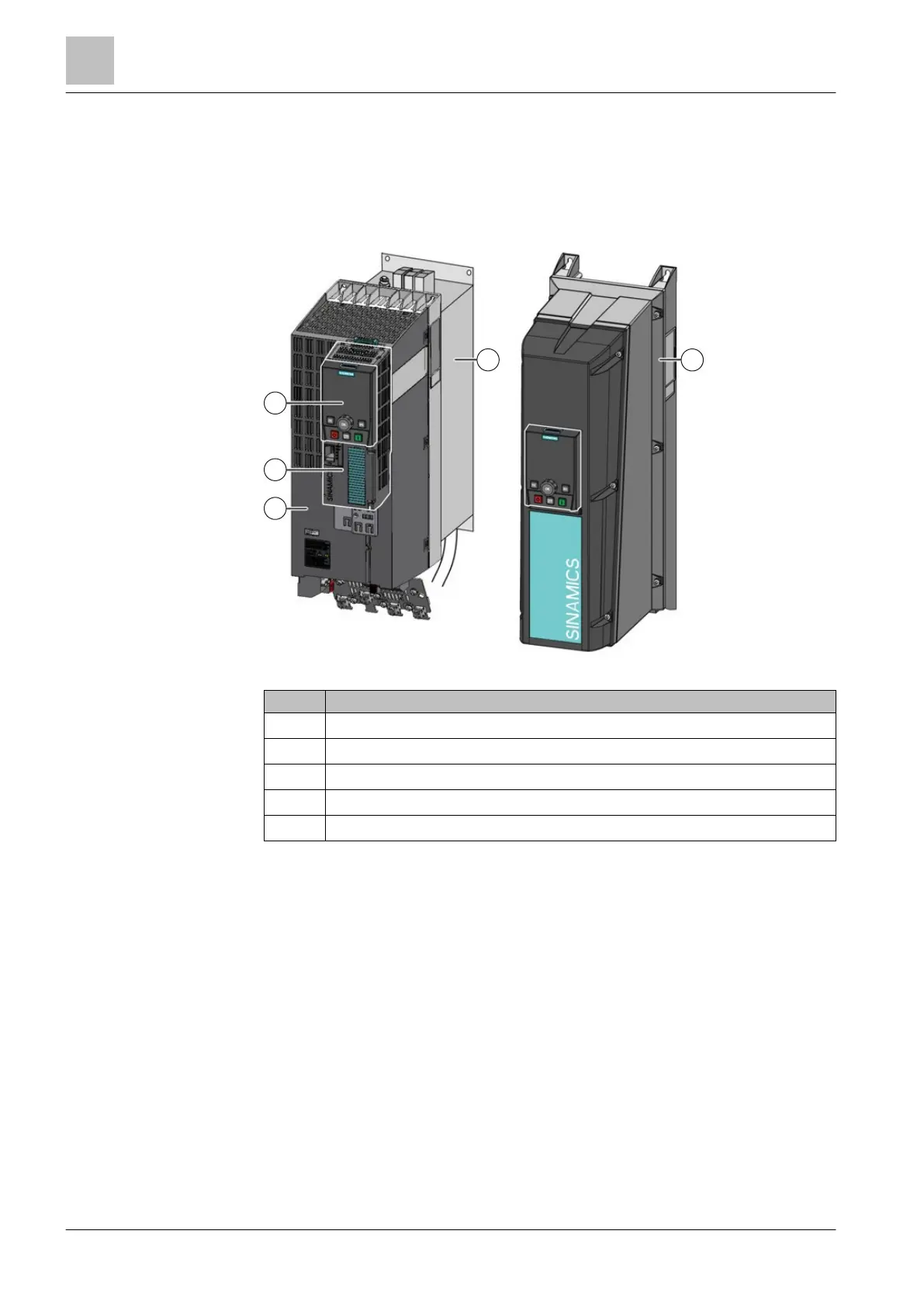

Figure 4: Overview of variable speed drive (examples)
Item
Designation
1
PM230 Power Module (IP20) [➙ 22]
2
CU230P-2-BT Control Unit [➙ 21]
3
IOP-2 Intelligent Operator Panel [➙ 23]
4
Base components (filters, reactors or braking resistors)
5
PM230 Power Module (IP54) with IOP-2 attached [➙ 22]
1
2
3
4
5
