Siemens G120P

Product information
Components
4
21 |
98
Siemens
A5E36496664A_d
Building Technologies
2016-03-17
4.2.1 CU230P-2-BT Control Unit

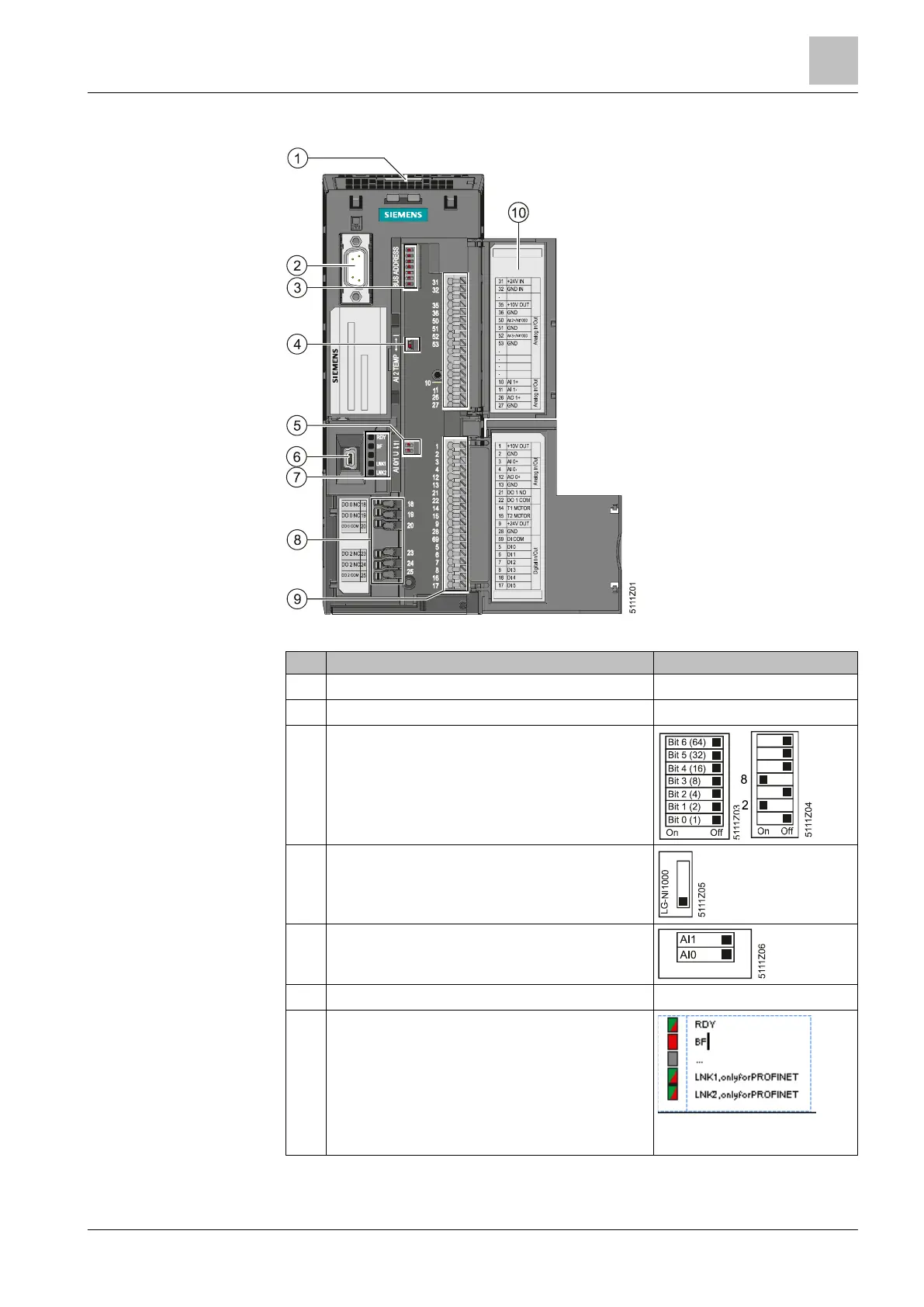

Figure 5: CU230P-2-BT Control Unit
Item
Designation
Details
1
Slot for memory card (MMC or SD card)
2
Operator panel interface (IOP-2 or BOP-2)
3
DIP switches for fieldbus address, incl. example (not
needed with PROFINET)
4
NI1000 DIP switches for AI2 (terminals 50/51)
5
DIP switches for AIO and AI1 (terminals 3/4 and 10/11)
6
USB interface for "STARTER" software
7
Status LEDs
Chapter Displayed operating states
[➙ 80]
