7 Application examples
Basic commissioning (Carrying out basic commissioning [➙ 51]) is a prerequisite
for the implementation of the application examples. During basic commissioning,
the applications below can be parameterized directly via the macro parameter
p0015. If the applications have to be set subsequently, the device must be set to
commissioning state.
Example: p0010 = 1 → p0015 = 101 → p0010 = 0

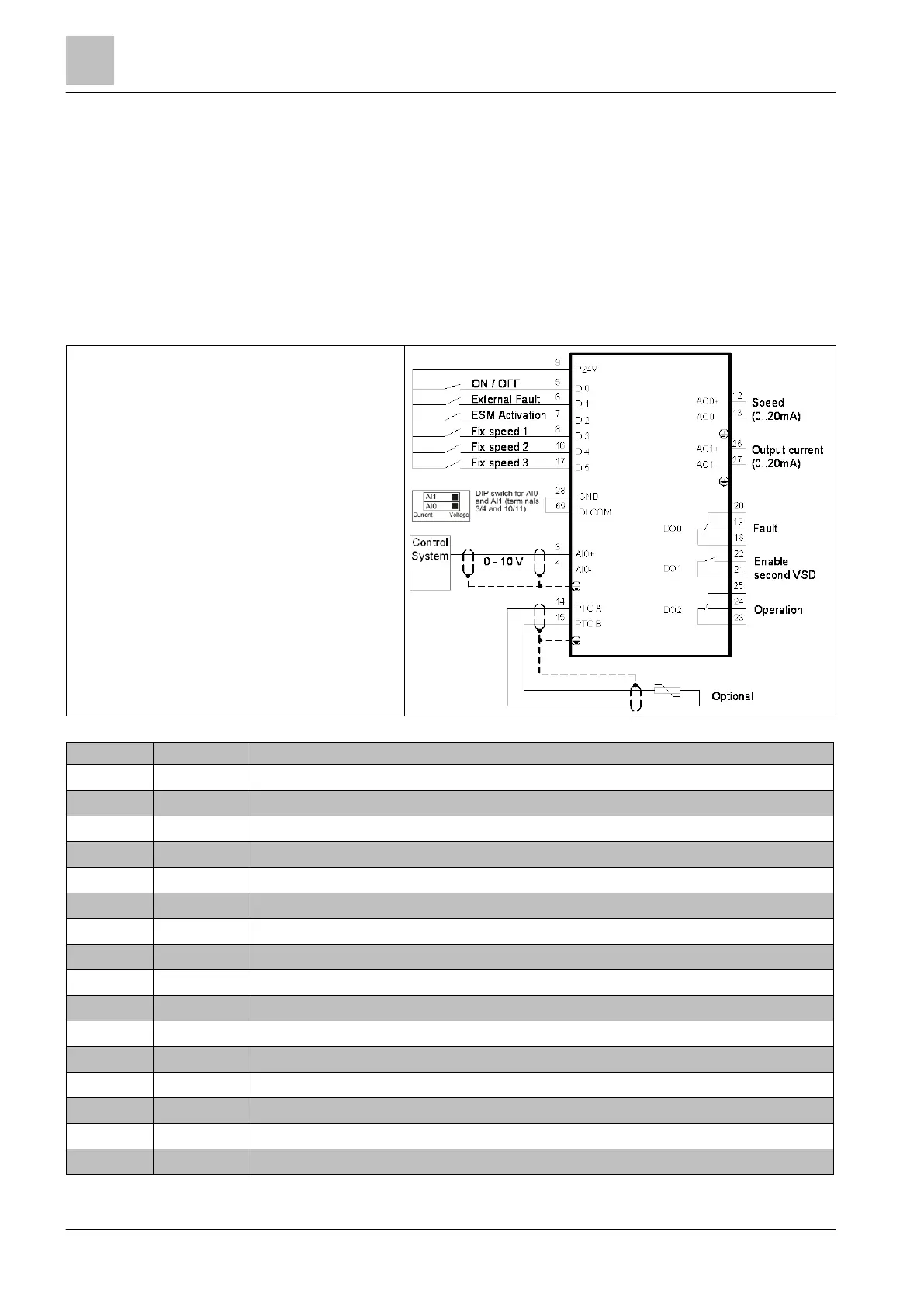

7.1 Universal application
● Macro 101 "Universal application"
● Setpoint via a 0...10 V signal
● Analog setpoint can be overridden with 3 fixed speeds
● Flying restart and automatic restart activated
● Essential service mode (in the event of fire) with a
fixed setpoint
● Error message: Digital output 0
● Status display: Digital output 2
Notice:
In the case of the extended emergency mode, the customer
can no longer lodge any claims for warranty. Extended
emergency mode and the faults which arise during this
mode are logged in a password-protected memory and can
be read by the repair center.
Parameter
Value
Description
p731 r52.2 Signal source for terminal DO 1
p756[0] 0 Unipolar voltage input (0...10 V)
p840[0] r20047.0 ON / OFF (OFF1)
p1000[0] 32 Speed setpoint selection
p1001[0] 800 rpm Fixed speed setpoint 1
p1002[0] 1000 rpm Fixed speed setpoint 2
p1003[0] 1200 rpm Fixed speed setpoint 3
p1015[0] 1500 rpm Fixed speed setpoint 15
p1020[0] r722.3 Fixed speed setpoint selection bit 0
p1021[0] r722.4 Fixed speed setpoint selection bit 1
p1022[0] r722.5 Fixed speed setpoint selection bit 2
p1071[0] r20220 Main setpoint scaling
p1113[0] 0 Setpoint inversion
p1200[0] 1 Flying restart always active (start in setpoint direction)
p1210 26 Acknowledging all faults and restarting for an ON command
p2103[0] 0 Acknowledge faults
