Configuring communication
55 |
Use macros to select predefined input and output circuits:
● 12: Enable via DI0, setpoint via AI0 (factory setting)
● 109: Enable and setpoint via Modbus
● 110: Enable and setpoint via BACnet
You can find further macros and applications in the "Installation / Commissioning"
guide.
Define the minimum and maximum frequencies at which the motor will operate
when it is enabled.
Enter the ramp-up and ramp-down times in seconds.
Recommended ramp time for fans
0.37 – 3 kW 30s
4 – 15 kW 60s
18.5 – 30 kW 90s
37 – 90 kW 120s
A summary of the settings is displayed. If you wish to change a specific value,
you can select it directly.
Completion of basic commissioning is confirmed. When you select "Save", the
motor data are calculated and the inputs saved.

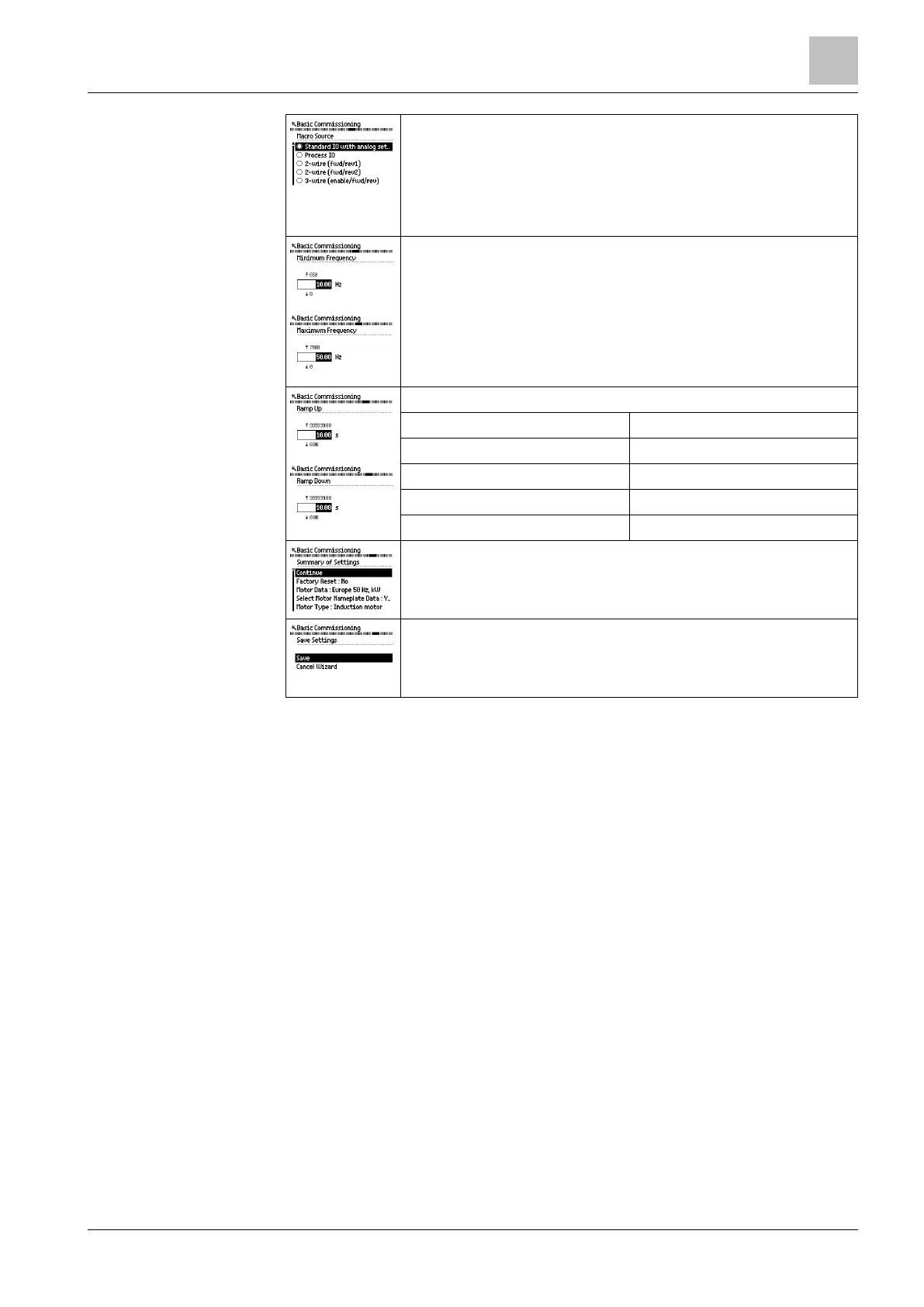

Table 10: Commissioning with IOP-2
6.5 Configuring communication
You are currently performing, or have already completed, basic commissioning.
1. When you reach the appropriate stage of basic commissioning, select the
macro (MacPar) 108 (USS fieldbus), 109 (Modbus), 110 (BACnet) or 114 (P1
fieldbus).
2. If the basic commissioning has already been performed, change the value
manually, for example:
P0010 = 1 (parameter filter quick commissioning)
P0015 = 108 (macro 108)
P0010 = 0 (parameter filter ready)
3. If the communication function is only to monitor the drive, but not to control it,
proceed as follows:
4. Basic commissioning with macro 108, 109, 110 or 114.
5. P0010 = 1 (parameter filter quick commissioning)
P0015 = 12 (macro 12, control via digital input and analog setpoint)
P0010 = 0 (parameter filter ready)
