p2267 120% Technology controller upper limit actual value
p2268 -20% Technology controller lower limit actual value
p2280 1 Technology controller proportional gain
p2285 30s * Technology controller integral time
P2293 30s * Technology controller ramp-up/ramp-down time
p2306 0 Technology controller fault-signal inversion (heating or cooling)
* The time settings, such as "Technology controller integral action time" are dependent on the used
frame size. For further information, refer to the Operating Instructions for the Control Unit
(A5E34257946A AB).
The recommended PID controller settings can be parameterized by means of a macro:
● P0010 = 1
● P0015 = 120 "PID settings for pumps or fans (only for optimization)"
● P0010 = 0
6.6.3 Overview of parameters

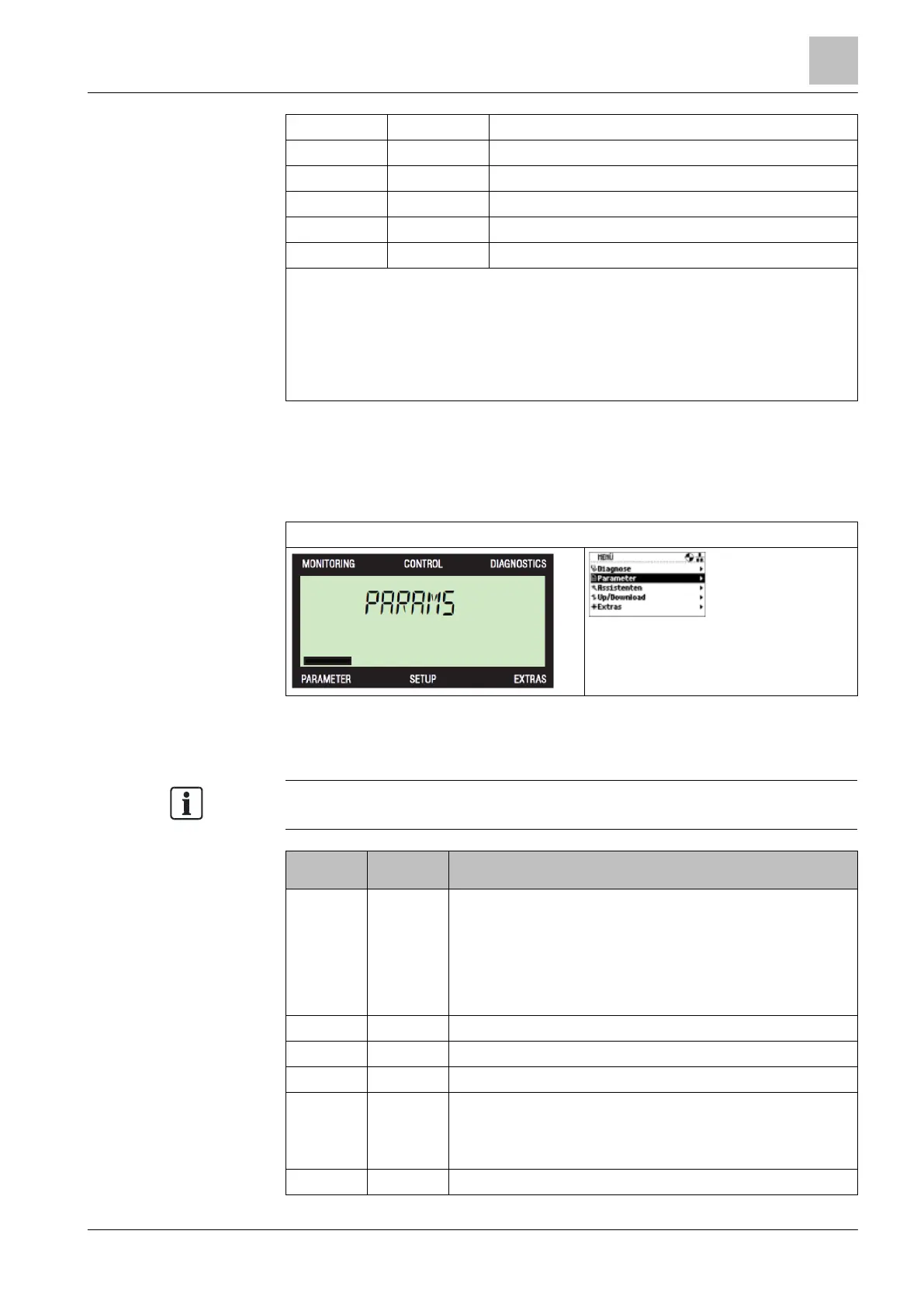

Open the Parameters menu
Selection of the Parameters menu on BOP-2 and IOP-2
Table 11: Parameter selection
Overview of parameters
The table below contains only an excerpt from the parameter list. You can find a
complete list of parameters in List Manual CU230P (A5E02297932A AE).
Parameter
Factory
settings
Function
p0601 0 Motor temperature sensor type:
0: No sensor
1: PTC warning & timer
2: KTY84
4: Bimetallic NC contact warning & timer
6: Pt 1000
p0730 r52.3 Digital output 0: Fault active
p0731 r52.7 Digital output 1: Alarm active
p0732 r52.2 Digital output 2: Operation enabled. Motor in operation.
p0748 000 Invert digital outputs (0 = do not invert, 1 = invert)
Bit 0: DO 0
Bit 1: DO 1
Bit 2: DO 2
r0755[0..3] - Analog inputs, actual value in percent
