Preparing for commissioning
51 |
6.3 Preparing for commissioning
Before starting commissioning, you must know the answer to the following
questions:
● What data does my variable speed drive have?
● Which interfaces of the variable speed drive are active?
● How is the variable speed drive integrated in the higher-level control system?
● How is my variable speed drive set?
● What technological requirements must the drive fulfill?
● Which motor is connected to the variable speed drive?
● In which region of the world is the motor used?
● How is the motor connected?
● What is the operating temperature of the motor?
For further information about the individual questions above, please refer to
Chapter 5.2 in the Operating Instructions for the Control Unit (A5E34257946A
AB).
6.4 Carrying out basic commissioning
Basic commissioning is the first step of the commissioning procedure. The BOP-2
and IOP-2 operator panels guide you through the basic commissioning process
and prompt you to enter the most important data of your variable speed drive.
If you are using the variable speed drive without operator panel, you can perform
basic commissioning with an external computer and the STARTER software.
Please refer to the Operating Instructions for the Control Unit (A5E34257946A
AB), Chapter 5.4.2

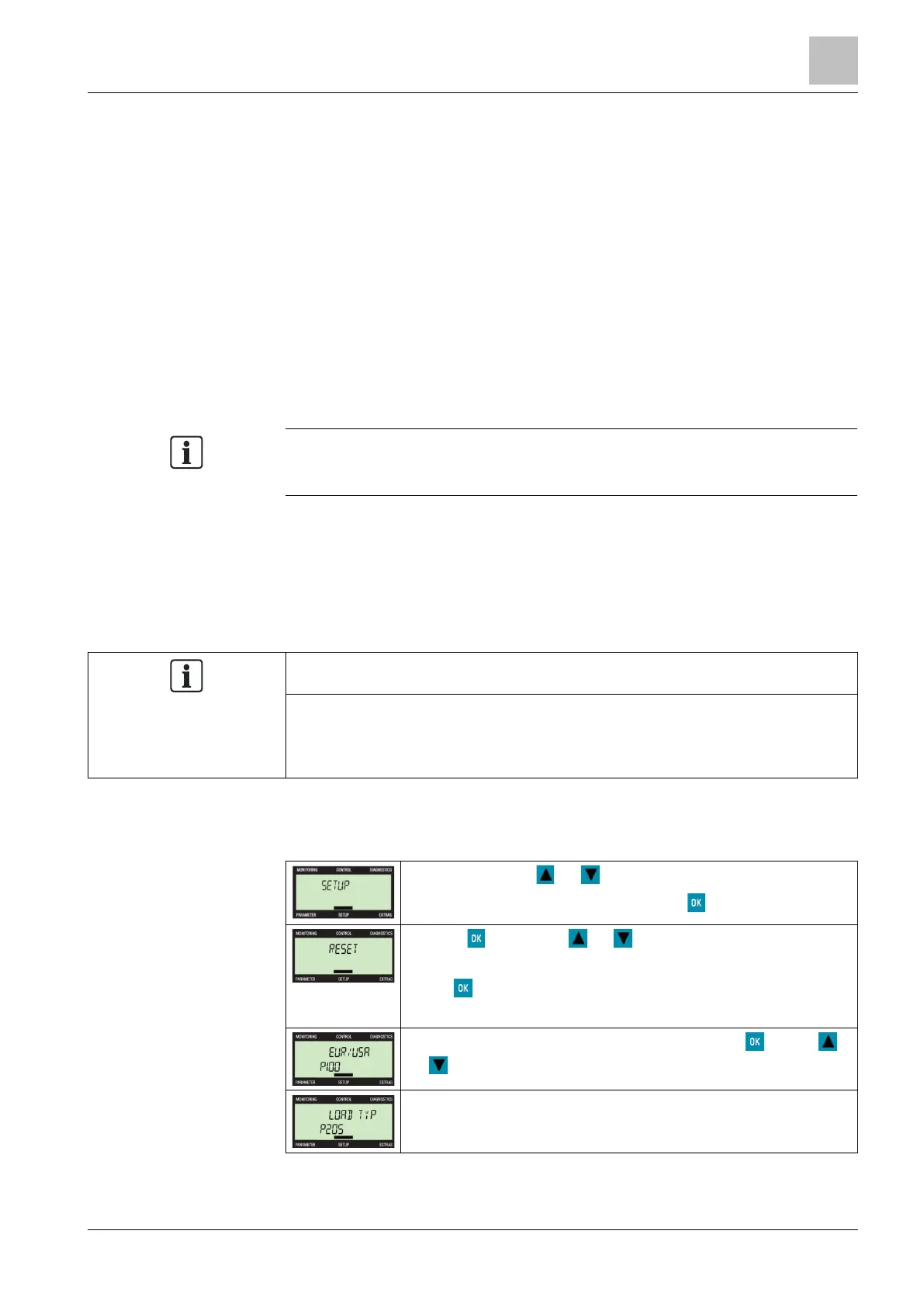

Commissioning with BOP-2
To enter the data for basic commissioning with the BOP-2, proceed as follows:
1. Press the keys ESC, and to navigate to the SETUP menu.
2. To start the basic commissioning process, press .
1. Use key and then keys and to choose between "YES" (restore
factory settings) or "NO" (do not restore factory settings.
2. Press to confirm your selection.
⇨ The next step in the commissioning process is then displayed automatically.
Set the regional settings for the motor, e.g. kW and Hz. Press and then
and in order to change the parameter value.
Specify the overload capability of the drive.
LOW OVL (duty cycle with "Low Overload") is normally used. Alternatively: HIGH
OVL (duty cycle with "High Overload").
