Hicom 100 E Version 2.1, Service manual
5-15
Installation
5.12.1 Pin assignment of the V.24 adapter cable
5.12.1.1 V.24 connection to MB

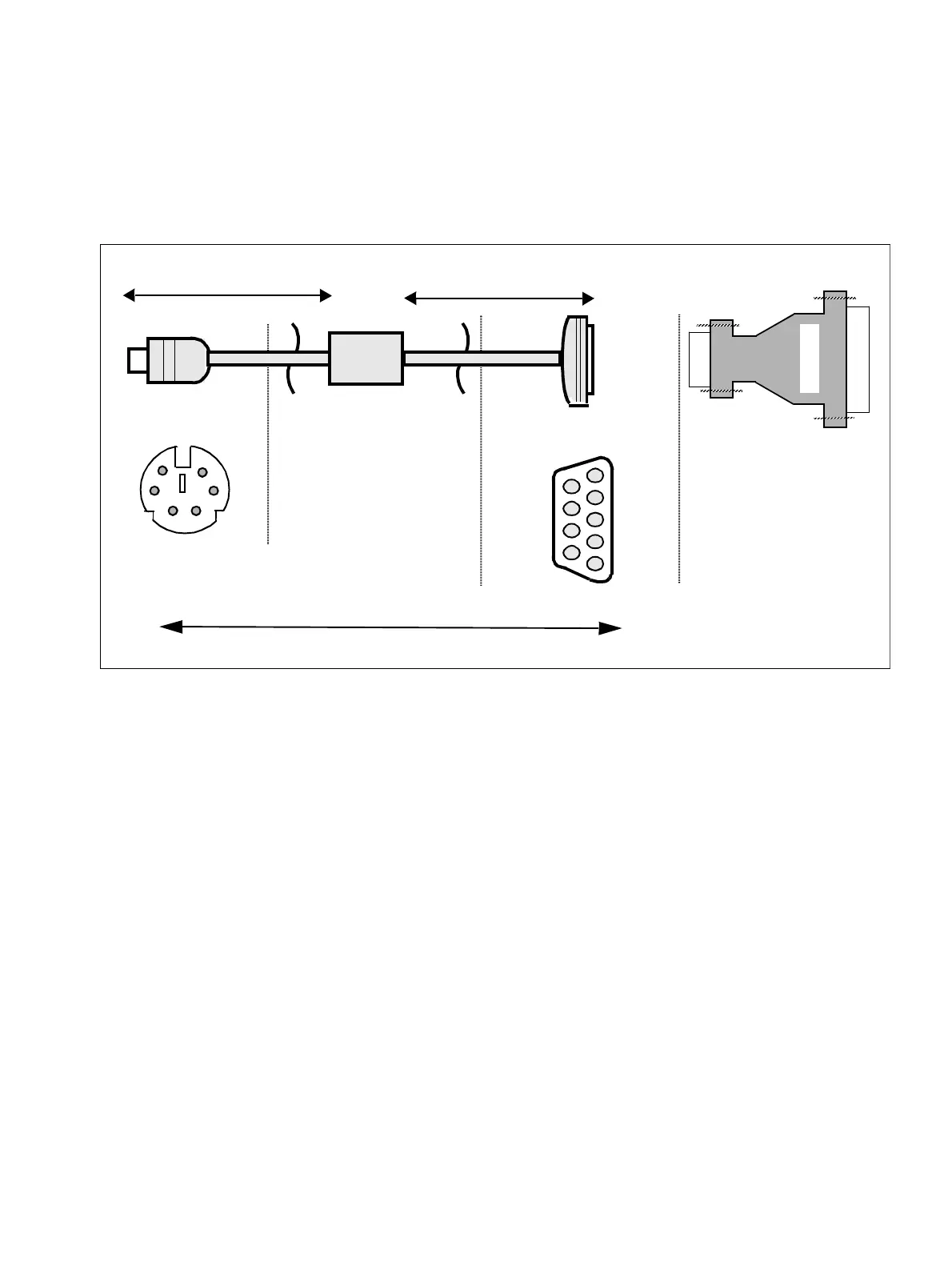

Figure 5-7 Pin assignment of the V.24 adapter cable to MB
Length approx. 15 cm
6-pin
Mini-DIN plug
9-pole
SubD socket
free 9
CTS 8
RTS 7
DSR 6
1
2
34
56
RTS
CTS
GND
TxD
RxD
VCC
5 GND
4 DTR
3 TxD
2 RxD
1 CD
Length approx. 260 cm
Level matching
in the cable
Adapter
MB
PC
Printer
Modem
