Setting Up the Telephone
13
Setting Up the Telephone
This chapter describes how to connect the individual elements of the
optiPoint
410/420 with each other ( Installing the Telephone) and how to
start up the device ( Preparing for Operation).
Installing the Telephone

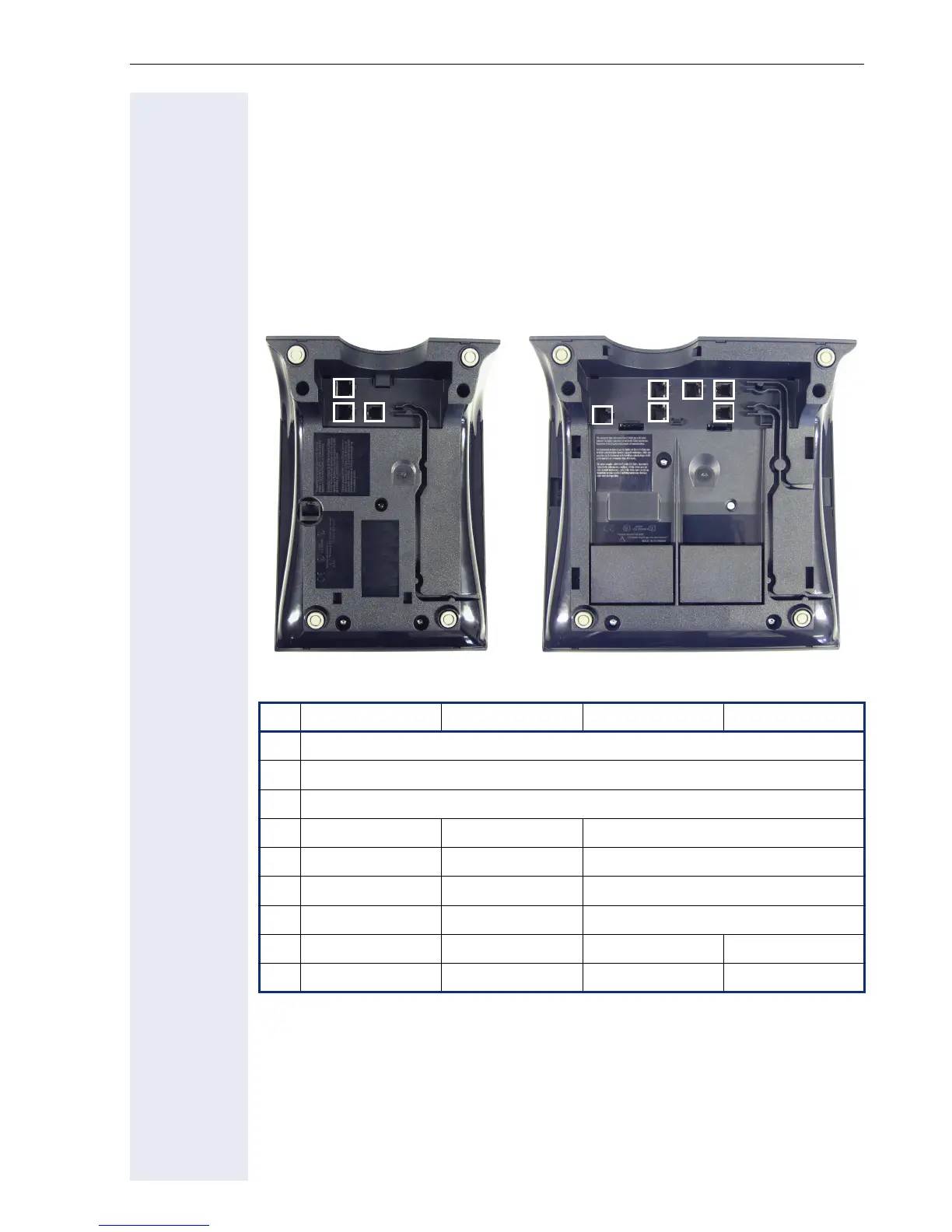

Connectors on the underside of the phone
entry economy standard advance
1 LAN network connection (optional with PoL
[1]
)
[1] Power over LAN:
If power is supplied over the LAN cable, no local power supply is required.
2 Handset
3 Connector for a local power supply unit (optional
[1]
)
4 - - Module connectors
5 - - LAN connection to the PC
6 - - Headset connector
7 - - Adapter 1
8 - - Adapter 2 -
9 - - - USB Master
optiPoint 410 entry optiPoint 410/420 standard
2
1
3
1
2
3
6
4
5
7
8
9
