Cancellation of the infeed from the start to the end







6B$!
6B%!
6B:!
) 6B.!
6B8!
6B*$8*(!
6B8!

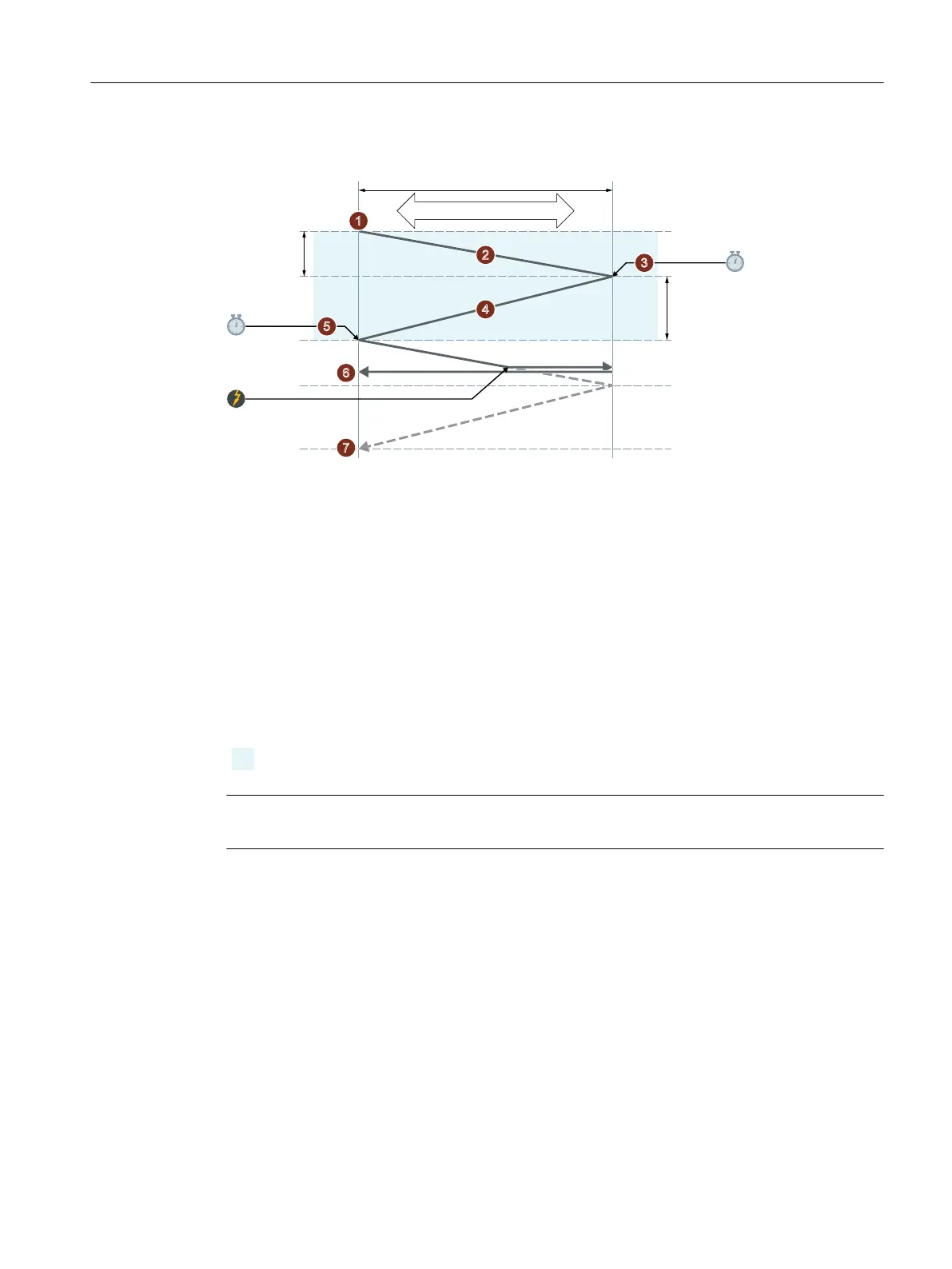

â‘ Start of the cycle at the current position of the oscillating axis with infeed depth 0.
â‘¡ Traversing of the oscillating axis with the grinding width <S_W> as travel path and feedrate for
transverse infeed <S_K> with continuous increase in the infeed depth up to the infeed depth at
the start <S_A>.
â‘¢ Sparking out with the sparking-out time <S_U>.
â‘£ Traversing of the oscillating axis with the grinding width <S_W> as travel path to the starting point
and feedrate for transverse infeed <S_K> with continuous increase in the infeed depth up to the
infeed depth at the end <S_B>.
⑤ Sparking out with the sparking-out time <S_U>.
â‘¥ Cancel signal: The depth infeed is canceled. The machining stops when the next start point is
reached.
⑦ Without Cancel signal: The sequence is repeated until the programmed number of
repetitions <S_H> has been reached.
Indicates reiterating sequential steps.
Note
The sequence cannot be interrupted with a single block.
Resources
As resources, the cycle uses a block-wide synchronized action and a synchronized action
variable. The synchronized action is determined dynamically from the free area of the
synchronized action range (CUS.DIR - 1 ..., CMA.DIR - 1000 ..., CST.DIR – 1199 ...).
SYG_IS[1] is used as the synchronized action variable.
Work preparation
3.25 Programming cycles externally
NC programming
Programming Manual, 12/2019, 6FC5398-2EP40-0BA0 1139
