&DQDOVREHURXQGLQJ
RUFKDPIHU
=
;=
;=
;=
;=
$1*
;
$1*

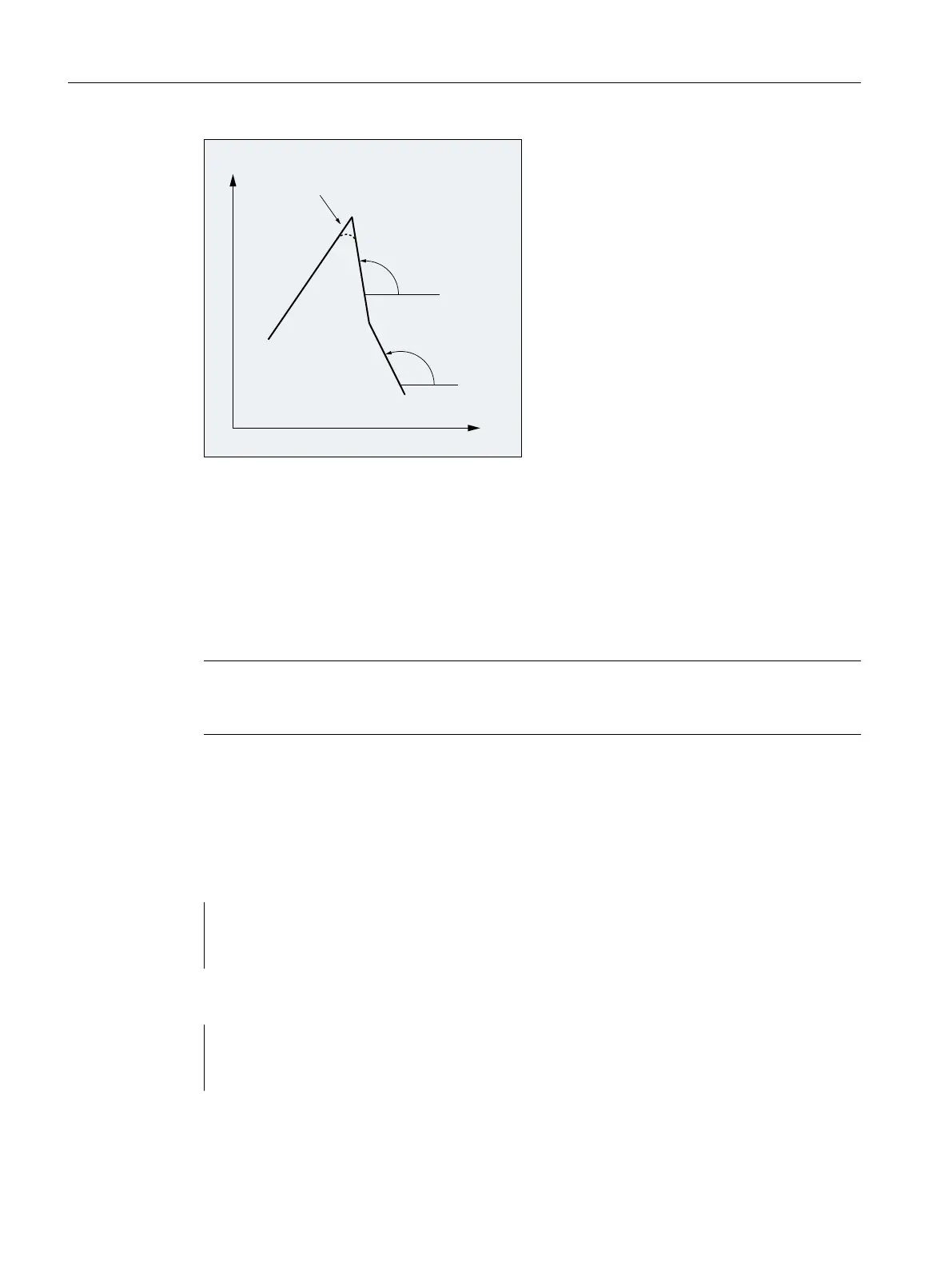

ANG1: Angle of the first straight line
ANG2: Angle of the second straight line
X1, Z1: Start coordinates of the first straight line
X2, Z2: End point coordinates of the first straight line or
start coordinates of the second straight line
X3, Z3: End point coordinates of the second straight line or
start coordinates of the third straight line
X4, Z4: End point coordinates of the third straight line
Note
The programming described here for a three point contour definition can be expanded
arbitrarily for contour definitions with more than three points.
Syntax
Programming of the end point of the first straight line by specifying the angle
● Corner as transition between the straight lines:
ANG=…
X… Z… ANG=…
X… Z…
● Rounding as transition between the straight lines:
ANG=… RND=...
X… Z… ANG=… RND=...
X… Z…
● Chamfer as transition between the straight lines:
Fundamentals
2.9 Motion commands
NC programming
218 Programming Manual, 12/2019, 6FC5398-2EP40-0BA0
