Example: Turning







3
3
3
3
;
=

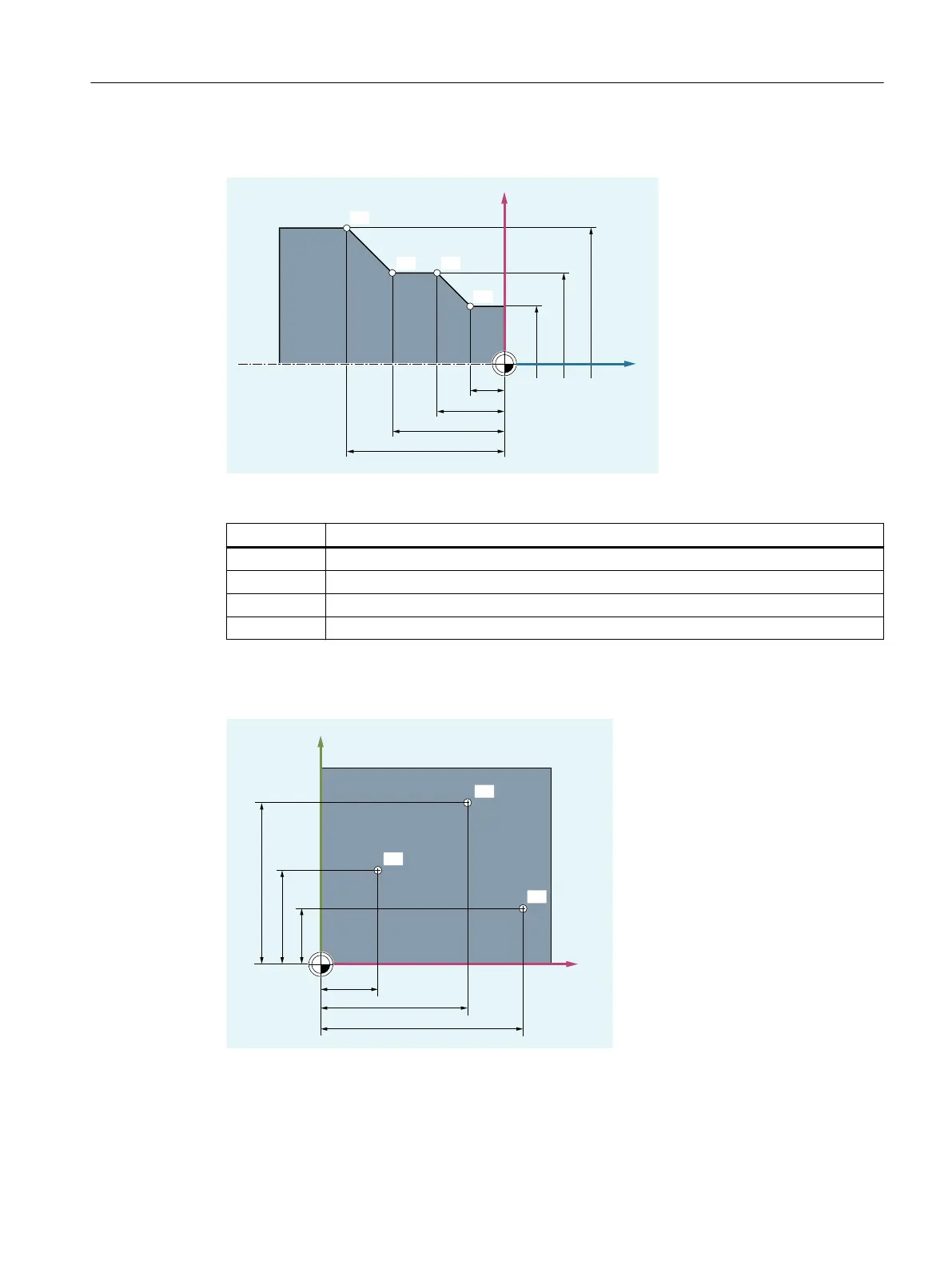

In absolute dimensions, the following position specifications result for points P1 to P4:
Position
Position specification in absolute dimensions
P1
X25 Z-7.5
P2
X40 Z-15
P3
X40 Z-25
P4
X60 Z-35
Example: Milling






<
;
3
3
3
Fundamentals
2.1 Fundamental Geometrical Principles
NC programming
Programming Manual, 12/2019, 6FC5398-2EP40-0BA0
31
30
32
