Effectiveness of the modified cutting data
The modified cutting edge position and the modified cutting edge reference point are
immediately effective when programming, even for a tool that is already active. A tool does not
have to be re-selected for this purpose.
Example

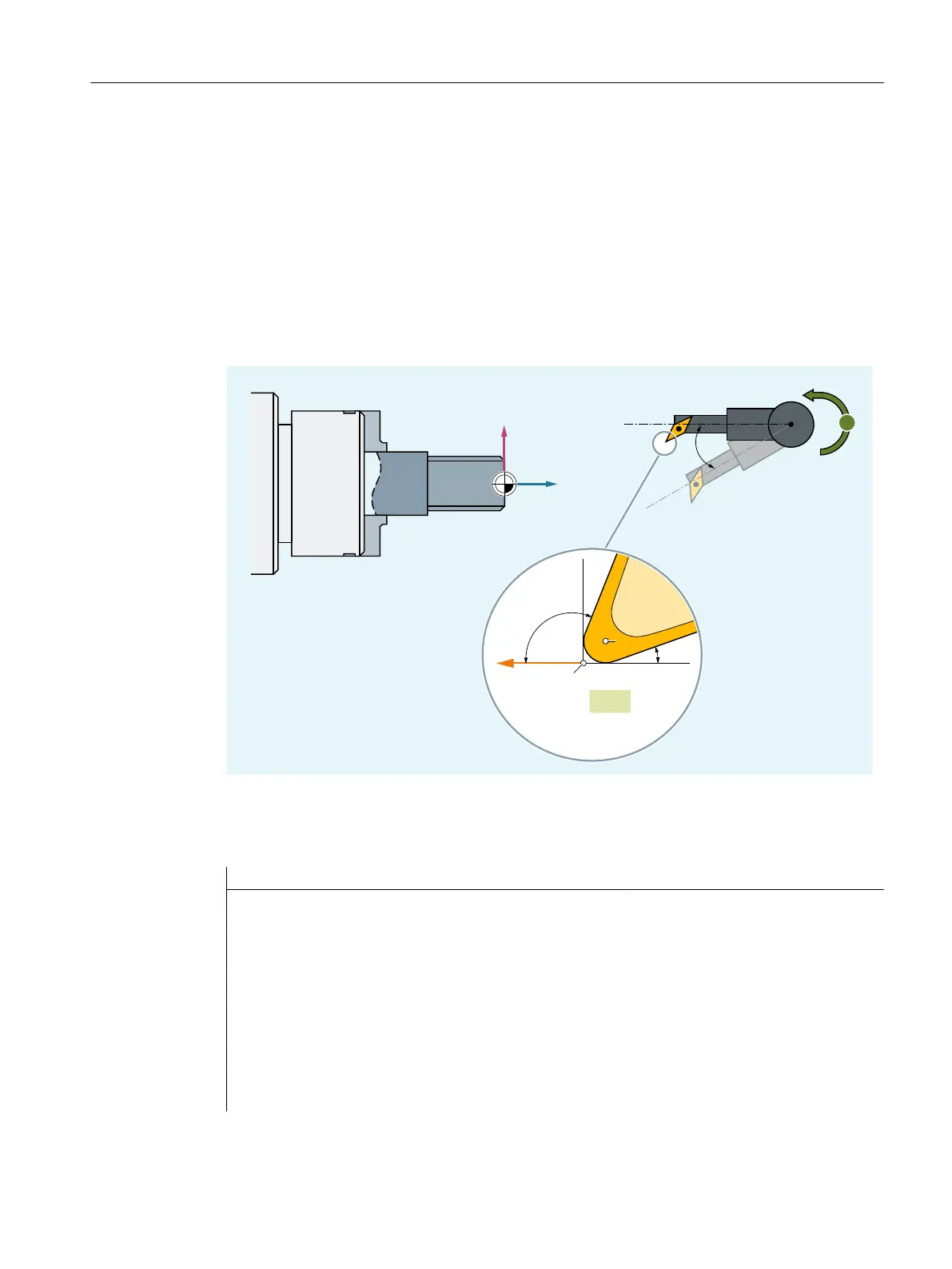

For a tool with cutting edge position 3 and an orientable tool carrier that can rotate the tool
around the B axis, the cutting edge position shall be modified after a tool rotation with the aid
of the CUTMOD command.
6
6/
3
r
r
r
;
=
%
S: Cutting edge center point
P: Cutting edge reference point
SL: Cutting edge position
Program code Comment
N10 $TC_DP1[1,1]=500
N20 $TC_DP2[1,1]=3 ;Cutting edge position
N30 $TC_DP3[1,1]=12
N40 $TC_DP4[1,1]=1
N50 $TC_DP6[1,1]=6
N60 $TC_DP10[1,1]=110 ; Holder angle
N70 $TC_DP11[1,1]=3 ; Cut direction
N80 $TC_DP24[1,1]=25 ; Clearance angle
N90 $TC_CARR7[2]=0 $TC_CARR8[2]=1 $TC_CARR9[2]=0 ; B axis
Work preparation
3.13 Tool offsets
NC programming
Programming Manual, 12/2019, 6FC5398-2EP40-0BA0 805
