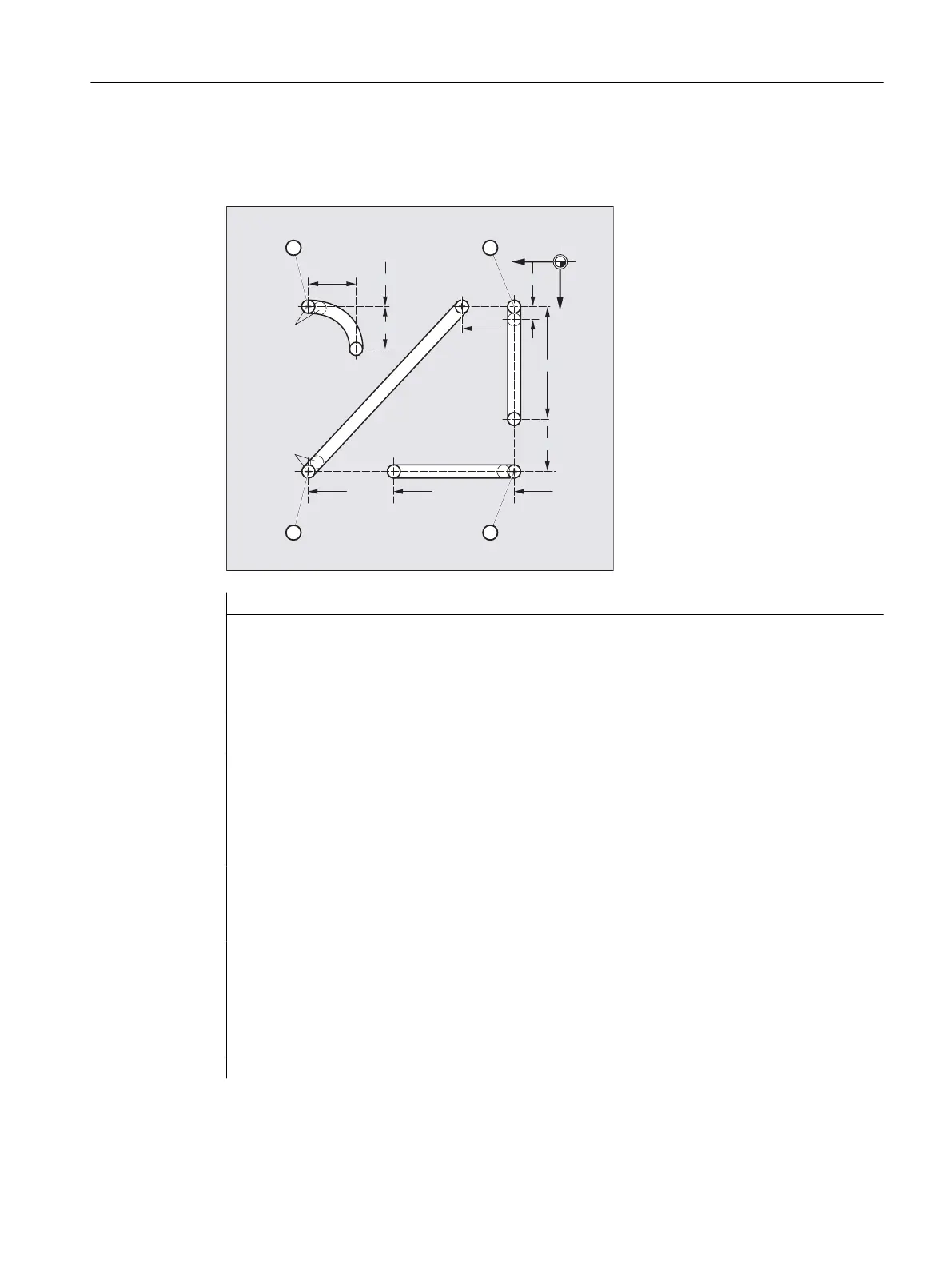

Example 1
The programmed nibbling segments should be automatically split-up into path segments.
62.5
<=3
210
365
525
62.5
125
75
75
250
Y
X
4
1
3
2
<=3
<=4
130
Program code Comment
N100 G90 X130 Y75 F60 SPOF ; Positioning at starting point 1
N110 G91 Y125 SPP=4 SON ; Nibbling on; maximum path seg-
ment length
for automatic path segmentation: 4
mm
N120 G90 Y250 SPOF ; Nibbling off; positioning to
starting point 2
N130 X365 SON ; Nibbling on; maximum path seg-
ment length
for automatic path segmentation: 4
mm
N140 X525 SPOF ; Nibbling off; positioning to
starting point 3
N150 X210 Y75 SPP=3 SON ; Nibbling on; maximum path seg-
ment length
for automatic path segmentation: 3
mm
N160 X525 SPOF ; Nibbling off; positioning to
starting point 4
N170 G02 X-62.5 Y62.5 I J62.5 SPP=3 SON ; Nibbling on; maximum path seg-
ment length
for automatic path segmentation: 3
mm
N180 G00 G90 Y300 SPOF ; Nibbling off
Work preparation
3.19 Punching and nibbling
NC programming
Programming Manual, 12/2019, 6FC5398-2EP40-0BA0 969
