8. Drilling/centering

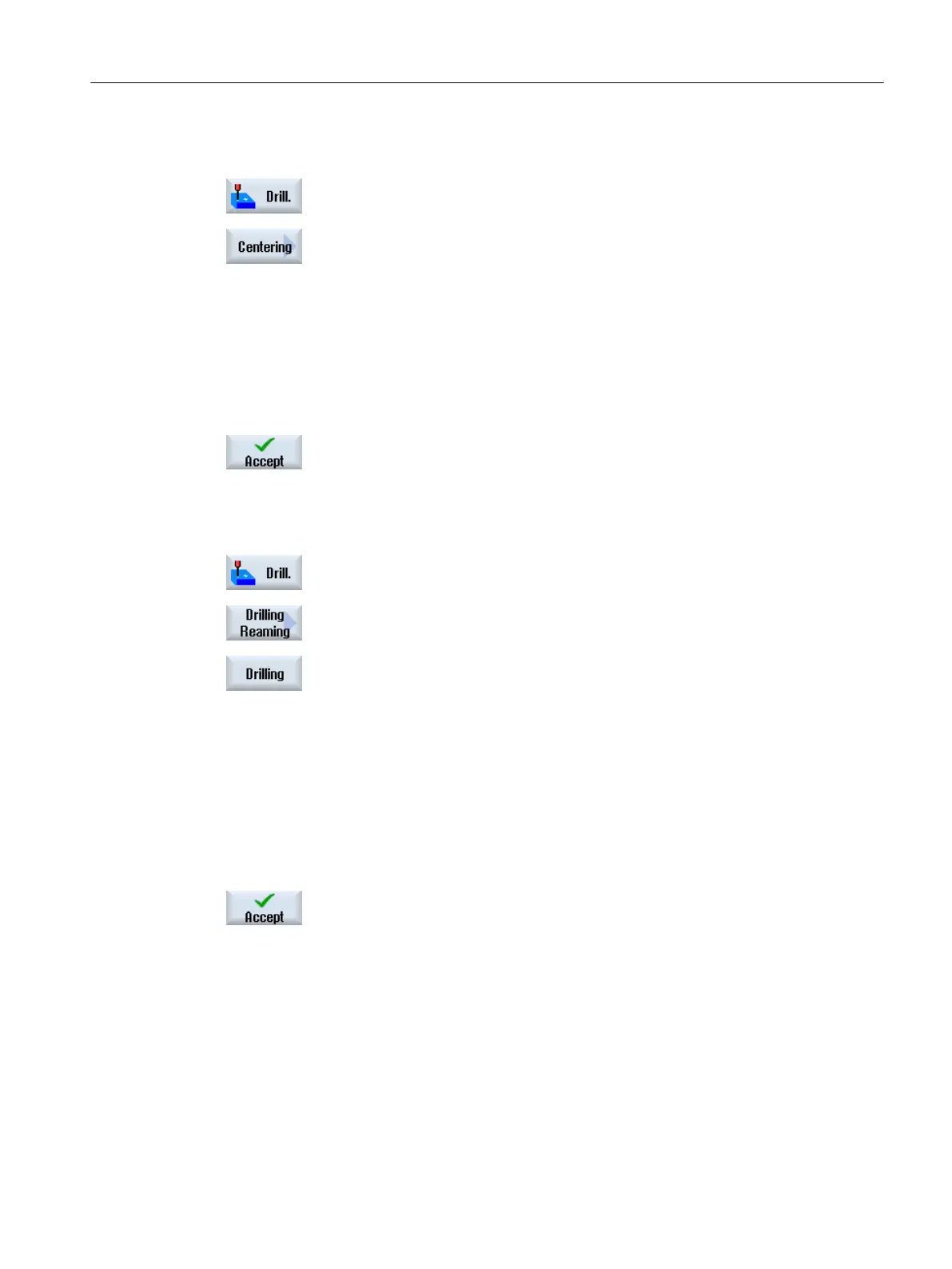

1. Press the "Drilling" and "Centering" softkeys.
The "Centering" input window opens.
2. Enter the following technology parameters:
T Center‐
ing_tool_10mm
D1 F 1000 mm/min S 12000 rev/min
3. Enter the following parameters:
Diameter/tip Diameter
∅ 5
DT 0.6 s
4. Press the "Accept" softkey.
9. Drilling/reaming
1. Press the "Drilling", "Drilling reaming" and "Drilling" softkeys.
The "Drilling" input window opens.
2. Enter the following technology parameters:
T DRILL10 D1 F 500 mm/min S 1600 rev/min
3. Enter the following parameters:
Diameter/tip Tip
Z1 -25abs
Predrilling No
Through drilling No
DT 0
4. Press the "Accept" softkey.
Creating a ShopMill program
9.18 Example, standard machining
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 363
