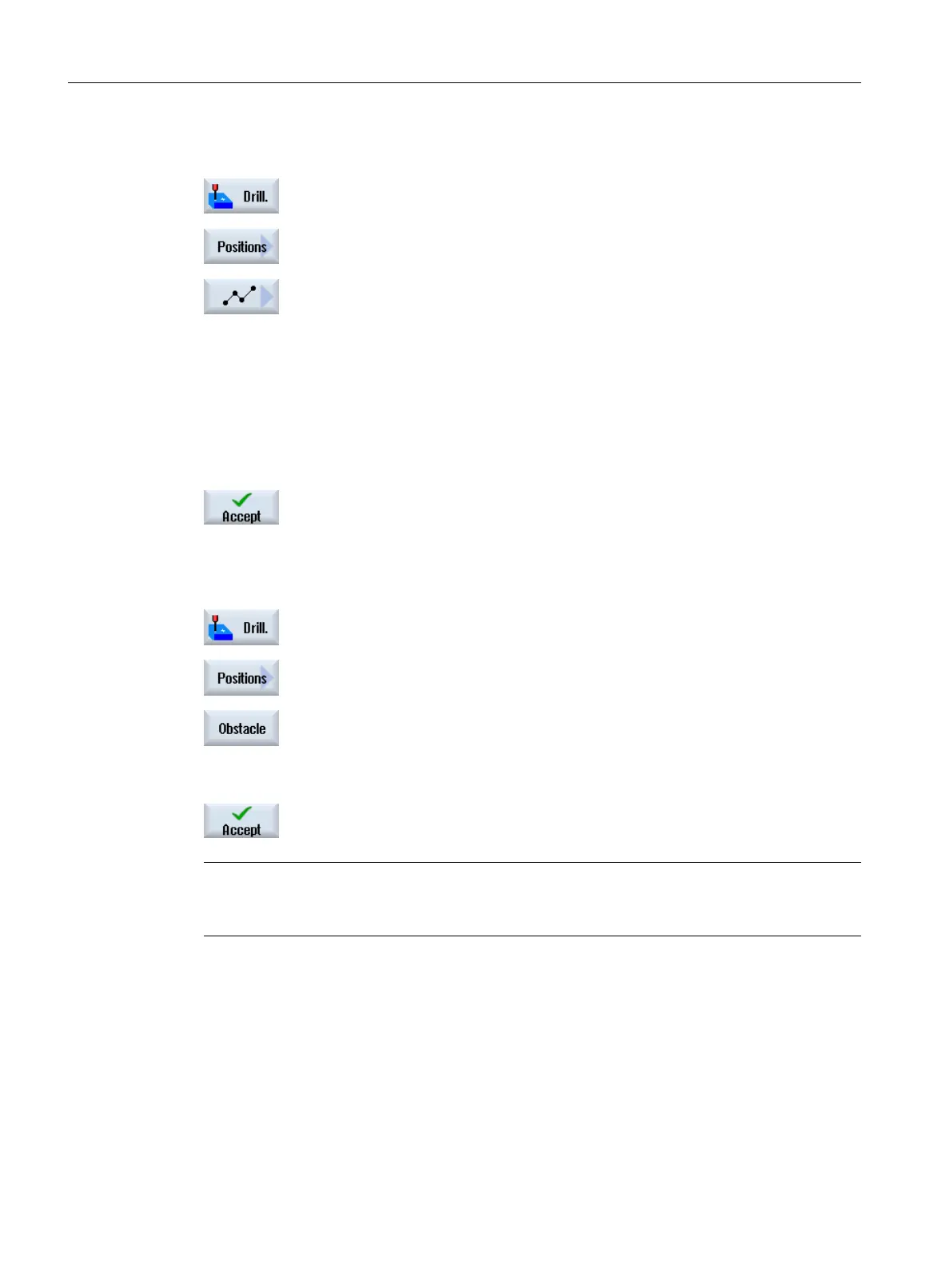

10. Positions
1. Press the "Drilling", "Positions" and "Drilling Positions" softkeys.
The "Any Positions" input window opens.
2. Enter the following parameters:
Right-angled
Z0 -10abs
X0 15abs
Y0 15abs
X1 165abs
Y1 15abs
3. Press the "Accept" softkey.
11. Obstacle
1. Press the "Drilling", "Positions", and "Obstacle" softkeys.
The "obstacle" input window opens.
2. Enter the following parameters:
Z 2abs
3. Press the "Accept" softkey.
Note
If this obstacle cycle is not inserted, the drill will violate the right-hand corner of the island
contour. Alternately, you could increase the safety clearance.
Creating a ShopMill program
9.18 Example, standard machining
Milling
364 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
