Installation
136/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9

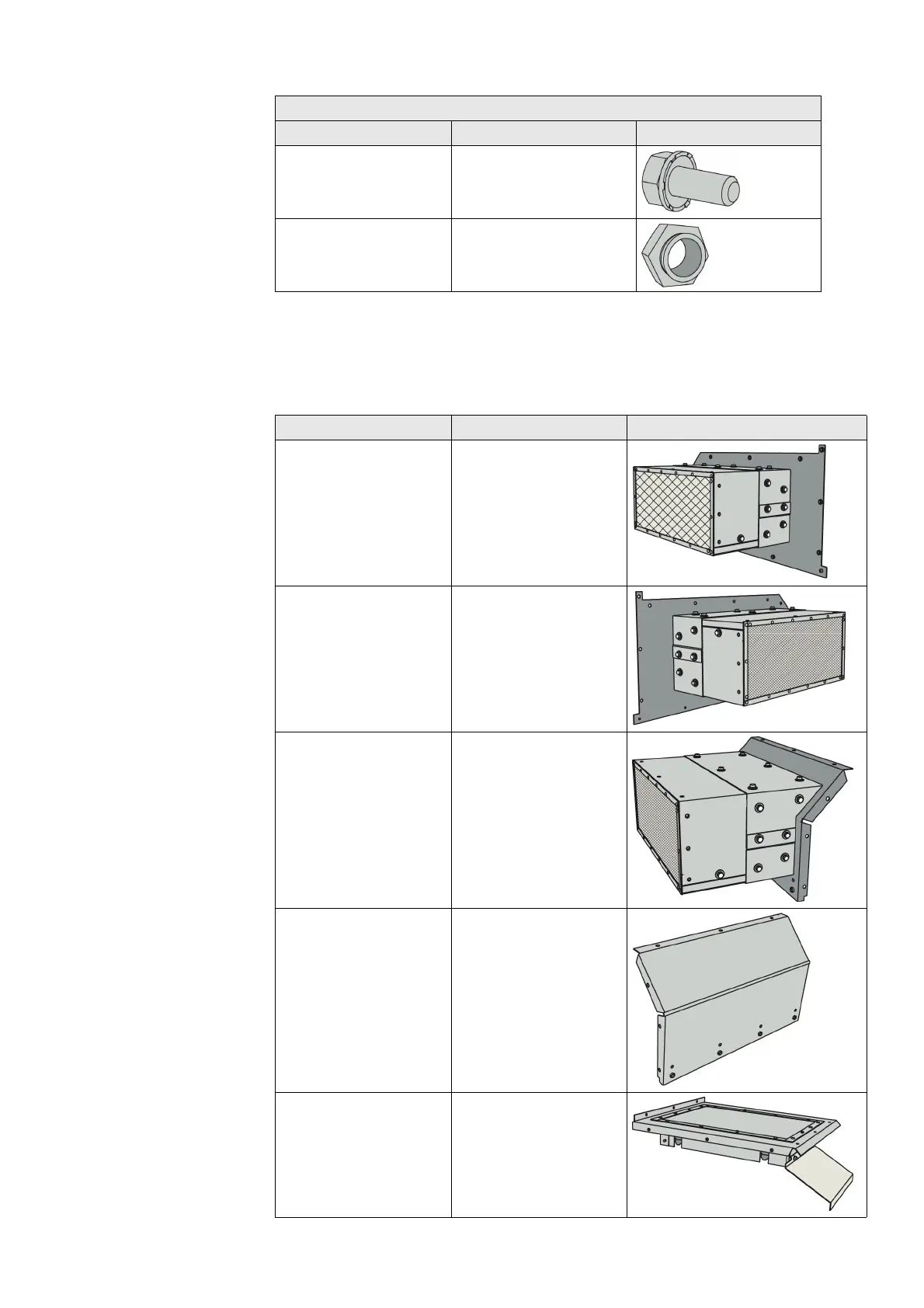

Duct elements on the switchgear
For installation of the horizontal pressure relief duct on the switchgear, the following
elements are required. Here, the elements for a panel width of 600 mm are shown as an
example.
Bolting material
Designation Size Illustration
Bolt-and-washer assembly M8
Setnut M8
Designation Detailed designation Illustration
Side plate Connecting element, lateral
evacuation, left side (with pre-
assembled evacuation duct
element)
Side plate Connecting element, lateral
evacuation, right side (with pre-
assembled evacuation duct
element)
Rear wall Connecting element, rear
evacuation, (with pre-
assembled evacuation duct
element)
Rear wall Rear wall, closed
Top cover Top cover with ventilation
