802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 137/293
Installation
Mounting the side plates
Before the horizontal pressure relief duct can be installed, the switchgear termination must be
mounted (see page 143, "Installing the switchgear termination").
Perform the installation from the front, starting with the left end panel.
Installation with lateral evacuation to the left is shown here as an example.

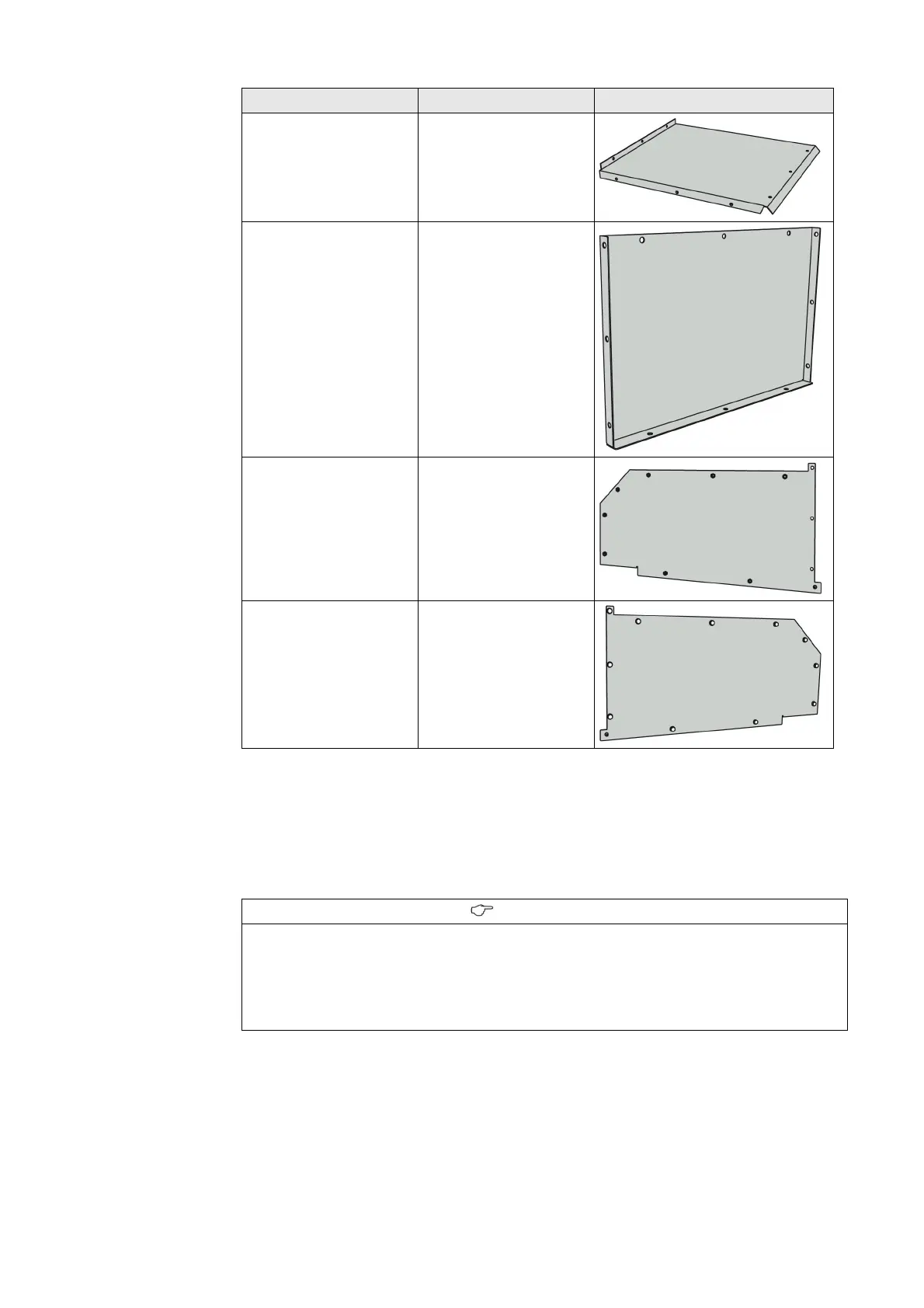

Top cover Top cover, closed
Front plate Front plate, closed
Side plate Side plate, closed, left side
Side plate Side plate, closed, right side
INFORMATION
If a higher low-voltage compartment is mounted, it is not possible to install the horizontal
pressure relief duct from the front.
➭ Install from the top or from the side.
Or
➭ Remove the low-voltage compartment and install from the front.
Designation Detailed designation Illustration
