Installation
138/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9

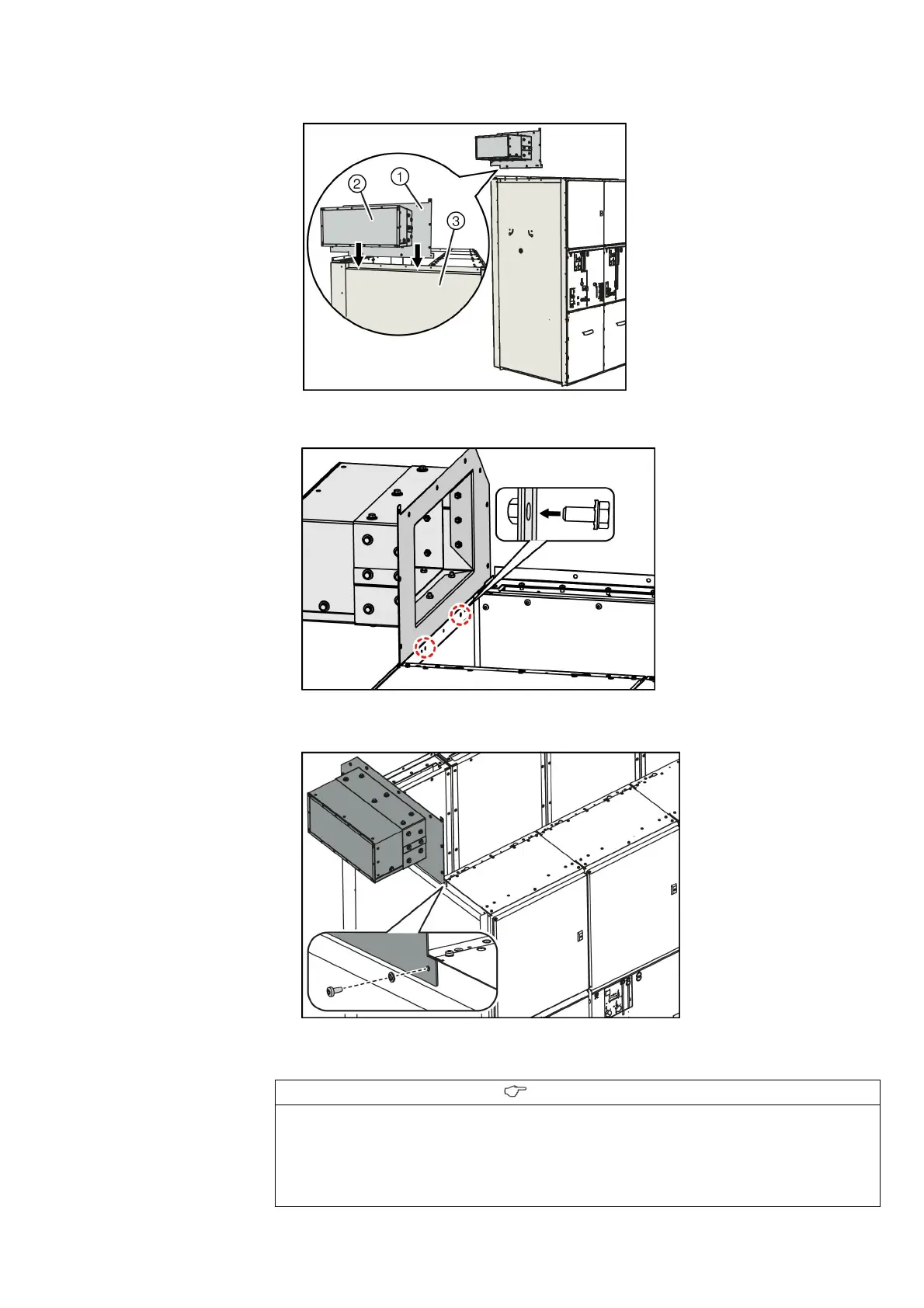

➭ Place the left-hand side plate ① onto the switchgear termination ③ .
➭ Bolt the side plate together with the switchgear termination using 2 bolts M8x20.
➭ Bolt the side plate laterally together with the rear wall of the low-voltage compartment
using one self-tapping bolt M5 and one washer.
➭ Mount the right-hand side plate on the right end panel.
✔ The side plates of the horizontal pressure relief duct are installed.
①
Side plate
②
Pre-assembled
evacuation
③
Switchgear termination
INFORMATION
If the installation of the top cover is not possible due to the height of the switchgear room, the
rear wall and top cover must be pre-assembled.
➭ Place the top cover on the rear wall.
➭ Bolt the top cover together with the rear wall using 3 bolts M8, and place it on the
switchgear.
