Installation
➭ Plug pre-assembled bus wires on the bus wire terminals. Observe the coding of the 2-pole,
4-pole and 10-pole plugs.
➭ Plug the cables for the circuit-breaker and the three-position switch on the associated
terminals.
➭ If required, connect the current and voltage transformer leads.
Connecting the STG plug with the VBSTB4 modular terminal
For 2-, 4- and 10-pole STG plugs make PHOENIX CONTACT, observe the instructions for
installation and removal given hereafter.

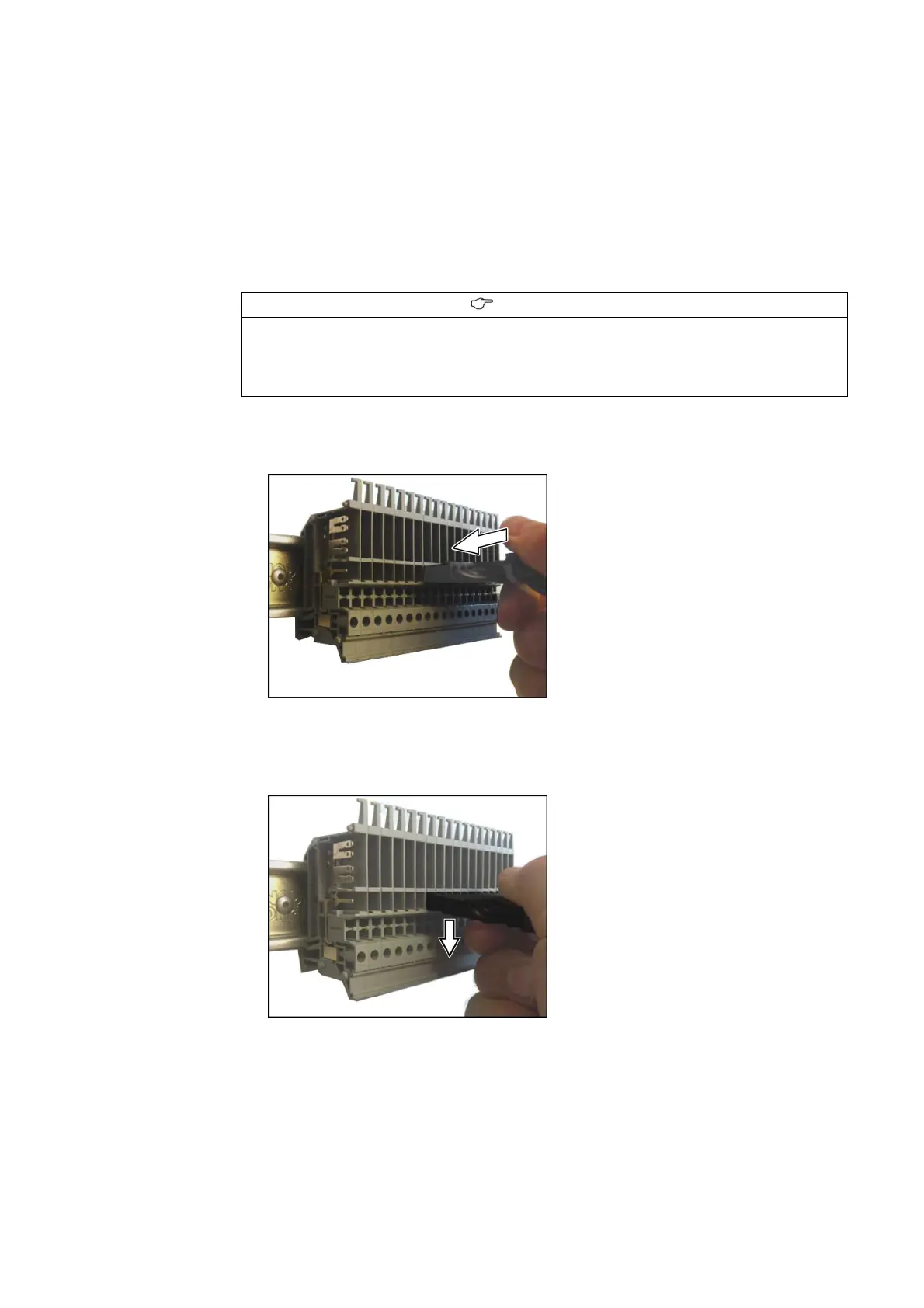

Mounting the
STG plug
➭ Hold the STG plug horizontally over the plug shaft of the VBSTB4 modular terminal.
➭ Push the STG plug horizontally into the modular terminal until the STG plug latches in.
✔ The STG plug is latched into the modular terminal and mounted.
Removing the
STG plug
➭ Push the STG plug slightly to the screwing side until the latching noses come out of the
latching slots of the modular terminal.
INFORMATION
The information stated herein refers to the user instructions of PHOENIX CONTACT. The user is
obliged to inform himself about the latest state of the instructions before installation or
removal of the STG plugs, and to observe the manufacturer's instructions.
➭ Manufacturer's site: https://www.phoenixcontact.com
