Operation
210/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9

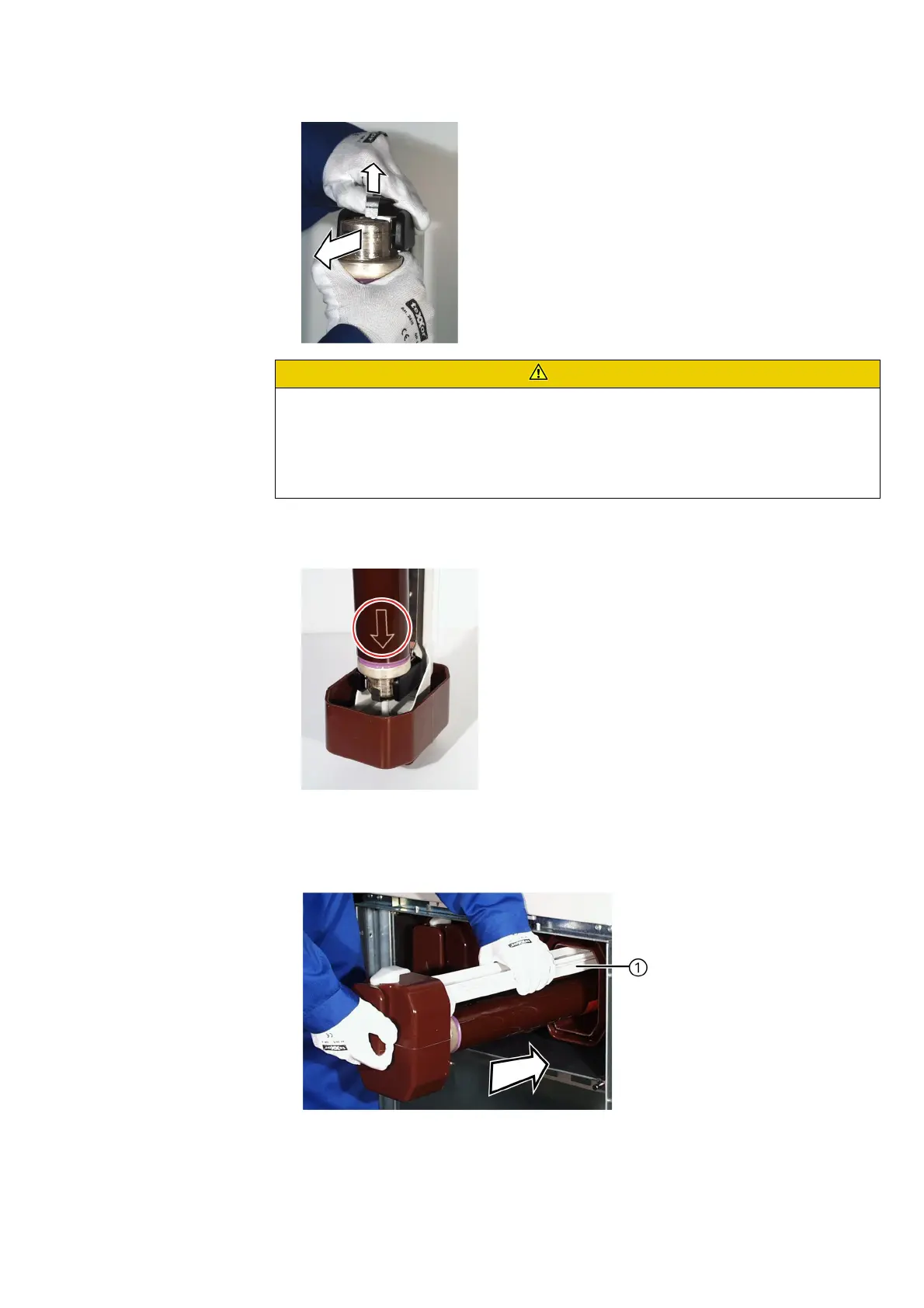

Replacing HV HRC fuse-
links
➭ Pull the fixing bracket upwards and pull out the fuse.
➭ Fit new HV HRC fuse-link into the contact springs. The arrow on the HV HRC fuse-link must
point towards the cover of the fuse slide.
➭ Pull the retaining bracket upwards at the fuse slide and press the HV HRC fuse-link into the
mounting clips.
➭ Insert the fuse slide with the HV HRC fuse-link in the guide slot. The sliding rail ① must point
upwards.
CAUTION
Explosion hazard due to internal arc
Can cause injury and property damage.
The striker of a fuse-link installed the other way round cannot open the three-position switch-
disconnector in case of tripping.
➭ Insert fuse-links with the contact side of the striker into the contact of the handle.
