802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 211/293

Operation

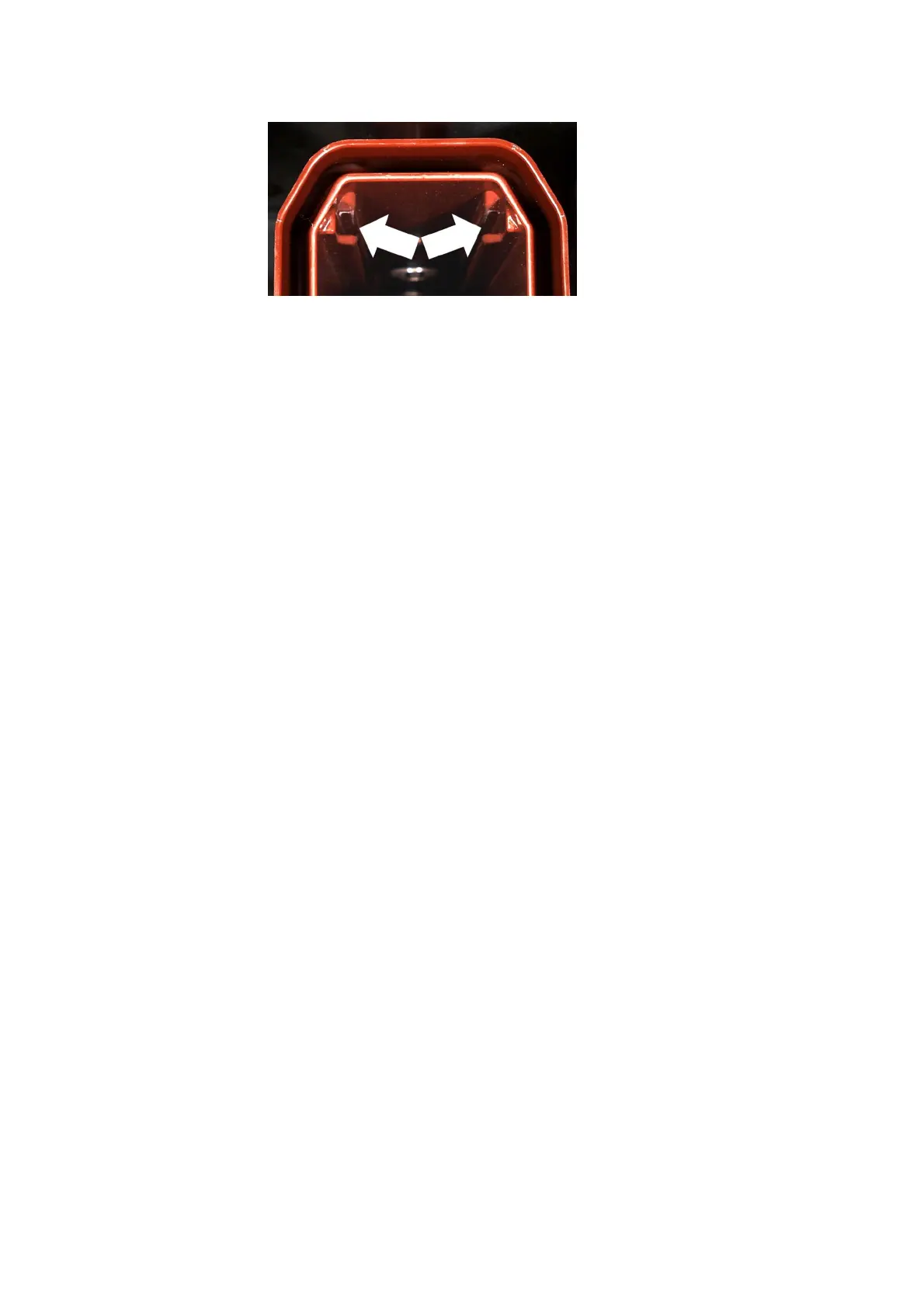

➭ Push the fuse slide with the HV HRC fuse-link into the fuse box as far as it will go.

➭ Push the unlocking lever of the cable compartment cover upwards and refit the cable

compartment cover.

➭ Push the interlock of the cable compartment cover downwards.

➭ Fasten the cable compartment cover using bolts with cutting ring.

➭ De-earth the feeder.
