Operation

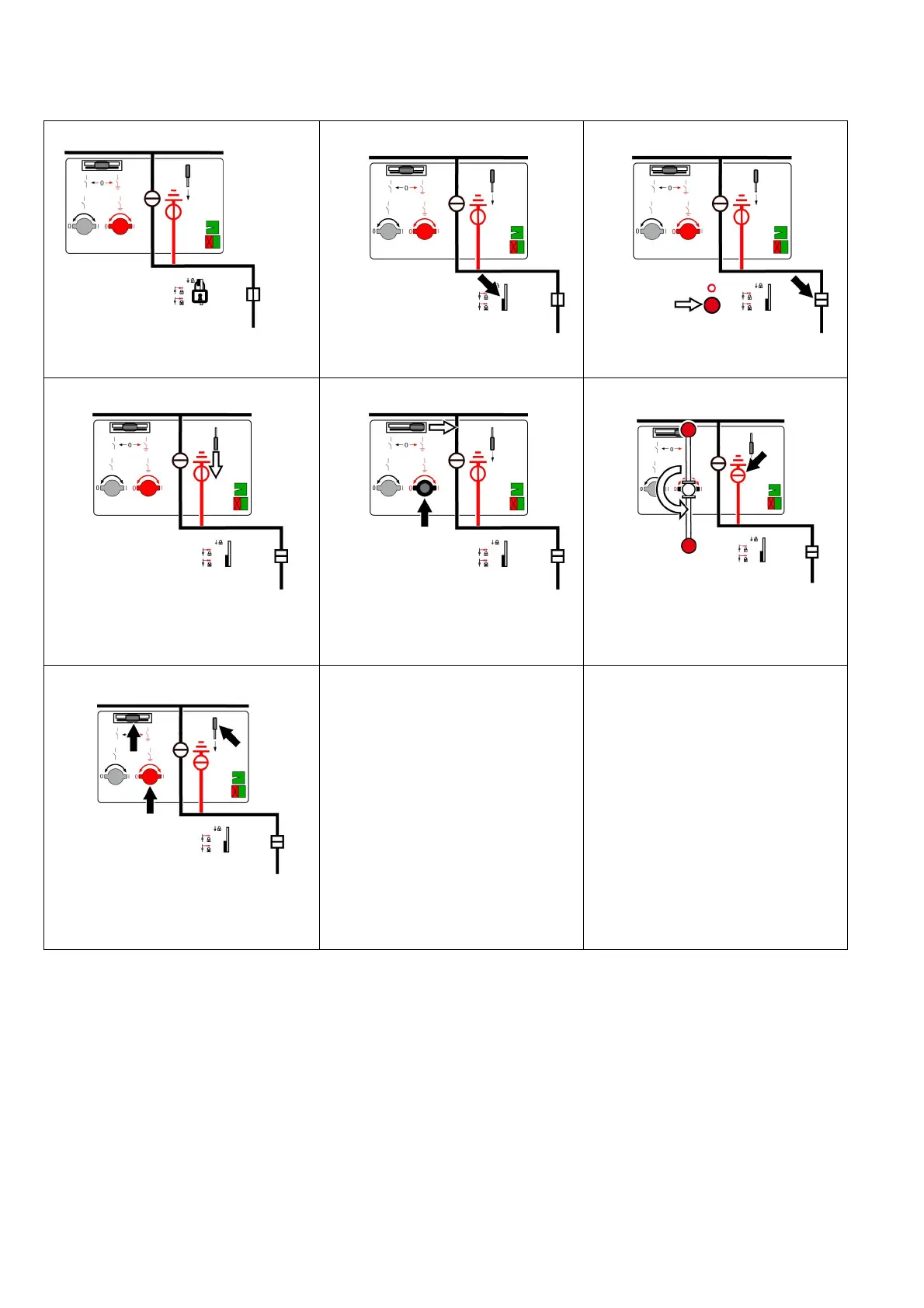

Circuit-breaker panel: De-earthing the feeder
1
Initial situation
2
➭ Remove the padlock (the locking device
goes down).
3
➭ To de-earth the feeder, open the circuit-
breaker.
4
➭ Push the interrogation lever downwards.
5
➭ Push the control gate to the right and hold
it (the interrogation lever locks in lower
position. The actuating opening for the
READY-TO-EARTH function opens).
6
➭ Switch the three-position disconnector
from READY-TO-EARTH to OPEN position
(insert the operating lever and turn 180°
counter-clockwise).
7
➭ Remove the operating lever (the
interrogation lever and the control gate
return to their initial position. The actuating
opening closes).
