Siemens NXPLUS C

Operation
224/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9

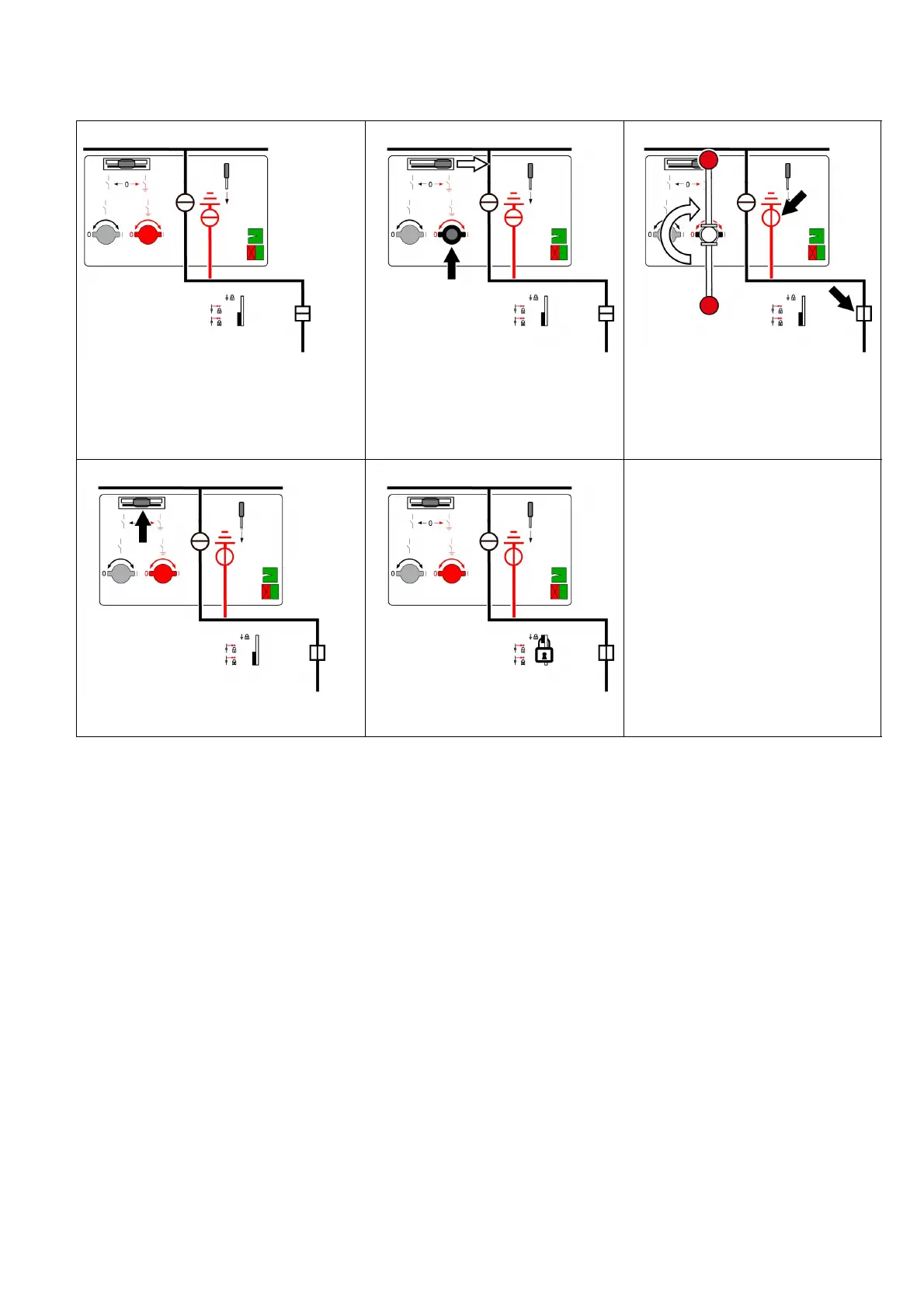

Circuit-breaker panel: Earthing the feeder with forced sequence circuit
1
Initial situation
2
➭ Push the control gate to the right and hold
it.
3
➭ Switch the three-position disconnector to
READY-TO-EARTH position (insert the
operating lever and turn 180° clockwise).
The circuit-breaker closes automatically
(time relay adjustable; factory setting:
1 s). The feeder is earthed.
4
➭ Remove the operating lever (the control gate
returns to its initial position).
5
➭ Push the locking device upwards and fit a
padlock.
