Operation

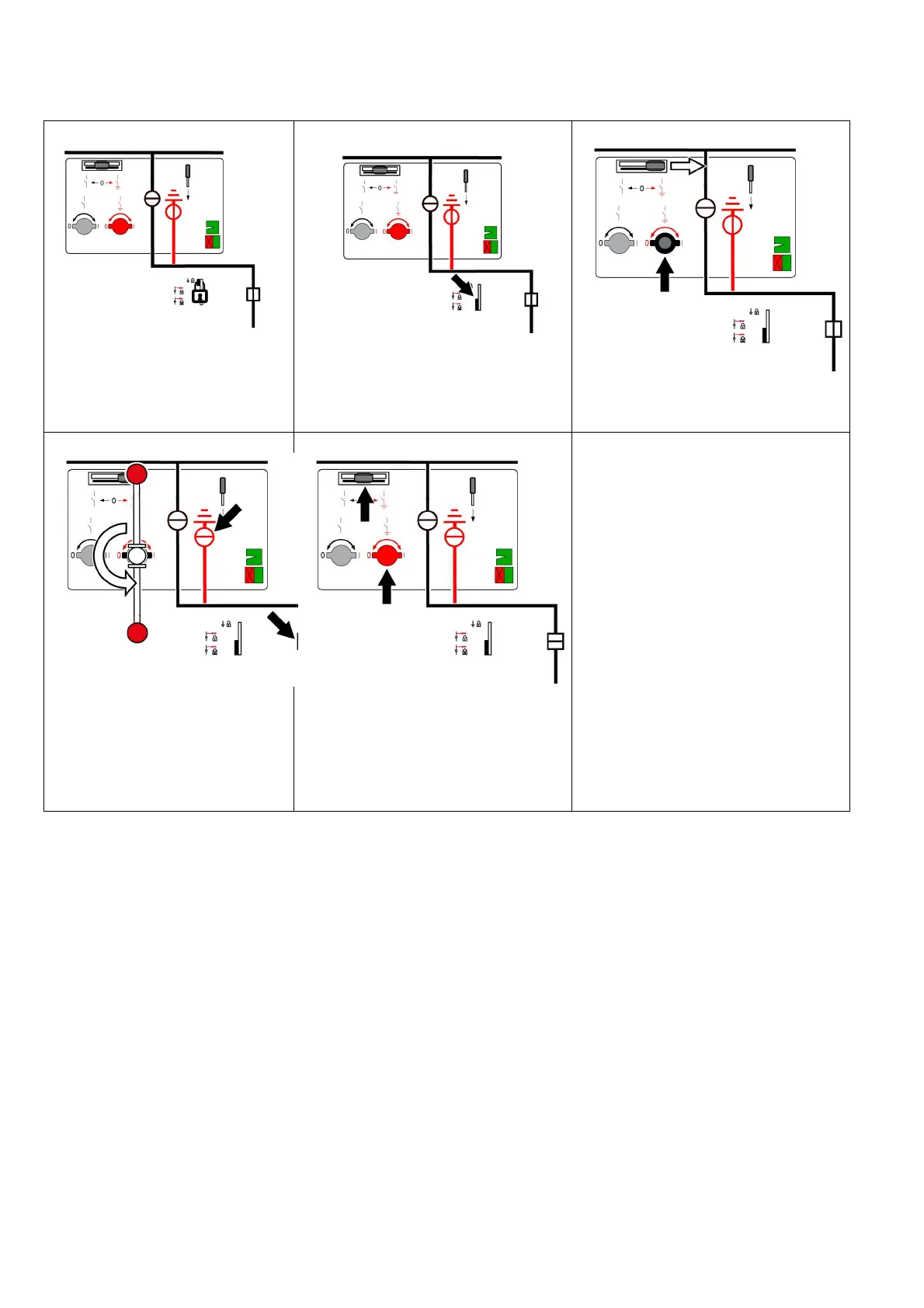

Circuit-breaker panel: De-earthing the feeder with forced sequence circuit
1
Initial situation
2
➭ Remove the padlock (the locking device goes
down).
3
➭ Push the control gate to the right and hold it
(the actuating opening for the READY-TO-
EARTH function opens).
4
➭ Switch the three-position disconnector
from READY-TO-EARTH to OPEN position
(turn operating lever 180° counter-
clockwise).
The circuit-breaker opens
automatically before the three-
position disconnector opens.
5
➭ Remove the operating lever (the control gate
returns to its initial position. The actuating
opening closes).
