Service information
270/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9

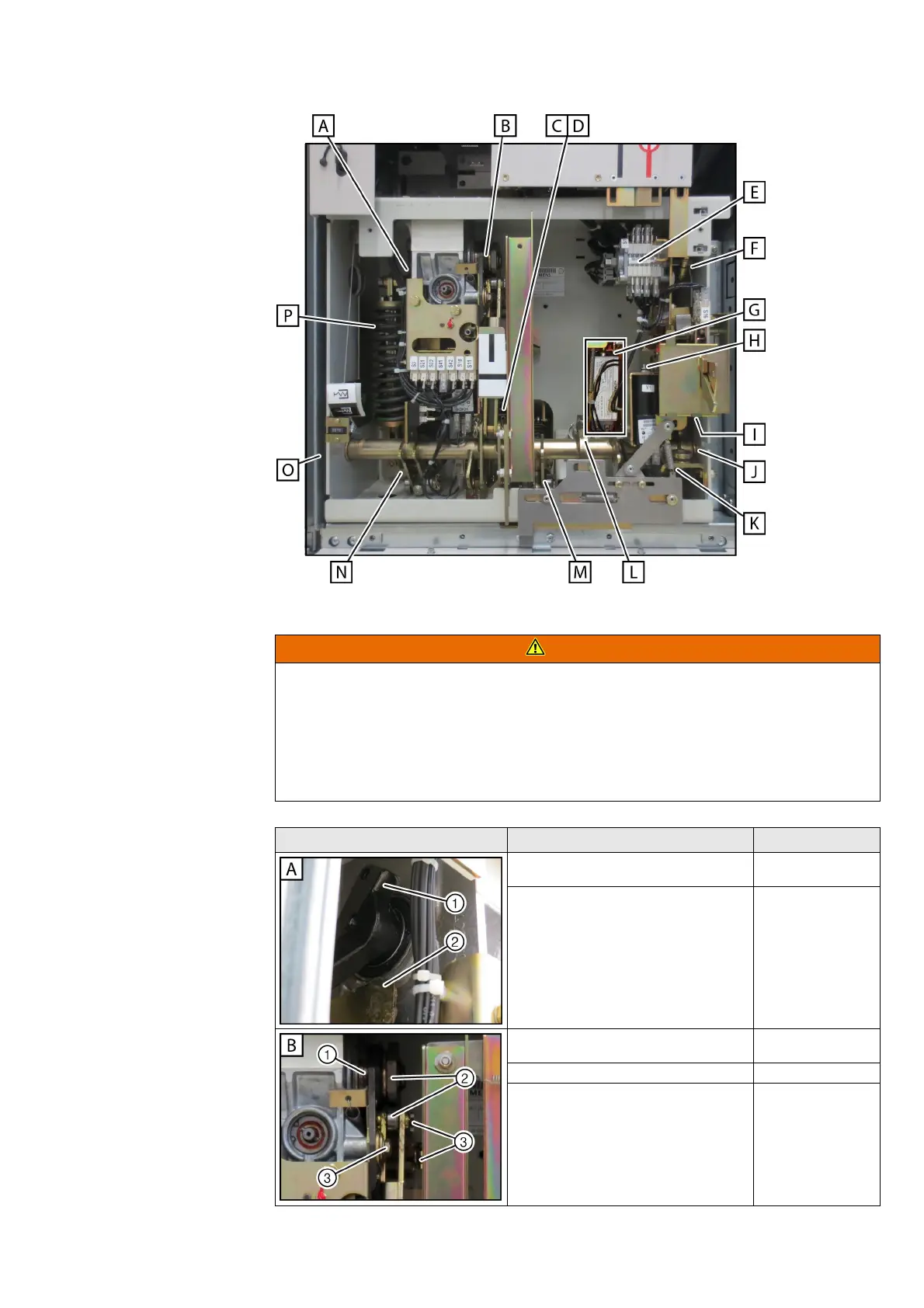

Lubrication chart for 3AH25
Fig. 180: Lubrication chart overview for operating mechanism 3AH25
WARNING
Charged operating springs
Can cause serious injury.
To lubricate some components, the operating springs must be charged.
➭ Do not reach into the operating mechanism compartment with your hands.
➭ Apply lubricant with a long brush.
➭ The operating springs must be uncharged after lubrication.
Detail view Component Lubricants
①
Apply grease to the crank pins for
pushbutton operation.
Isoflex Topas L32
②
Apply grease to the pushbutton
actuating plate.
Isoflex Topas L32
①
Apply grease to the closing and opening
latch.
Isoflex Topas L32
②
Apply grease to the curve contour. Isoflex Topas L32
③
Oil the bearing for the deflection lever. Shell Tellus Oil S2M32
