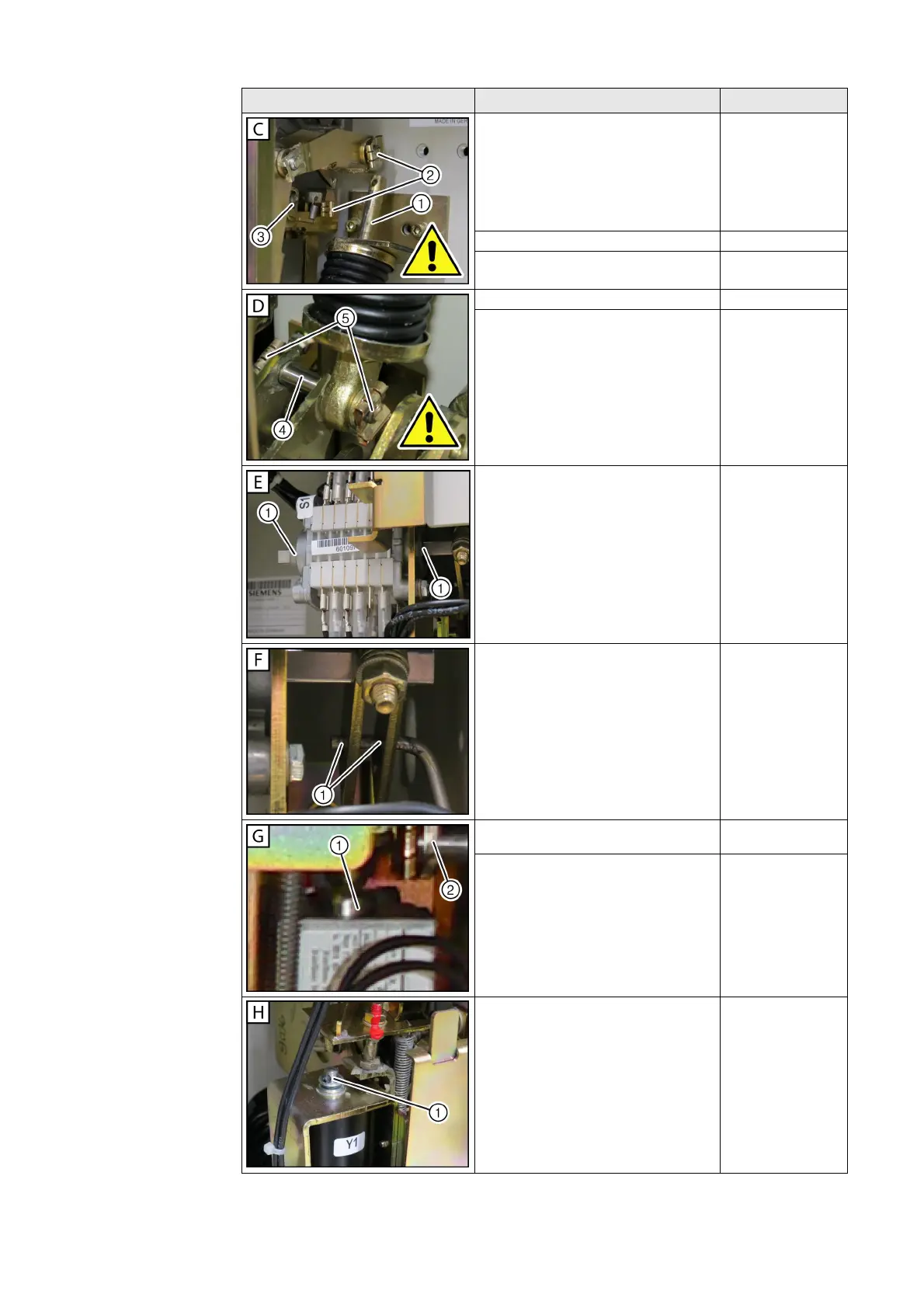

802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 271/293
Service information
①
Apply grease to the guide of the opening
spring.
Precondition: Opening spring charged.
WARNING: Do not reach into the
operating mechanism compartment
with your hands when the operating
springs are charged.
Isoflex Topas L32
②
Oil the stud connections. Shell Tellus Oil S2M32
③
Oil the elongated hole. Shell Tellus Oil S2M32
④
Oil the bearing of the opening spring. Shell Tellus Oil S2M32
⑤
Oil the stud connections. Shell Tellus Oil S2M32
①
Oil the shaft of the auxiliary switch on
both sides.
Shell Tellus Oil S2M32
①
Apply grease to the deflection of the
auxiliary switch.
Isoflex Topas L32
①
Apply grease to the contact surface
between release and bolt.
Isoflex Topas L32
②
Oil the contact surfaces between second/
third release and bolt connections.
Shell Tellus Oil S2M32
①
Apply grease to the plunger at the
operating solenoid.
Isoflex Topas L32
Detail view Component Lubricants
